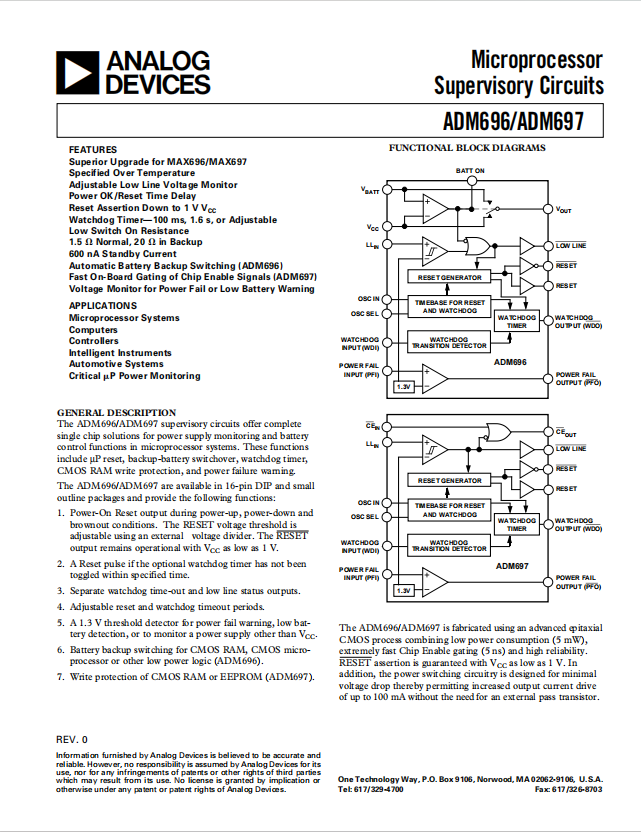

Product Features
Superior Upgrade for MAX696/MAX697
Specified Over Temperature
Adjustable Low Line Voltage Monitor
Power OK/Reset Time Delay
Reset Assertion Down to 1 V VCC
Watchdog Timer—100 ms, 1.6 s, or Adjustable
Low Switch On Resistance
1.5 V Normal, 20 V in Backup
600 nA Standby Current
Automatic Battery Backup Switching (ADM696)
Fast On-Board Gating of Chip Enable Signals (ADM697)
Voltage Monitor for Power Fail or Low Battery Warning
APPLICATIONS
Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Automotive Systems
Critical mP Power Monitoring

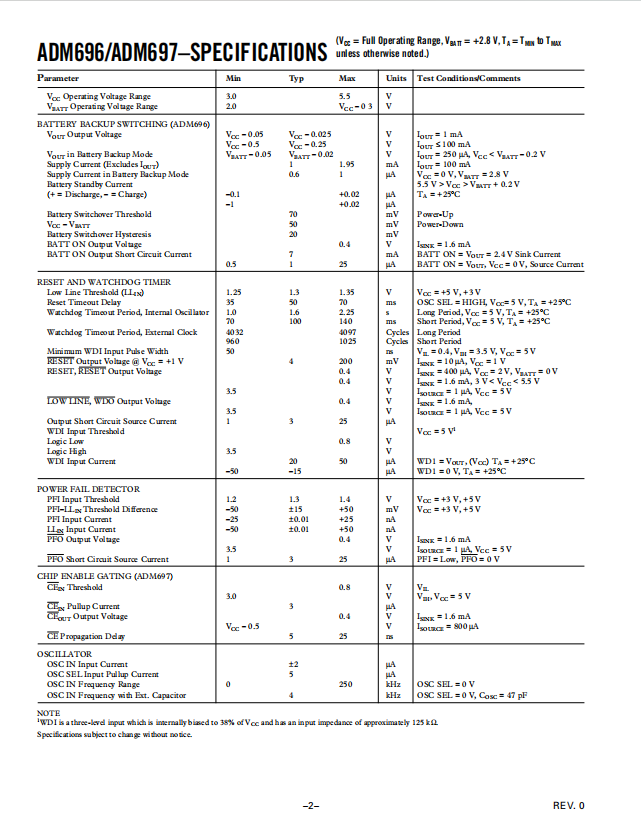

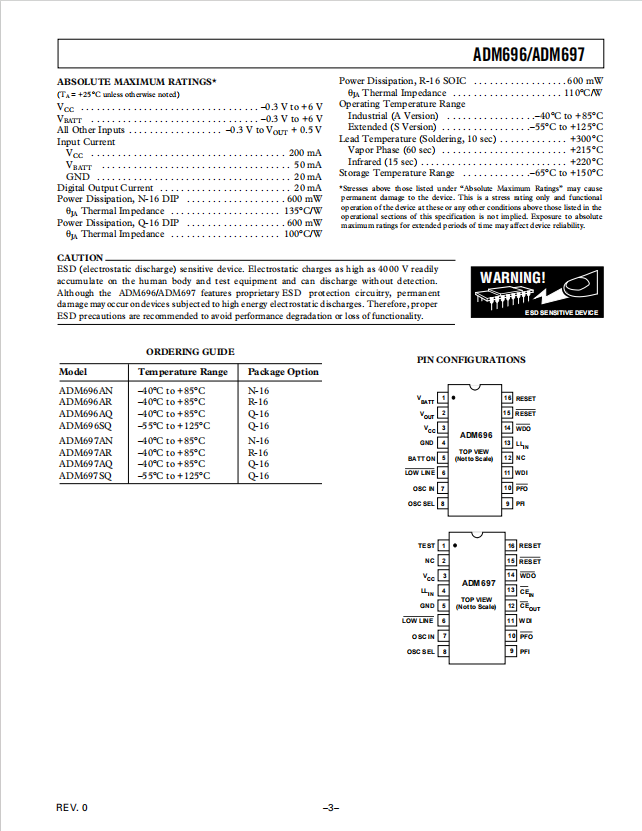

Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADM697AR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Original |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Type | Battery Backup Circuit |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 1.3V |
| Output | Push-Pull, Push-Pull |
| Reset | Active High/Active Low |
| Reset Timeout | 35ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADM697 |
