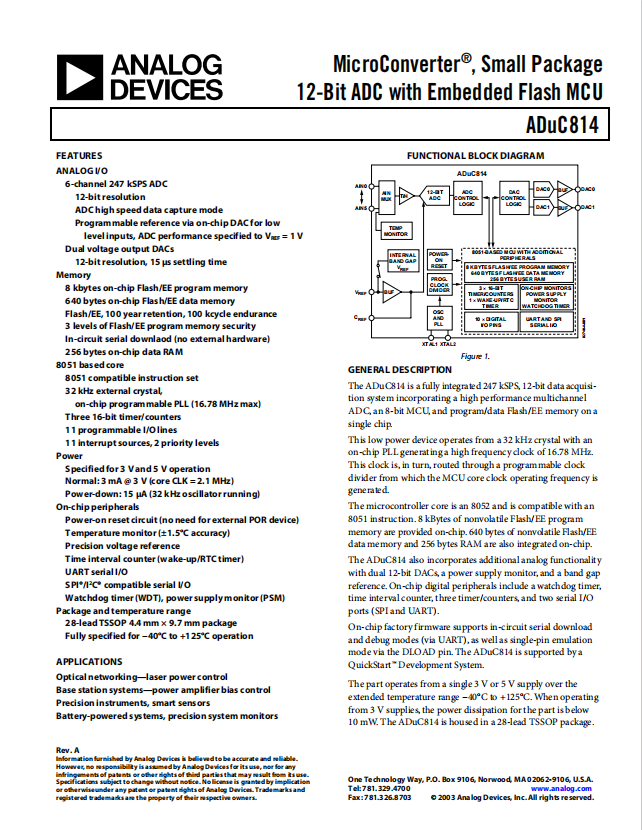

Product Features
ANALOG I/O
6-channel 247 kSPS ADC
12-bit resolution
ADC high speed data capture mode
Programmable reference via on-chip DAC for low
level inputs, ADC performance specified to VREF = 1 V
Dual voltage output DACs
12-bit resolution, 15 μs settling time
Memory
8 kbytes on-chip Flash/EE program memory
640 bytes on-chip Flash/EE data memory
Flash/EE, 100 year retention, 100 kcycle endurance
3 levels of Flash/EE program memory security
In-circuit serial downlaod (no external hardware)
256 bytes on-chip data RAM
8051 based core
8051 compatible instruction set
32 kHz external crystal,
on-chip programmable PLL (16.78 MHz max)
Three 16-bit timer/counters
11 programmable I/O lines
11 interrupt sources, 2 priority levels Power
Specified for 3 V and 5 V operation
Normal: 3 mA @ 3 V (core CLK = 2.1 MHz)
Power-down: 15 μA (32 kHz oscillator running)
On-chip peripherals
Power-on reset circuit (no need for external POR device)
Temperature monitor (±1.5°C accuracy)
Precision voltage reference
Time interval counter (wake-up/RTC timer)
UART serial I/O
SPI?/I2C? compatible serial I/O
Watchdog timer (WDT), power supply monitor (PSM)
Package and temperature range
28-lead TSSOP 4.4 mm × 9.7 mm package
Fully specified for ?40°C to +125°C operation
Product Applications
Optical networking—laser power control
Base station systems—power amplifier bias control
Precision instruments, smart sensors
Battery-powered systems, precision system monitors
Specifications
| Attribute | Attribute value |

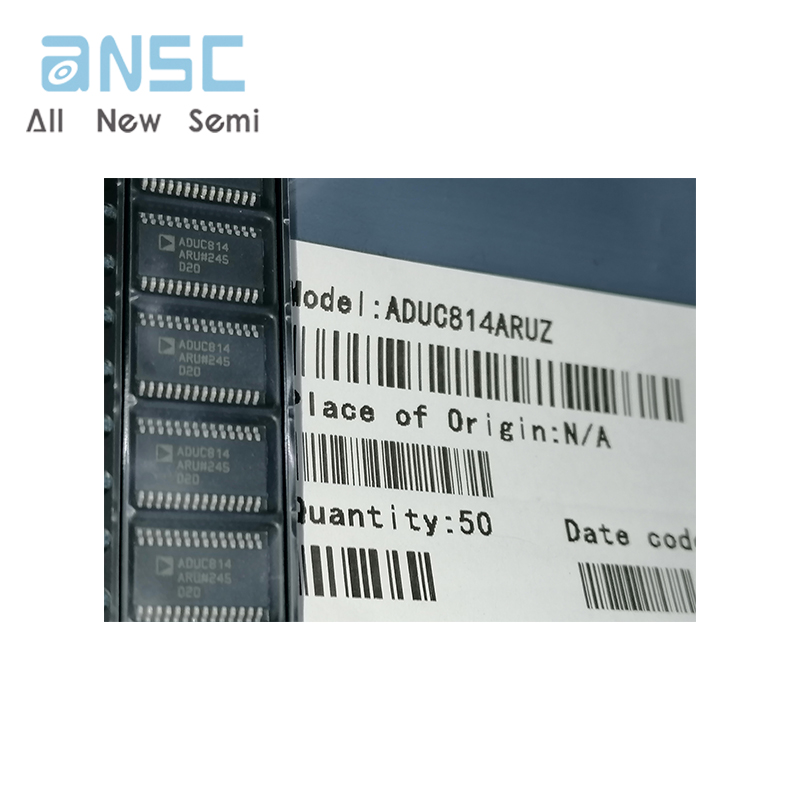

| ANSM-Part# | ANSM-ADUC814ARUZ |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Original |
| Series | MicroConverter? ADuC8xx |
| Package | Tube |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | 8052 |
| Core Size | 8-Bit |
| Speed | 16.78MHz |
| Peripherals | POR, PSM, Temp Sensor, WDT |
| Number of I/O | 17 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 640 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 6x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | ADUC814 |
