Product Descriptions

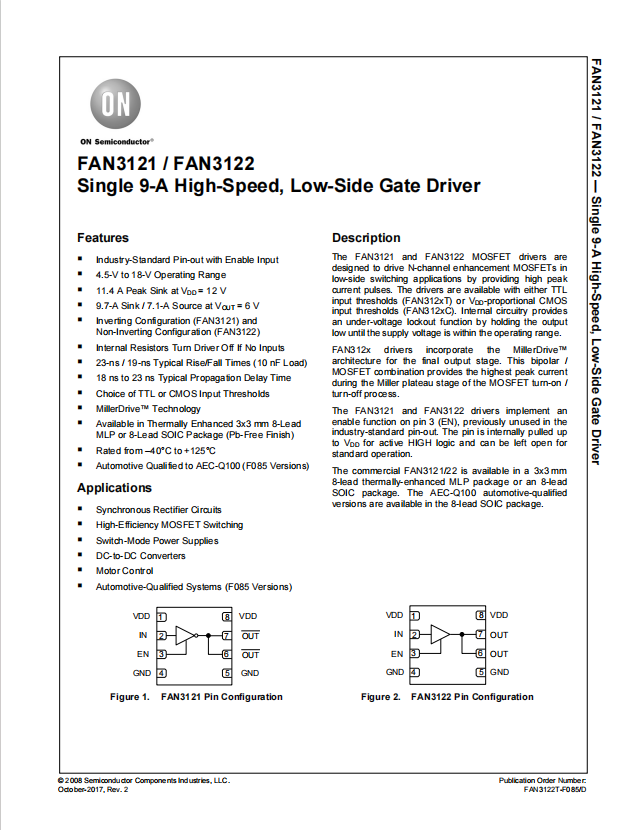

The FAN3121 and FAN3122 MOSFET drivers are designed to drive N-channel enhancement MOSFETs in low-side switching applications by providing high peak current pulses. The drivers are available with either TTL input thresholds (FAN312xT) or VDD-proportional CMOS input thresholds (FAN312xC). Internal circuitry provides an under-voltage lockout function by holding the output low until the supply voltage is within the operating range. FAN312x drivers incorporate the MillerDrive? architecture

for the final output stage. This bipolar / MOSFET combination provides the highest peak current during the Miller plateau stage of the MOSFET turn-on / turn-off process.

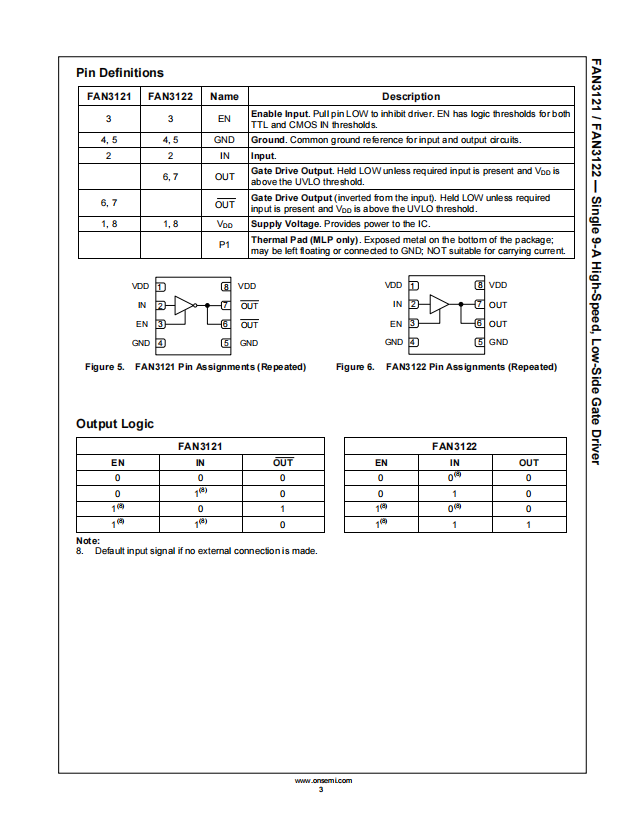

The FAN3121 and FAN3122 drivers implement an enable function on pin 3 (EN), previously unused in the industry-standard pin-out. The pin is internally pulled up to VDD for active HIGH logic and can be left open for standard operation.

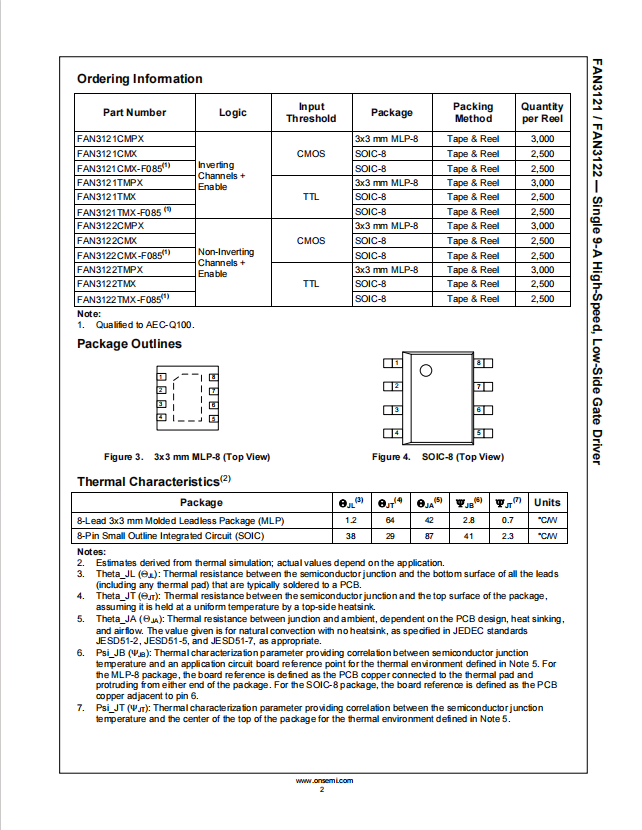

The commercial FAN3121/22 is available in a 3x3 mm 8-lead thermally-enhanced MLP package or an 8-lead SOIC package. The AEC-Q100 automotive-qualified versions are available in the 8-lead SOIC package.

Product Features

? Industry-Standard Pin-out with Enable Input

? 4.5-V to 18-V Operating Range

? 11.4 A Peak Sink at VDD = 12 V

? 9.7-A Sink / 7.1-A Source at VOUT = 6 V

? Inverting Configuration (FAN3121) and Non-Inverting Configuration (FAN3122)

? Internal Resistors Turn Driver Off If No Inputs

? 23-ns / 19-ns Typical Rise/Fall Times (10 nF Load)

? 18 ns to 23 ns Typical Propagation Delay Time

? Choice of TTL or CMOS Input Thresholds

? MillerDrive? Technology

? Available in Thermally Enhanced 3x3 mm 8-Lead MLP or 8-Lead SOIC Package (Pb-Free Finish)

? Rated from –40°C to +125°C

? Automotive Qualified to AEC-Q100 (F085 Versions)

Product Applications

? Synchronous Rectifier Circuits

? High-Efficiency MOSFET Switching

? Switch-Mode Power Supplies

? DC-to-DC Converters

? Motor Control

? Automotive-Qualified Systems (F085 Versions)
