Product Features

■ Temperature Compensated Internal Schottky Diode RF Detector

■ Wide Input Frequency Range: 300MHz to 7GHz*

■ Wide Input Power Range: –32dBm to 10dBm

■ Buffered Detector Output

■ Precision VOUT Offset Control

■ Wide VCC Range of 2.7V to 6V

■ Low Operating Current: 500μA

■ Low Shutdown Current: <2μA

■ Available in a Low Profile (1mm) SOT-23 Package

Product Applications

■ 802.11a, 802.11b, 802.11g, 802.15, 802.16

■ Multimode Mobile Phone Products

■ Optical Data Links

■ Wireless Data Modems

■ Wireless and Cable Infrastructure

■ RF Power Alarm

■ Envelope Detector

Product Description

The LTC?5531 is an RF power detector for RF applications operating in the 300MHz to 7GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small ThinSOTTM package. The supply voltage range

is optimized for operation from a single lithium-ion cell or 3xNiMH.

The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the VOUT pin. A power saving shutdown mode reduces current to less than 2μA. The initial offset voltage of 120mV ±35mV can be

precisely adjusted using the VOS pin.

The LTC5531 operates with input power levels from –32dBm to 10dBm.

Specifications

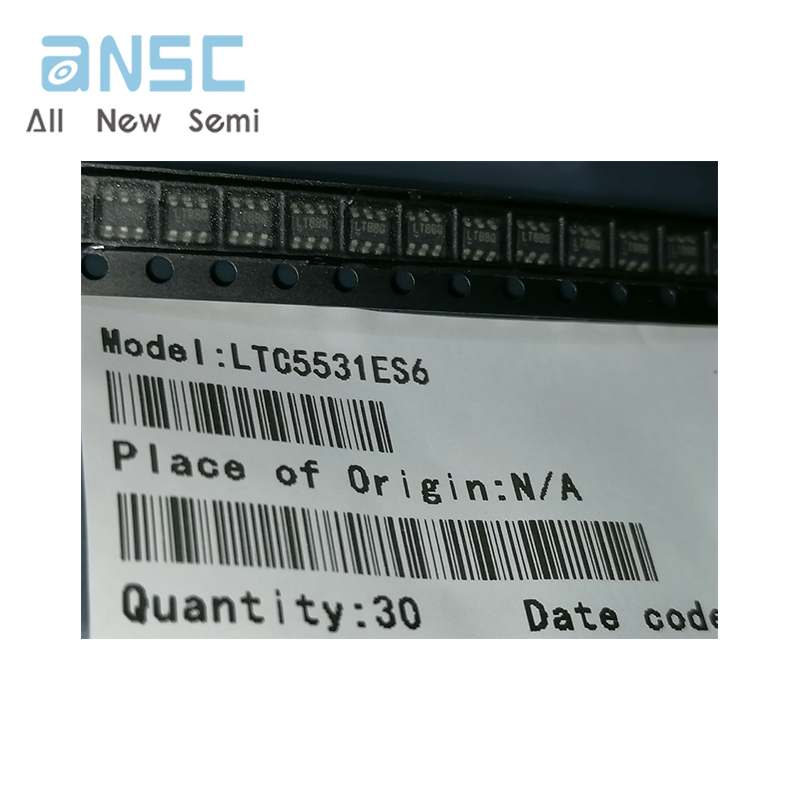

Actual product photos
