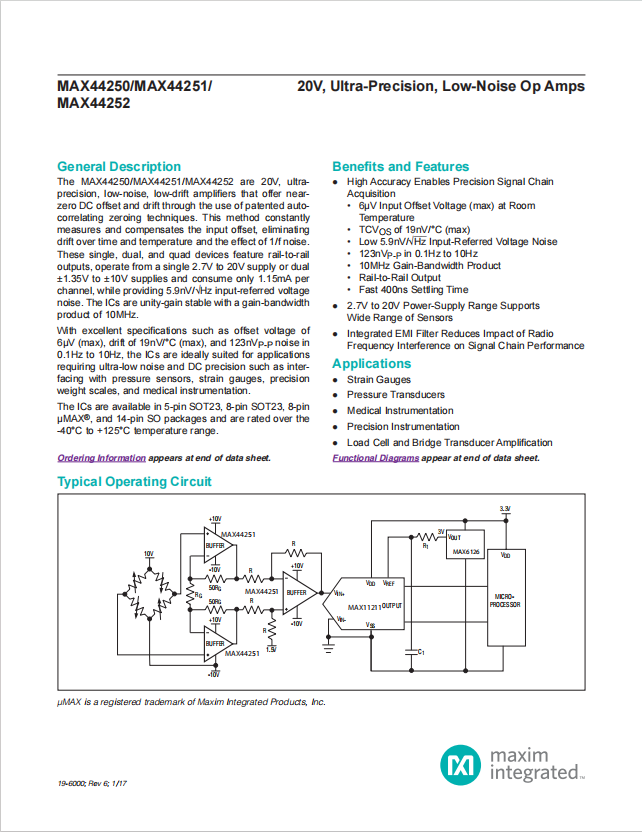

Product Descriptions
The MAX44250/MAX44251/MAX44252 are 20V, ultraprecision, low-noise, low-drift amplifiers that offer nearzero DC offset and drift through the use of patented autocorrelating zeroing techniques. This method constantly measures and compensates the input offset, eliminating drift over time and temperature and the effect of 1/f noise.
These single, dual, and quad devices feature rail-to-rail outputs, operate from a single 2.7V to 20V supply or dual ±1.35V to ±10V supplies and consume only 1.15mA per channel, while providing 5.9nV/√Hz input-referred voltage noise. The ICs are
unity-gain stable with a gain-bandwidth product of 10MHz.
With excellent specifications such as offset voltage of 6μV (max), drift of 19nV/°C (max), and 123nVP-P noise in 0.1Hz to 10Hz, the ICs are ideally suited for applications requiring ultra-low noise and DC precision such as interfacing with pressure
sensors, strain gauges, precision weight scales, and medical instrumentation.
The ICs are available in 5-pin SOT23, 8-pin SOT23, 8-pin μMAX?, and 14-pin SO packages and are rated over the -40°C to +125°C temperature range.
Product FEATURES
● High Accuracy Enables Precision Signal Chain Acquisition
? 6μV Input Offset Voltage (max) at Room Temperature
? TCVOS of 19nV/°C (max)
? Low 5.9nV/√Hz Input-Referred Voltage Noise
? 123nVP-P in 0.1Hz to 10Hz
? 10MHz Gain-Bandwidth Product
? Rail-to-Rail Output
? Fast 400ns Settling Time
● 2.7V to 20V Power-Supply Range Supports Wide Range of Sensors
● Integrated EMI Filter Reduces Impact of Radio Frequency Interference on Signal Chain Performance
Product Applications
● Strain Gauges
● Pressure Transducers
● Medical Instrumentation
● Precision Instrumentation
● Load Cell and Bridge Transducer Amplification Functional Diagrams appear at end of data sheet.

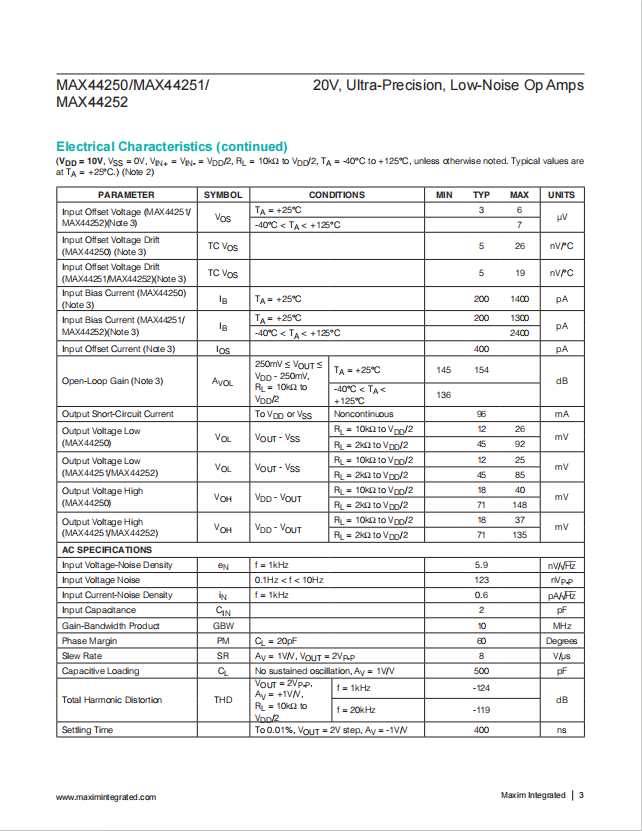

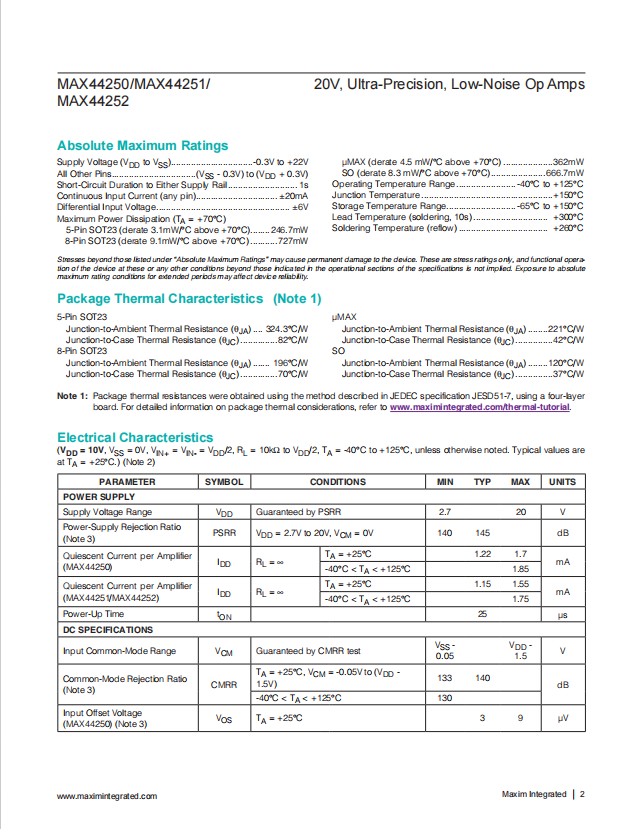

Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX44250AUK+T |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 8V/μs |
| Gain Bandwidth Product | 10 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 3 μV |
| Current - Supply | 1.22mA |
| Current - Output / Channel | 96 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 20 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | MAX44250 |

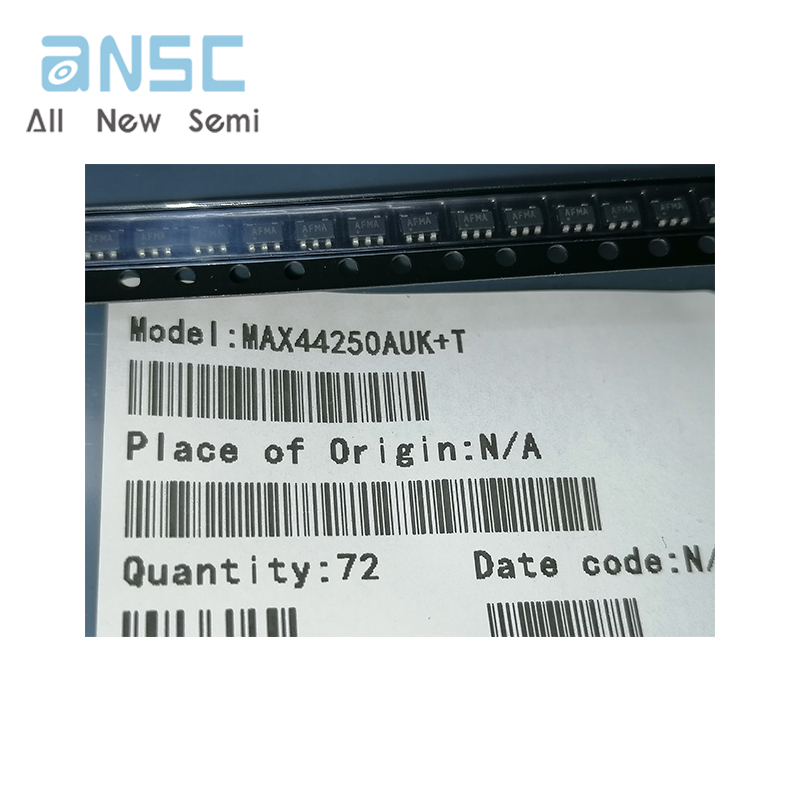

Actual product photos
