Product Descriptions
The NCV7608 integrates 8 output drivers configurable in any combination of high?side, low?side, or H?Bridge configurations. The integrated
standard Serial Peripheral Interface (SPI) allows digital control of all output stages and provides diagnostic fault information. In addition, four
channels (#5?8) can be PWM controlled via external control input pins.
Integrated clamping circuits (both in high and low?side operational modes), waveshaping, positive and negative transient protection, and
dedicated channel pair overtemperature shutdown circuits provide for a wide range of automotive and industrial applications.
Product Features
? Eight Independent Configurable Drivers
? RDS(on) = 1.2 (typ @25°C)
? SPI Interface for Data Communication
? 16 Bit Frame Length, Daisy Chain Compatible
? 3.3 V/5 V Compatible
? Frame Detection
? PWM Inputs for 4 Outputs
? Ultra?low Standby Current
? Over Current Protection
? Characterized to AEC Q10X?12?REV A
? High?Side and Low?Side Flyback Protection
? Fault Repoting
? Undervoltage Lockout (VS and VCC)
? Overvoltage Shutdown (VS)
? Supports LED Loads
? Supports Cold Cranking Operation Down to 3 V
? Overtemperature Protection
? NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC?Q100 Qualified and PPAP Capable
? These are Pb?Free Devices
Product Typical Applications
? Automotive
? Industrial
? Relay Drive
? DC Motor Drive
? LED Drive
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NCV7608DQR2G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full Half-Bridge (H Bridge) Drivers | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Lamps, Relays |
| Interface | SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1.2Ohm |
| Current - Output / Channel | - |
| Current - Peak Output | 250mA |
| Voltage - Supply | 3.15V ~ 5.25V |
| Voltage - Load | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 36-SSOP-EP |
| Base Product Number | NCV7608 |

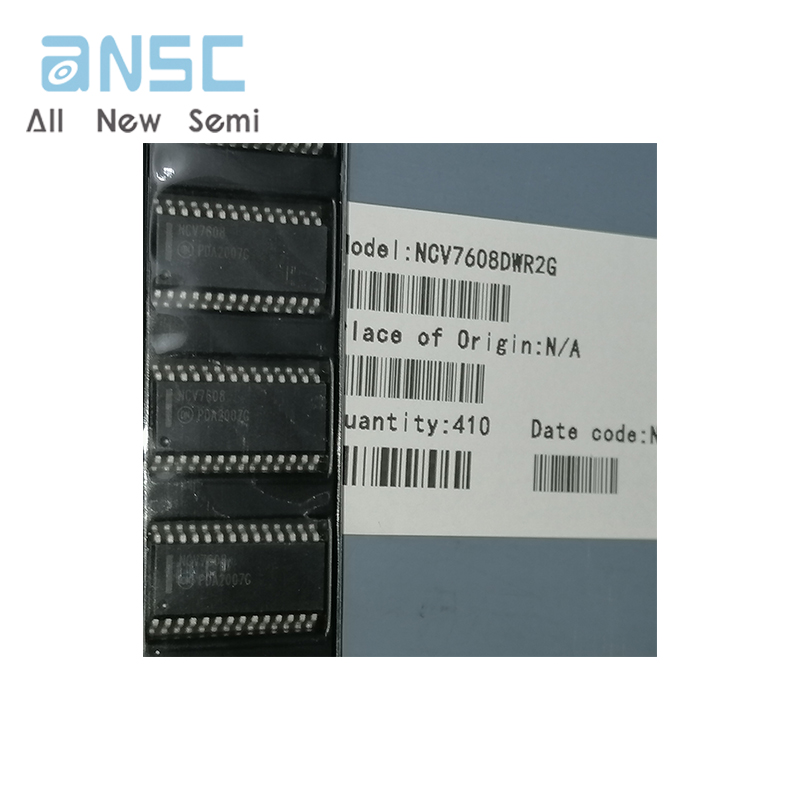

Actual product photos

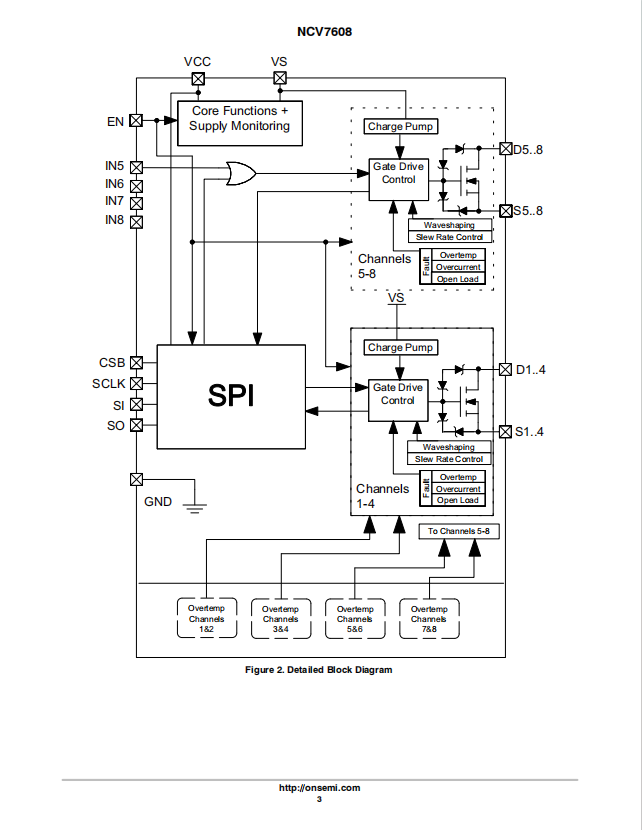

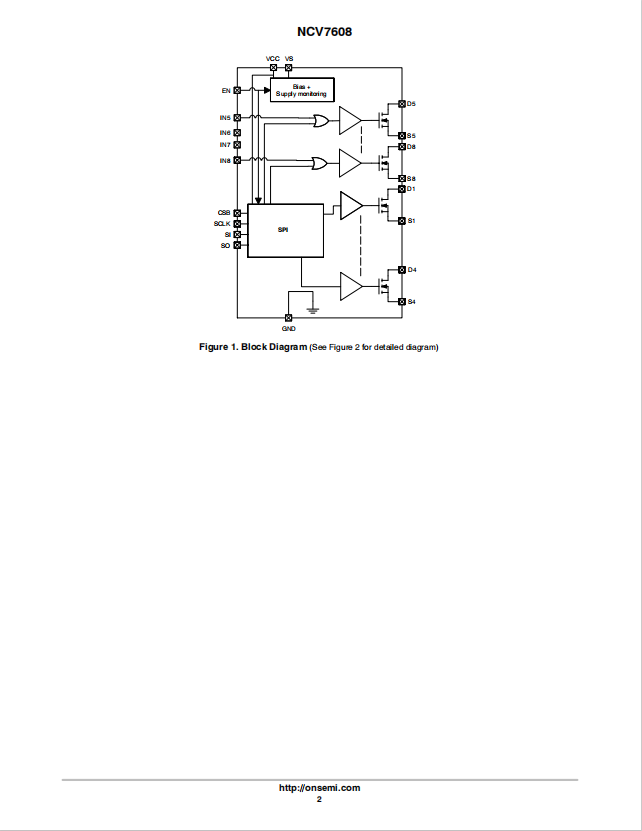

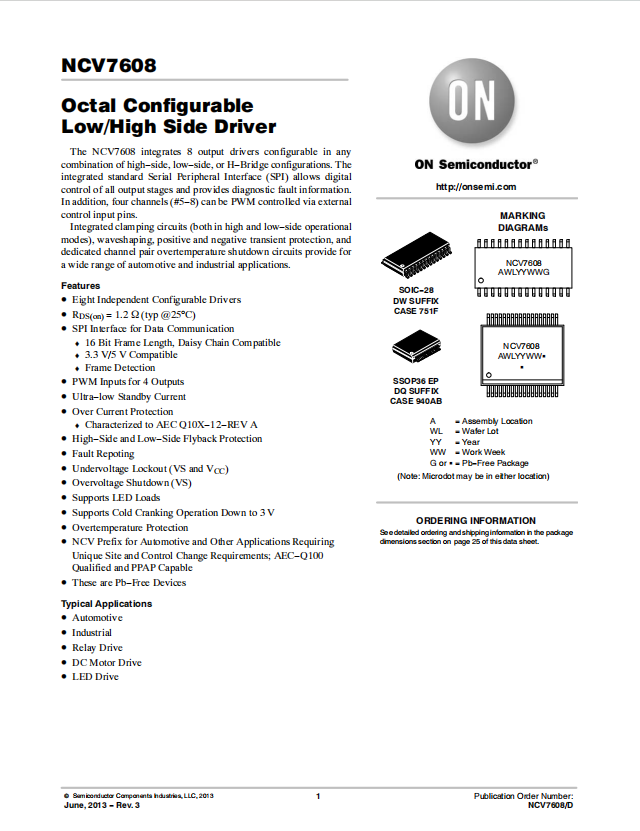

Product Data Book：
For more product information, please download the PDF
