Product Features
? Available in the Texas Instruments NanoFree? Package
? Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Supports Down Translation to VCC
? Max tpd of 6 ns at 3.3 V and 50 pF load
? Low Power Consumption, 10-μA Max ICC
? ±24-mA Output Drive at 3.3 V
? Ioff supports Partial-Power-Down Mode and BackDrive Protection
Product Applications
? Test and Measurement
? Enterprise Switching
? Telecom Infrastructure
? Personal Electronics
? White Goods
Product Descriptions
The SN74LVC1G79 device is a single positive-edgetriggered D-type flip-flop that is designed for 1.65-V to 5.5-V VCC operation.
When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock
pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output. NanoFree? package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LVC1G79DBVR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Clock Frequency | 160 MHz |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Iq) | 10 μA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74LVC1G79 |

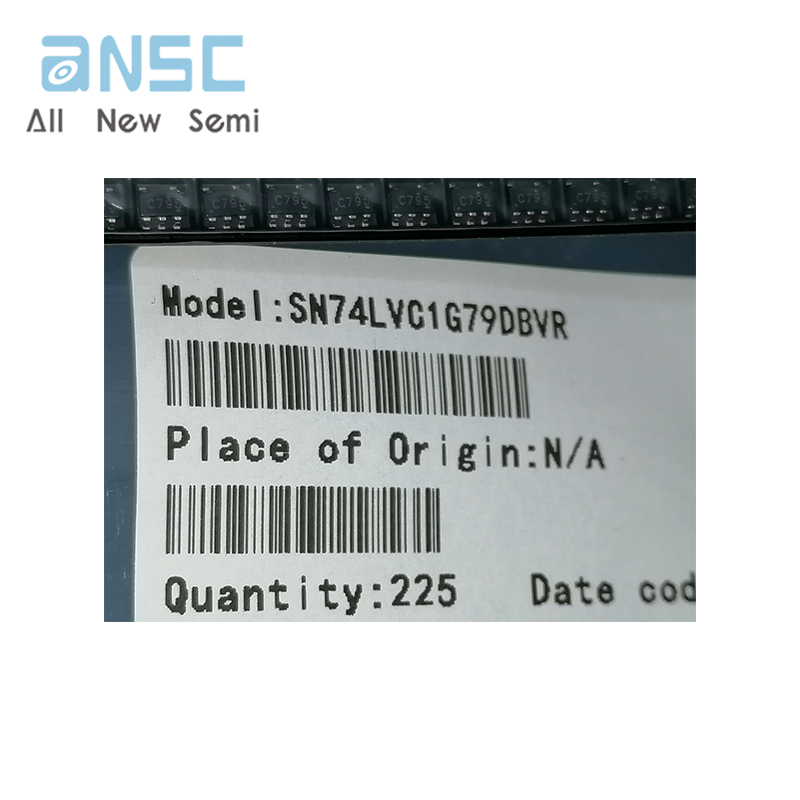

Actual product photos

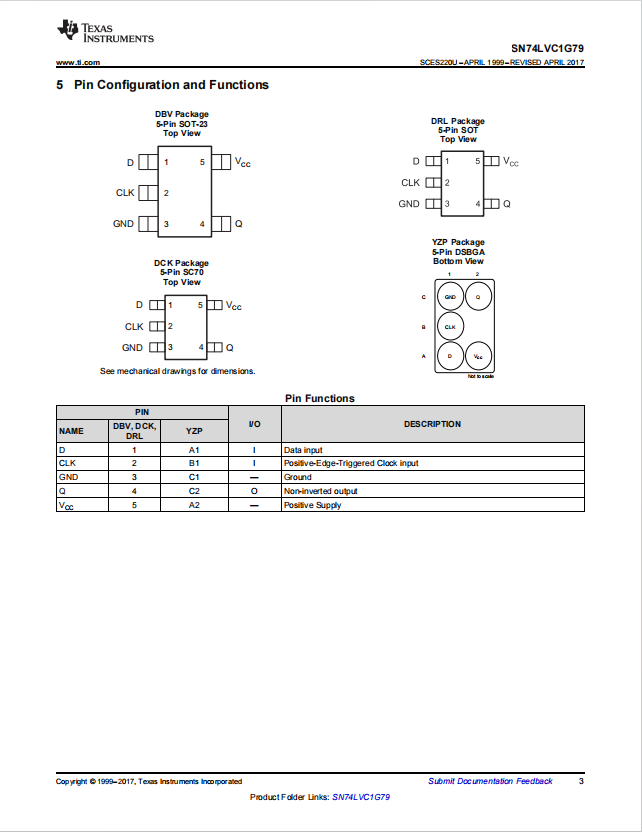

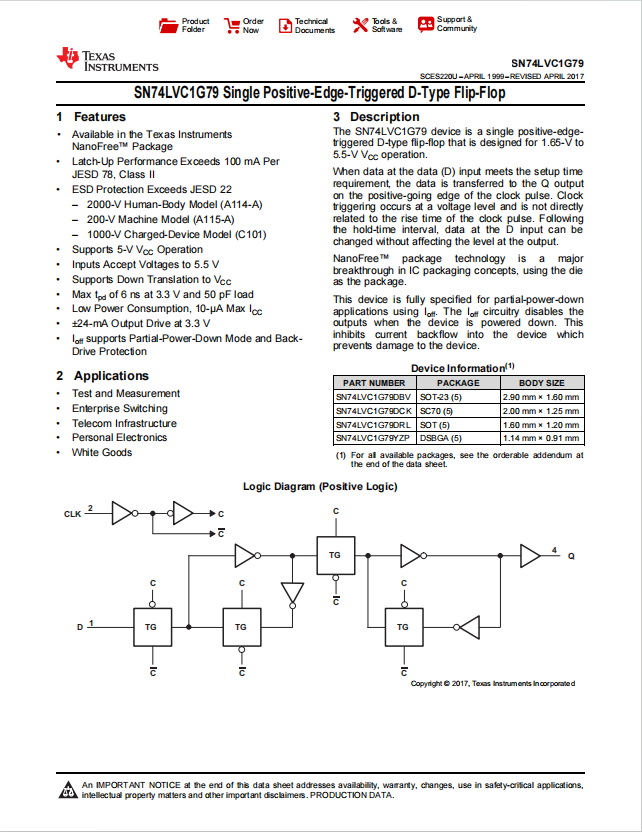

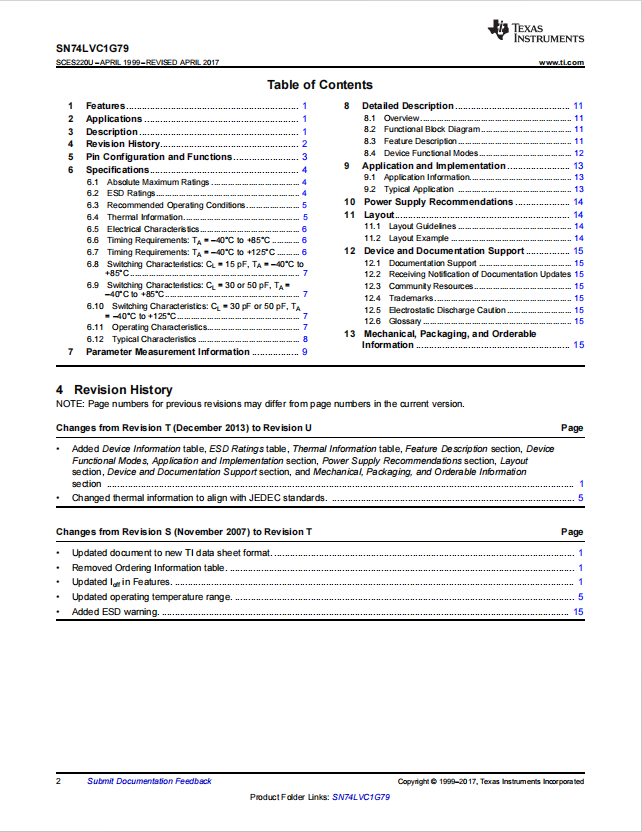

Product Data Book：
For more product information, please download the PDF
