Product Features
? Digital Visual Interface (DVI) Compliant(1)
? Supports Pixel Rates up to 165 MHz (Including 1080 p and WUXGA at 60 Hz)
? Universal Graphics Controller Interface
– 12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
– Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
– Fully Differential and Single-Ended Input Clocking Modes
– Standard Intel 12-Bit Digital Video Port Compatible as on Intel? 81x Chipsets
? Enhanced PLL Noise Immunity
– On-Chip Regulators and Bypass Capacitors for Reducing System Costs
? Enhanced Jitter Performance
– No HSYNC Jitter Anomaly
– Negligible Data-Dependent Jitter
? Programmable Using I2C Serial Interface
? Monitor Detection Through Hot-Plug and Receiver Detection
? Single 3.3-V Supply Operation
? 64-Pin TQFP Using TI’s PowerPAD? Package
? TI’s Advanced 0.18-μm EPIC-5? CMOS Process Technology
? Pin Compatible With SiI164 DVI Transmitter
(1) The digital visual interface (DVI) specification is an industry standard developed by the digital display working group (DDWG) for high-speed digital connection to digital displays and has been adopted by industry-leading PC and consumer
electronics manufacturers. The TFP410 is compliant to the DVI Revision 1.0 specification.
Product Applications
? DVD
? Blu-ray
? HD Projectors
? DVI/HDMI Transmitter(2)
(2) HDMI video-only
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TFP410PAP |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | PanelBus? |
| Package | Tray |
| Product Status | Active |
| Type | Driver |
| Protocol | - |
| Number of Drivers/Receivers | 3/0 |
| Duplex | - |
| Data Rate | - |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| Base Product Number | TFP410 |

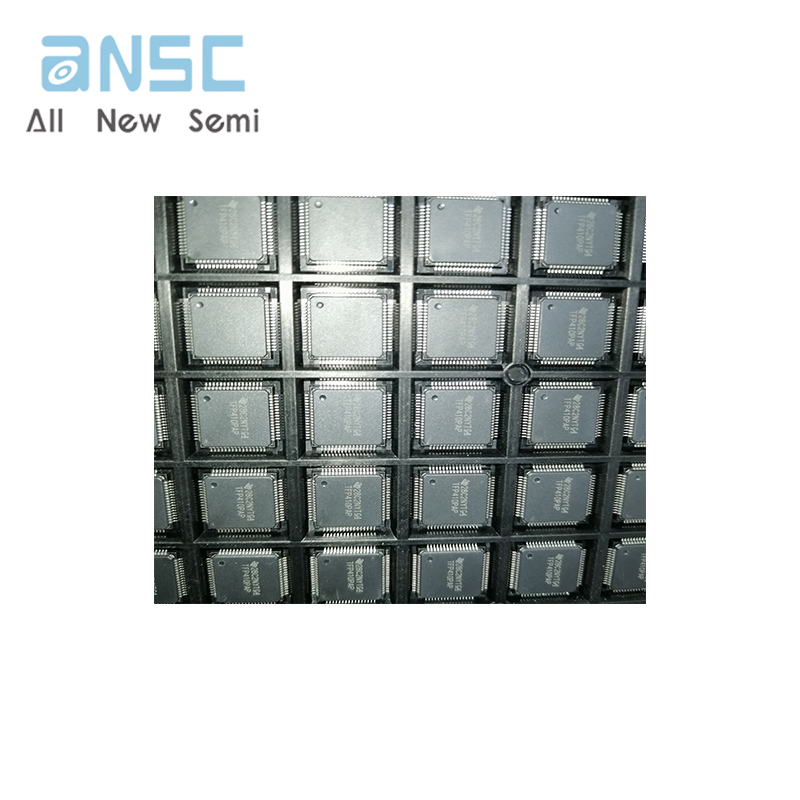

Actual product photos

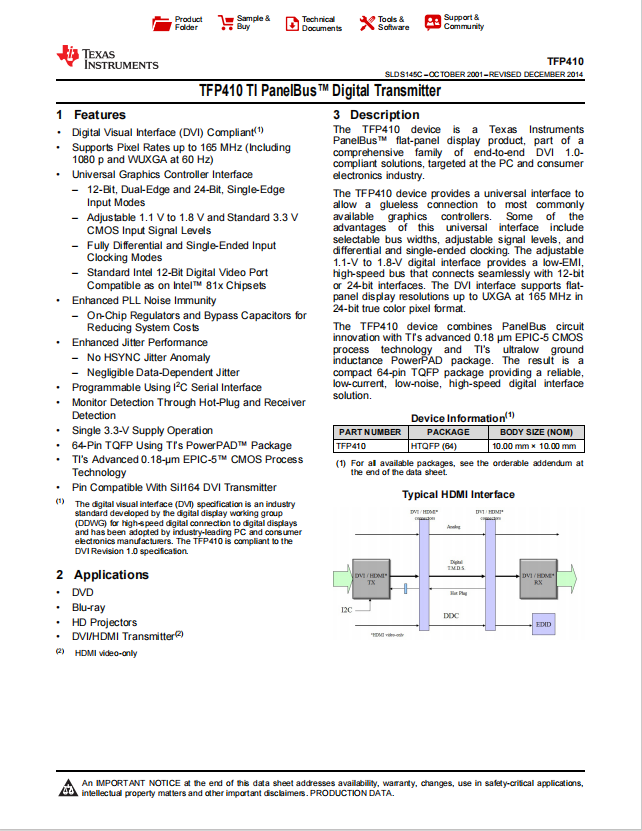

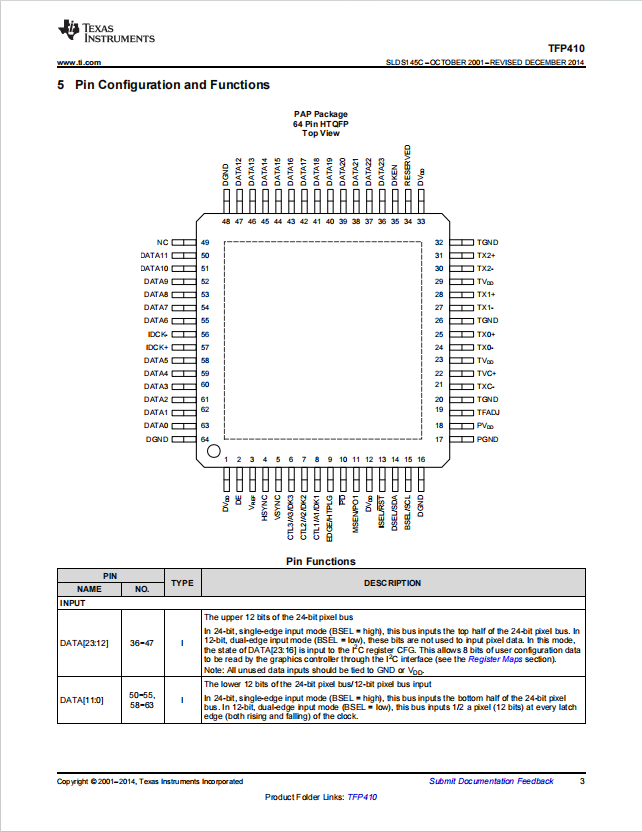

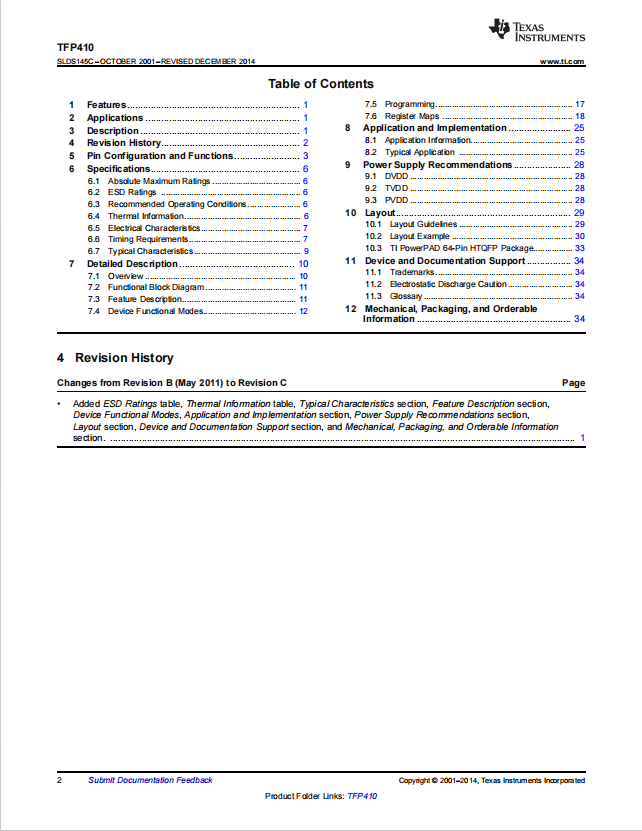

Product Data Book：
For more product information, please download the PDF
