Product Features
? Output voltage options: 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable
? Output current: 800 mA
? Specified dropout voltage at multiple current levels
? Line regulation maximum: 0.2 percent
? Load regulation maximum: 0.4 percent
? For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761
Product Applications
? Electronic points of sale
? Medical, health, and fitness applications
? Printers
? Appliances and white goods
? TV set-top boxes
Product Description
The TLV1117 is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The device is available in 1.5-V,
1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options.
All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800
mA, decreasing at lower load currents.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLV1117-50CDCY |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | TLV1117 |
Actual product photos

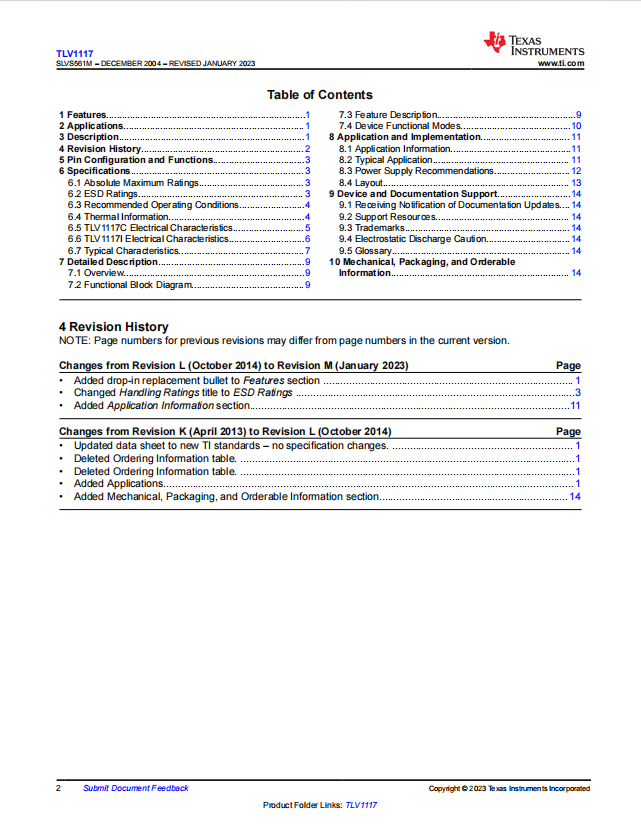

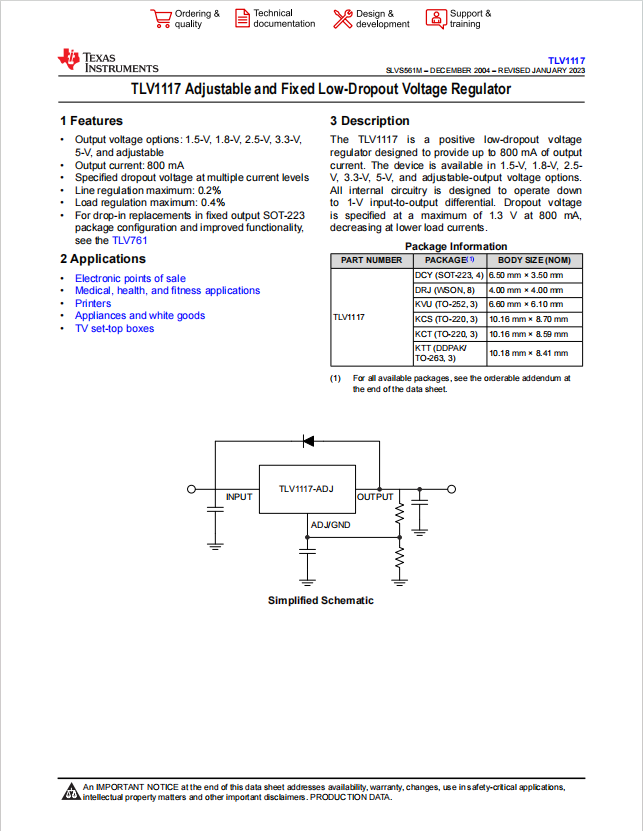

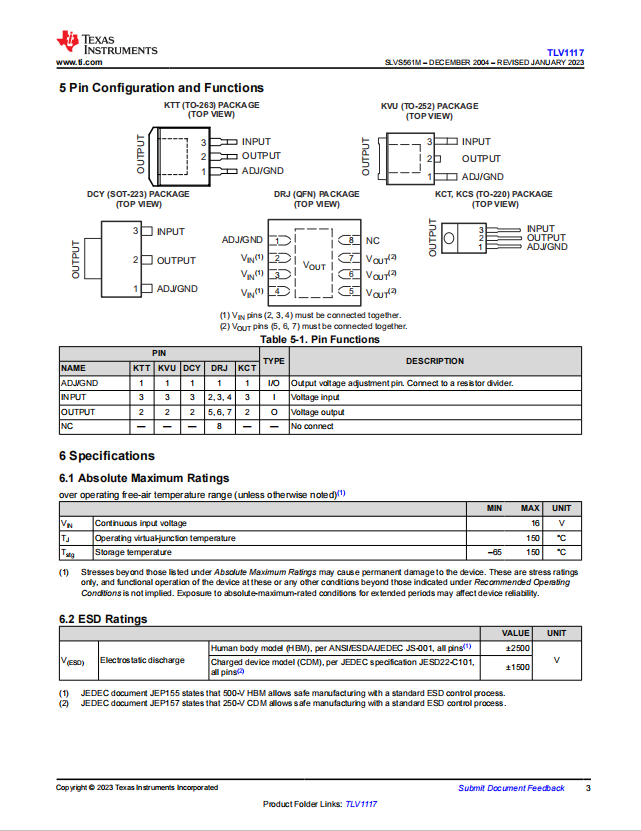

Product Data Book：
