Product Description
The TPS7A02 is an ultra-small, ultra-low quiescent current low-dropout linear regulator (LDO) that can source 200 mA with excellent transient
performance.
The TPS7A02, with an ultra-low IQ of 25 nA, is designed specifically for applications where very-low quiescent current is a critical parameter. This device maintains low IQ consumption even in dropout mode to further increase battery life. When in shutdown or disabled mode, the device
consumes ultra-low,3-nA IQ that helps increase the shelf life of the battery.
The TPS7A02 has an output range of 0.8 V to 5.0V available in 50-mV steps to support the lower core voltages of modern microcontrollers
(MCUs).
The TPS7A02 features a smart enable circuit with an internally controlled pulldown resistor that keeps the LDO disabled even when the EN pin is
left floating and helps minimize the external components used to pulldown the EN pin. This circuit also helps minimize the current drawn
through the external pulldown circuit when the device is enabled.
The TPS7A02 is fully specified for TJ = –40°C to +125°C operation.
Product Features
? Ultra-low IQ: 25 nA (typ), even in dropout
? Shutdown IQ: 3 nA (typ)
? Excellent transient response (1 mA to 50 mA)
– < 10-μs settling time
– 100-mV undershoot
? Packages:
– 1.0-mm × 1.0-mm X2SON
– SOT23-5
– 0.64-mm × 0.64-mm DSBGA
? Input voltage range: 1.5 V to 6.0 V
? Output voltage range: 0.8 V to 5.0 V (fixed)
? Output accuracy: 1.5% over temperature
? Smart enable pulldown
? Very low dropout:
– 270 mV (max) at 200 mA (VOUT = 3.3 V)
? Stable with a 1-μF or larger capacitor
Product Applications
? Wearables electronics
? Thermostats, smoke and heat detectors
? Gas, heat, and water meters
? Blood glucose monitors and pulse oximeters
? Residential circuit breakers and fault indicators
? Building security and video surveillance devices
? EPOS card readers
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TPS7A0218PDBVR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 60 nA |
| PSRR | 55dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS7A0218 |

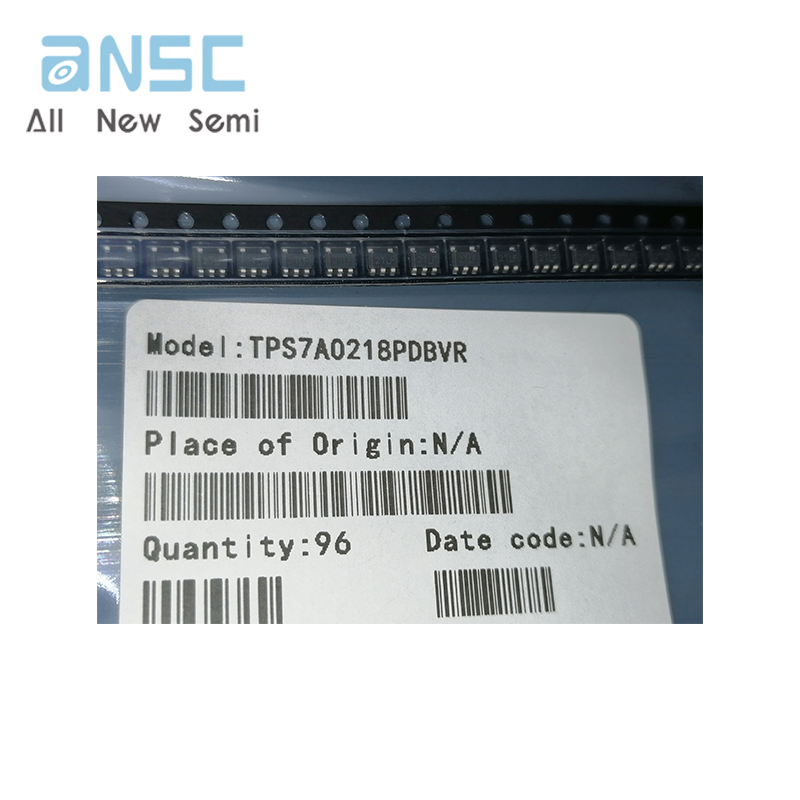

Actual product photos

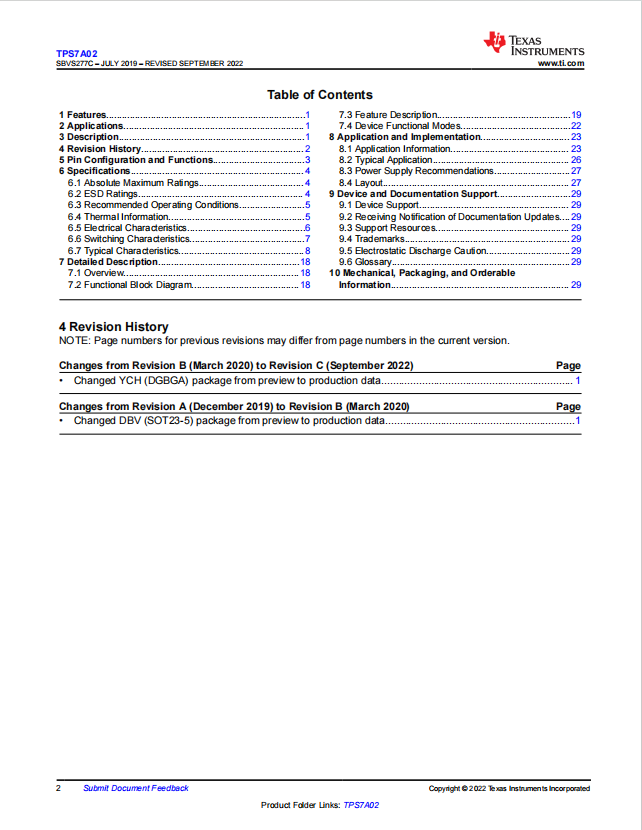

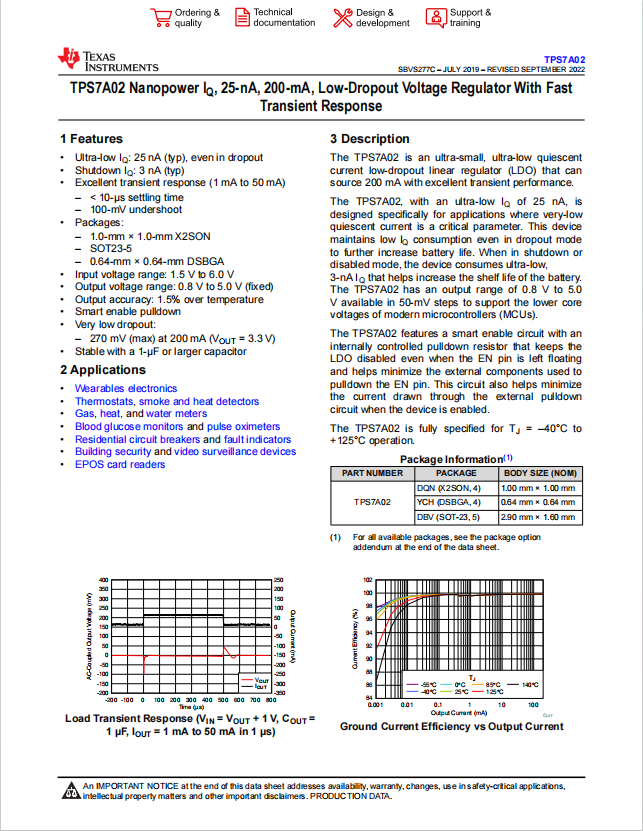

Product Data Book：
