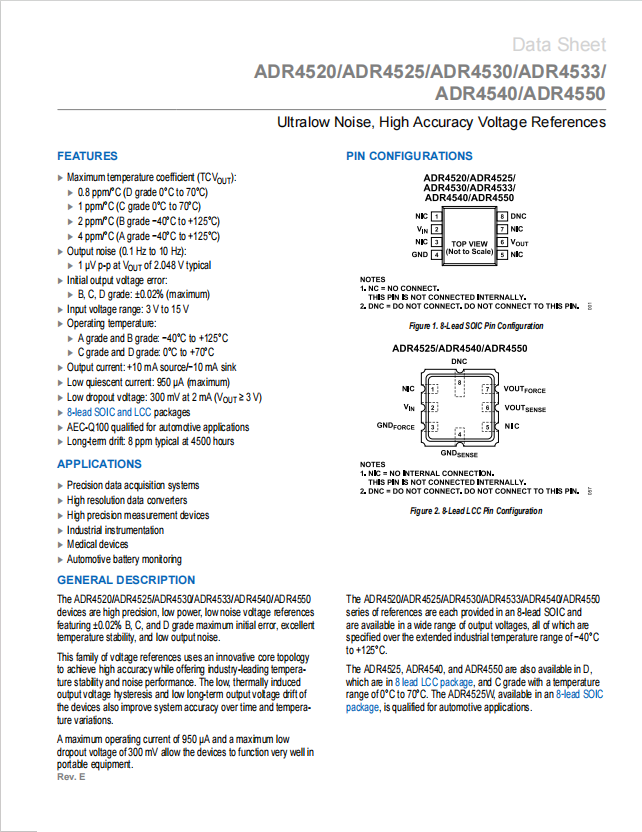

Product Description

The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 devices are high precision, low power, low noise voltage references featuring

±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.

This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.

A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in

portable equipment.

The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 series of references are each provided in an 8-lead SOIC and are available in a

wide range of output voltages, all of which are specified over the extended industrial temperature range of ?40°C to +125°C.

The ADR4525, ADR4540, and ADR4550 are also available in D, which are in 8 lead LCC package, and C grade with a temperature range of 0°C to

70°C. The ADR4525W, available in an 8?lead SOIC package, is qualified for automotive applications.

Product Features

? Maximum temperature coefficient (TCVOUT):

? 0.8 ppm/°C (D grade 0°C to 70°C)

? 1 ppm/°C (C grade 0°C to 70°C)

? 2 ppm/°C (B grade ?40°C to +125°C)

? 4 ppm/°C (A grade ?40°C to +125°C)

? Output noise (0.1 Hz to 10 Hz):

? 1 μV p-p at VOUT of 2.048 V typical

? Initial output voltage error:

? B, C, D grade: ±0.02% (maximum)

? Input voltage range: 3 V to 15 V

? Operating temperature:

? A grade and B grade: ?40°C to +125°C

? C grade and D grade: 0°C to +70°C

? Output current: +10 mA source/?10 mA sink

? Low quiescent current: 950 μA (maximum)

? Low dropout voltage: 300 mV at 2 mA (VOUT ≥ 3 V)

? 8-lead SOIC and LCC packages

? AEC-Q100 qualified for automotive applications

? Long-term drift: 8 ppm typical at 4500 hours

Product APPLICATIONS

? Precision data acquisition systems

? High resolution data converters

? High precision measurement devices

? Industrial instrumentation

? Medical devices

? Automotive battery monitoring

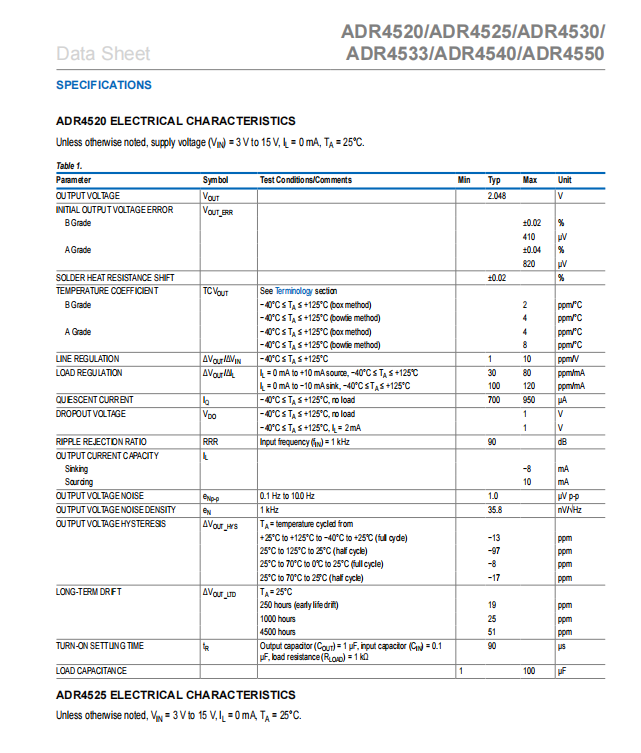

Specifications

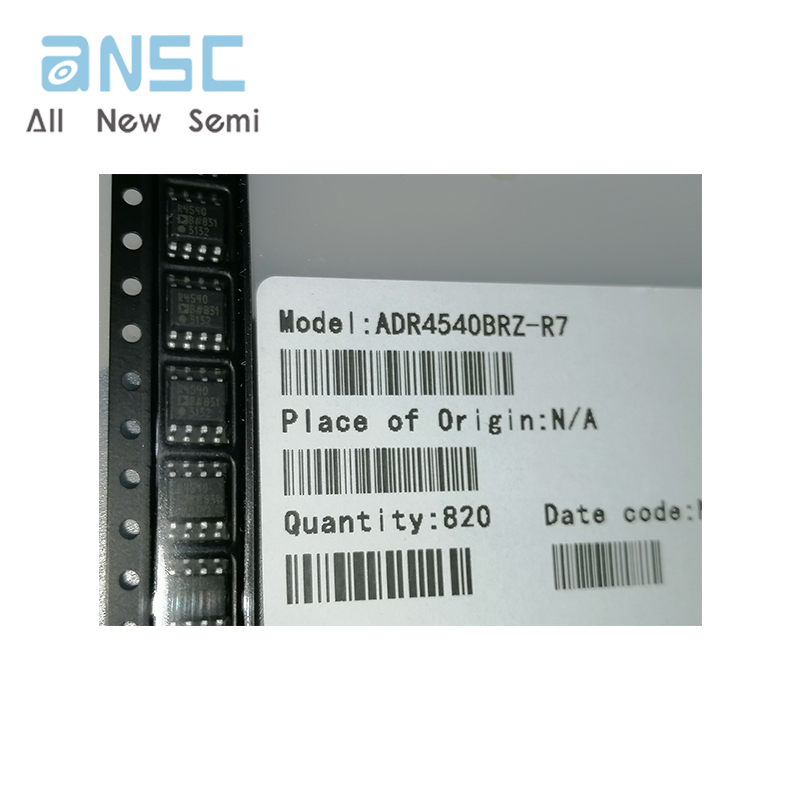

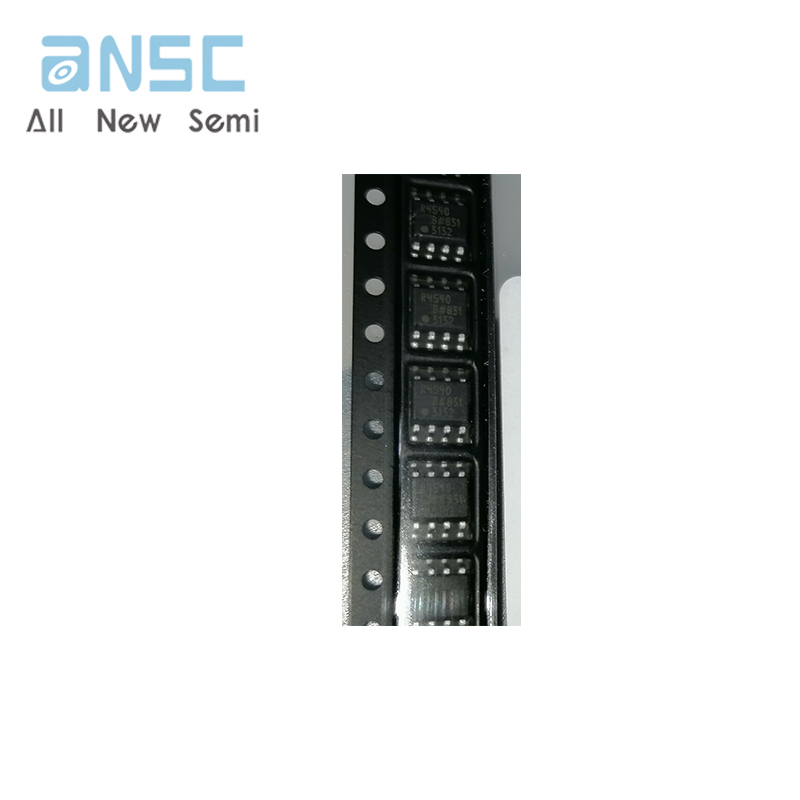

Actual product photos

Payment&Transportation

Official Certificate&Certificate

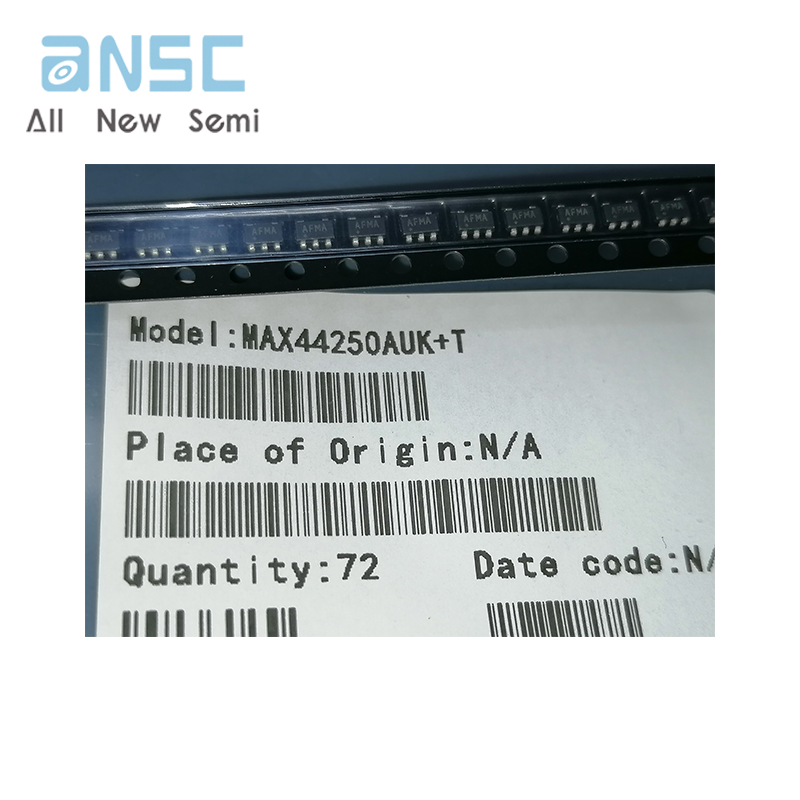

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
