Product Feature

? Guard Ring Die Construction for Transient Protection

? Ideally Suited for Automated Assembly

? Low Power Loss, High Efficiency

? For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Applications

? Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

? Halogen and Antimony Free. “Green” Device (Notes 3)

? This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.

? An automotive-compliant part is available under separate datasheet (B520CQ-B560CQ)

This Schottky barrier rectifier is designed to meet the general

requirements of commercial applications. It is ideally suited for use

as:

? Polarity protection diodes

? Re-circulating diodes

? Switching diodes

? Package: SMC

? Package Material: Molded Plastic. UL Flammability Classification Rating 94V-0

? Moisture Sensitivity: Level 1 per J-STD-020

? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

? Polarity: Cathode Band or Cathode Notch

? Weight: 0.21 grams (Approximate)

Attribute	Attribute value
ANSM-Part#	ANSM-B540C-13-F
Category	Discrete Semiconductor Products
	Diodes
	Rectifiers
	Single Diodes
Mfr	Diodes Incorporated
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel?
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	550 mV @ 5 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 μA @ 40 V
Capacitance @ Vr, F	300pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC
Operating Temperature - Junction	-55°C ~ 150°C
Base Product Number	B540

B540C-13-F 2

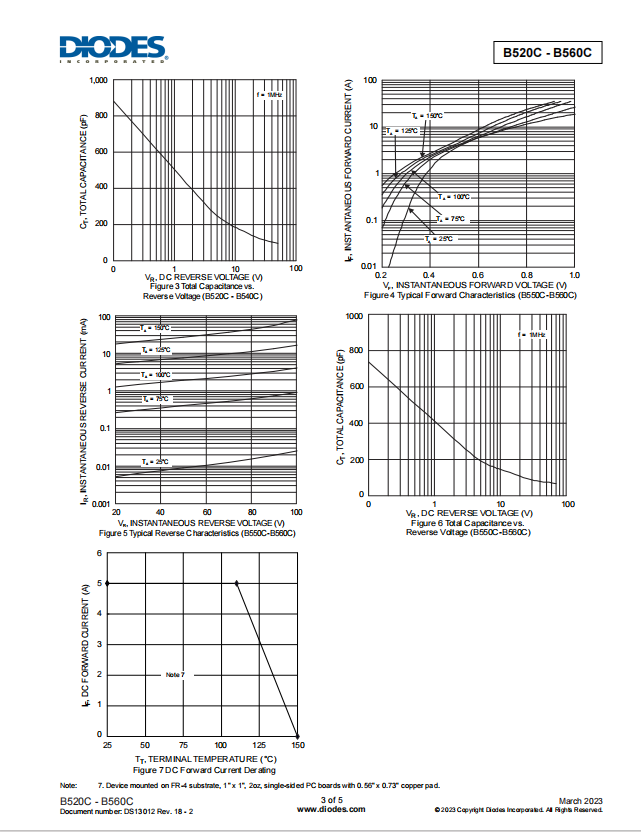

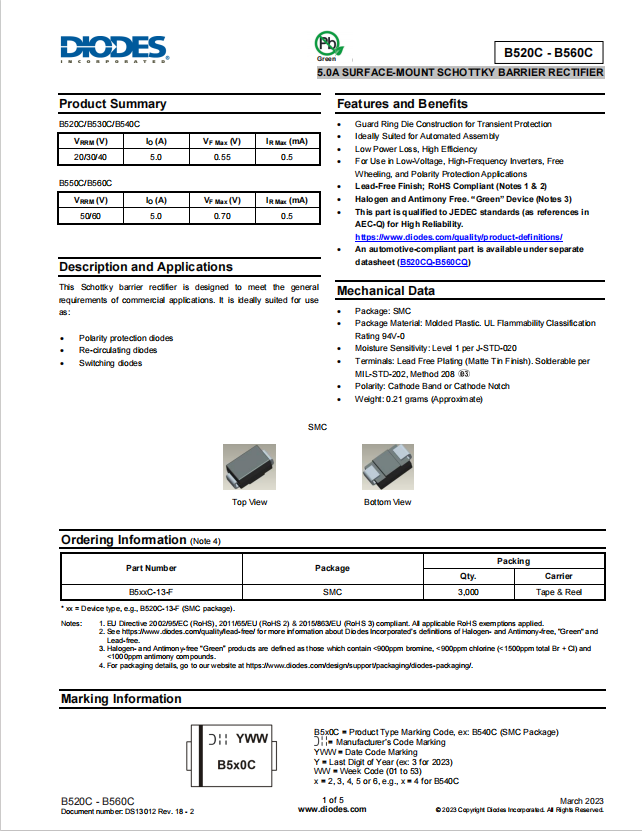

Product Data Book：

搜狗高速瀏覽器截圖20240103111207

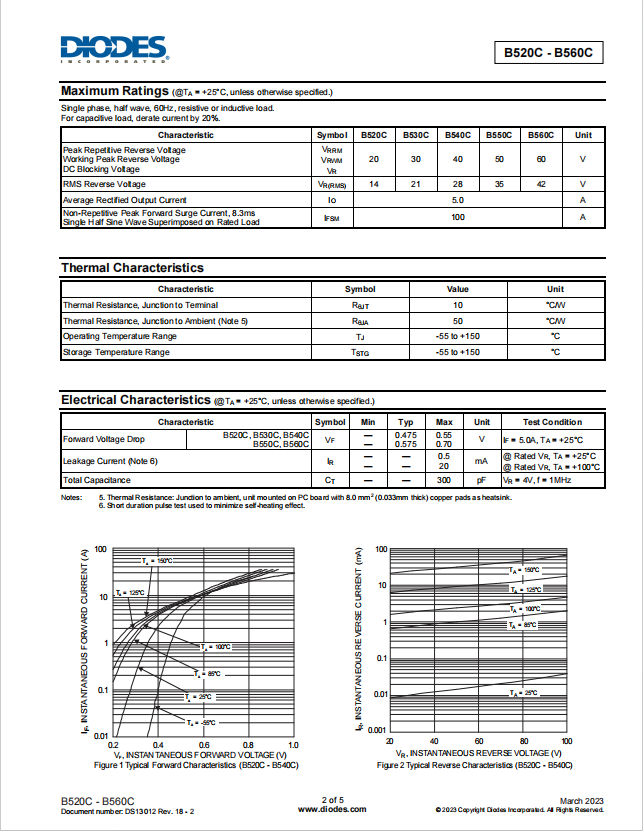

搜狗高速瀏覽器截圖20240103111212

搜狗高速瀏覽器截圖20240103111217

For more product information, please download the PDF
