Product Feature
? High energy storage and very low resistance
? High inductance values are perfect for EL driver applications.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-D03316P-224MLD |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Coilcraft |
| Series | DO3316 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Drum Core |
| Material - Core | Ferrite |
| Inductance | 220 μH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 610mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.205" (5.21mm) |

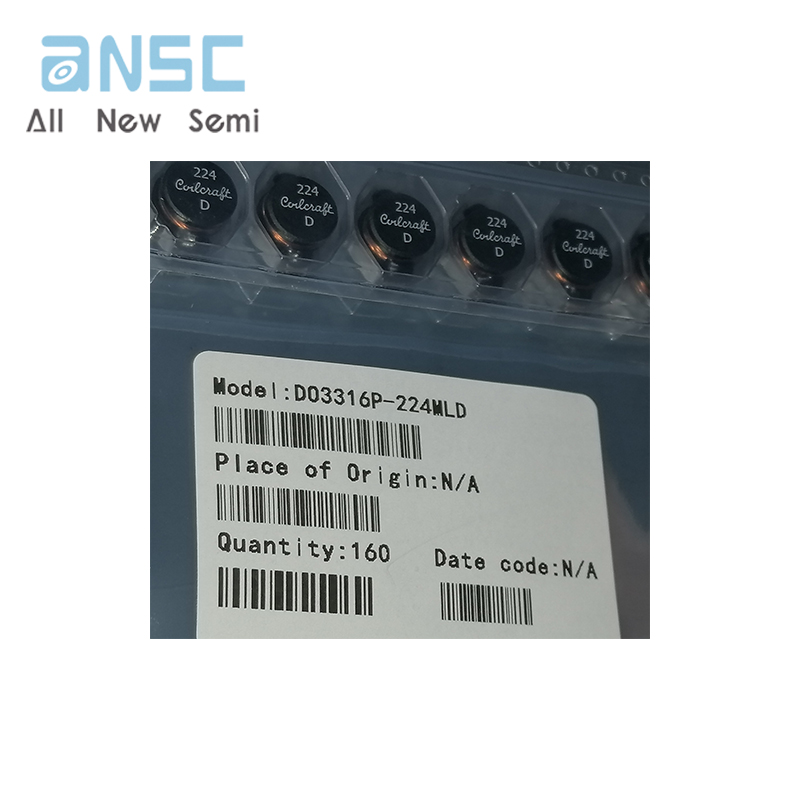

Actual product photos

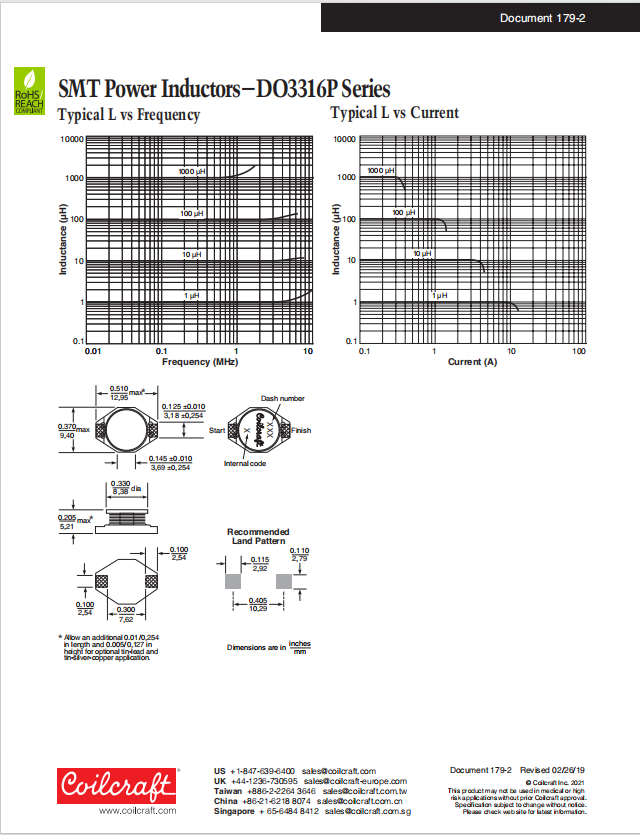

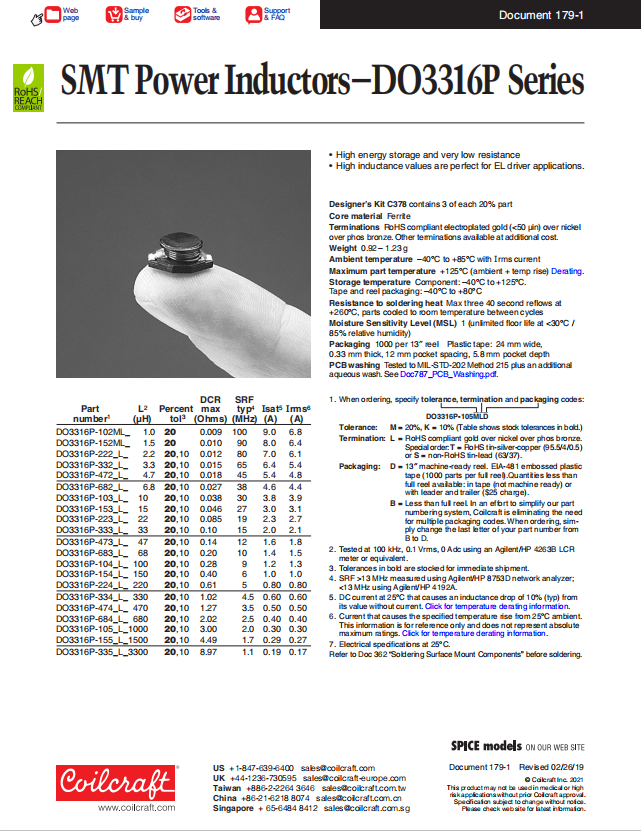

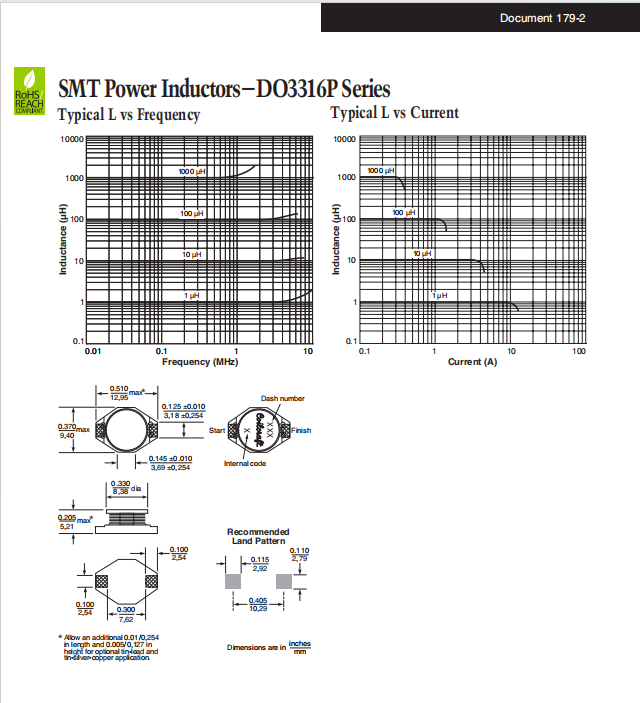

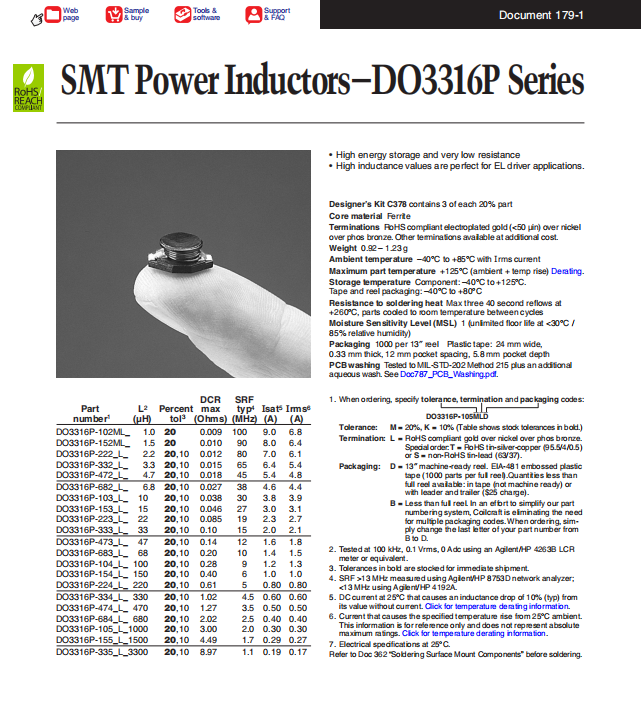

Product Data Book：
