Product Features

? Trench 4 IGBTs

? Robust and soft switching freewheeling diodes in CAL technology

? Highly reliable spring contacts for electrical connections

? UL recognized: File no. E63532

Product Applications

? Inverter up to 26 kVA

? Typical motor power 15 kW

Product Remarks

? VCEsat , VF= chip level value

? Case temp. limited to TC = 125°C max. (for baseplateless modules TC = TS)

? product rel. results valid for Tj ≤ 150 (recomm. Top = -40 … +150°C)

? Dynamic test results for Vcc = 600V, RGon/off = 12?, Ic = 50A, VGE = ±15V: Eon= 5.6mJ, Eoff = 6.1mJ, Err = 3.3mJ, di/dton = 1440A/μs, tdon = 58ns, tr = 43ns, di/dtoff = 600A/μs, tdoff = 370ns, tf = 65ns

Specifications

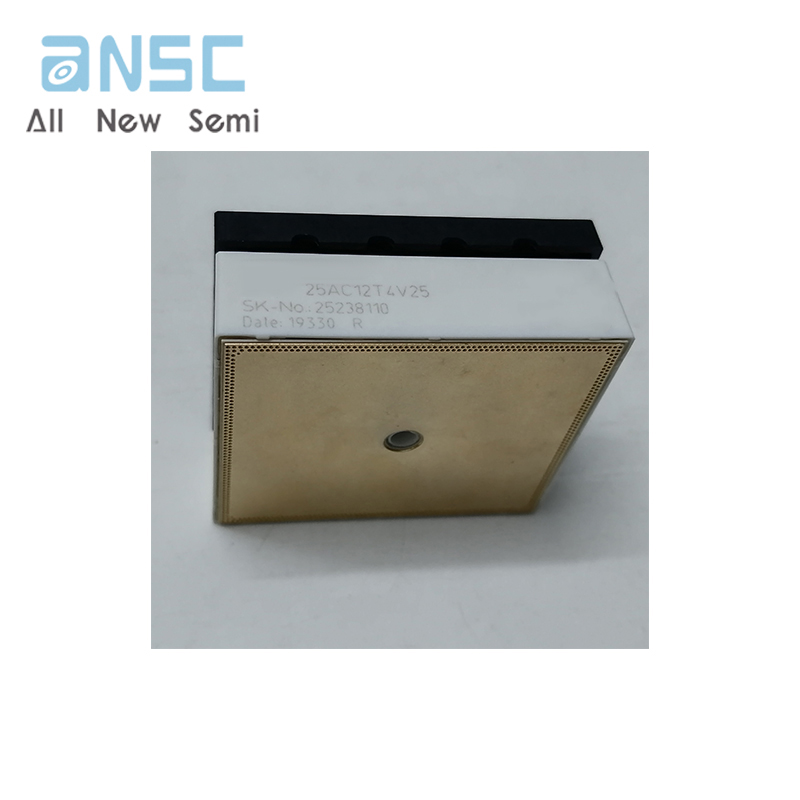

Actual product photos

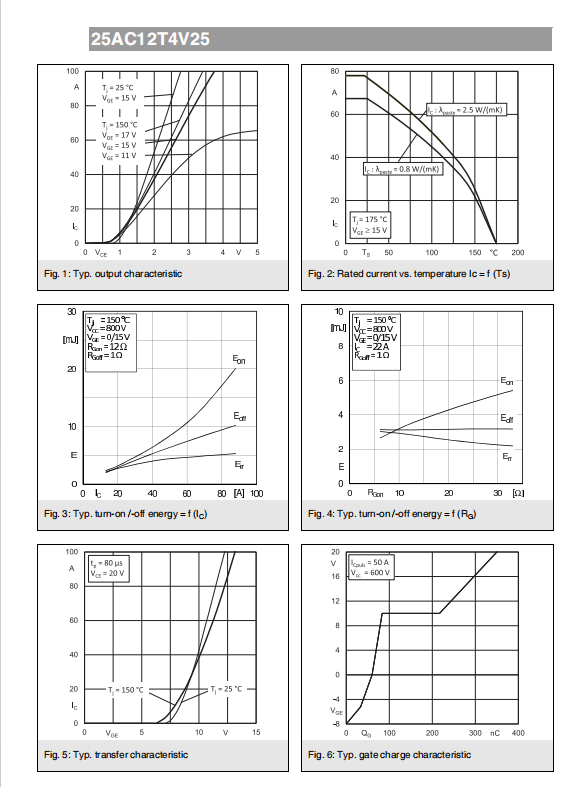

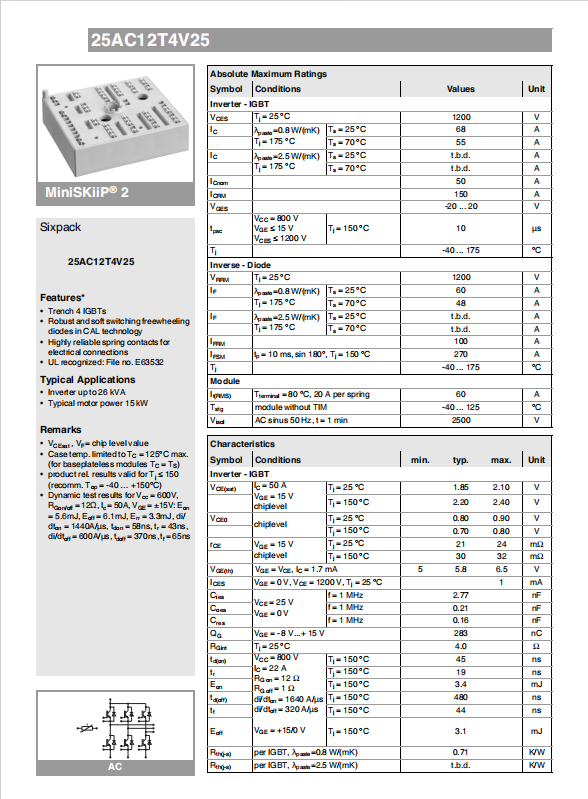

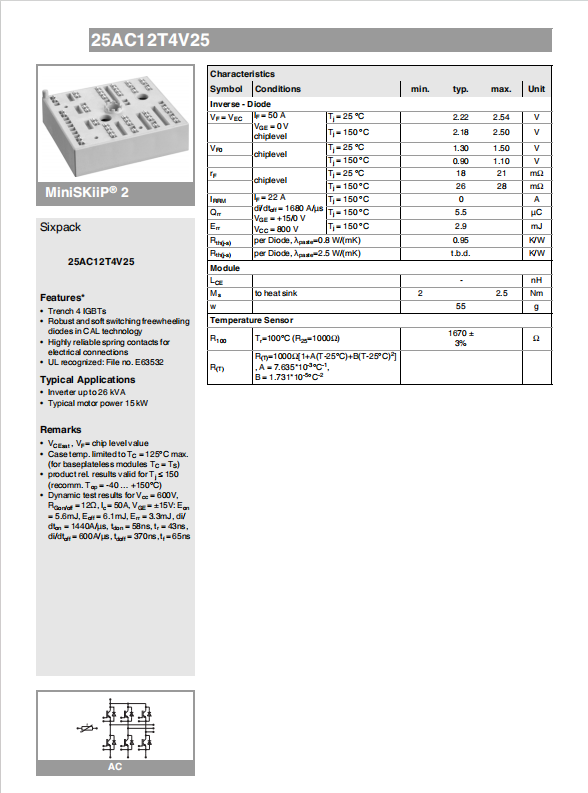

Product Data Book：

For more product information, please download the PDF
