Product Descriptions
The WP6 Series is a low-profile stacking type board-to-board (FPC) connector with 0.4mm pitch spacing that is ideal for high-density mounting in slim information communication devices like mobile phones, smartphones, and notebook PC.
To satisfy different product function requirements, plug and receptacle with different heights (mating height: 0.6mm, 0.8mm) are available with the same mounting pattern.
Product Features
? 0.4mm pitch, 2 rows, stacking height 0.6mm and 0.8mm.
? Contact structure ensures high wear-resistance and high contact reliability.
? Secure hold-downs prevent insulator breakage and peeling from FPC.
? 2-point contact design to resist twisting stress.
? Pb-free. Ni barrier on contact prevents solder wicking.
* Inspection jig connector for both plug and receptacle are available. (Note 1)
Product General Specifications
? No. of Contacts: 10 to 80 pos.
(Please refer to Development Status on the last page
regarding development of contacts.)
? Pitch: 0.4mm, 2 rows
? Operating Temperature:
-40 Deg. C to +85 Deg. C
? Contact Resistance: 70m? max (initial)
? Life Time: 30 mating cycles
? 0.4mm pitch, 2 rows, stacking height 0.6mm and 0.8mm.
? Contact structure ensures high wear-resistance and high contact reliability.
? Secure hold-downs prevent insulator breakage and peeling from FPC.
? 2-point contact design to resist twisting stress.
? Pb-free. Ni barrier on contact prevents solder wicking.
* Inspection jig connector for both plug and receptacle are available. (Note 1)
? Total Insertion Force: 1.5N x n max. (n: No. of pos.)
? Total Extraction Force: 0.1N x n min. (n: No. of pos.)
? Less than 20 pos. Total Insertion Force: 2.5N x n max. (n: No. of pos.)
? Less than 20 pos. Total Extraction Force: 0.2N x n min. (n: No. of pos.)
? Rated Current:
AC, DC 0.3A each per terminal
? Rated Voltage: AC, DC 50V
? Insulation Resistance: 100M? min. (initial)
? Dielectric Withstanding Voltage:
AC250Vr.m.s for 1 minute
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-WP66DK-P030VA1-R15000 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Arrays, Edge Type, Mezzanine (Board to Board) | |
| Mfr | JAE Electronics |
| Series | WP66DK |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Product Status | Active |
| Connector Type | Plug, Outer Shroud Contacts |
| Number of Positions | 30 |
| Pitch | 0.014" (0.35mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | 4.00μin (0.100μm) |
| Mated Stacking Heights | 0.6mm |
| Height Above Board | 0.019" (0.48mm) |
| Base Product Number | WP66DK-P |

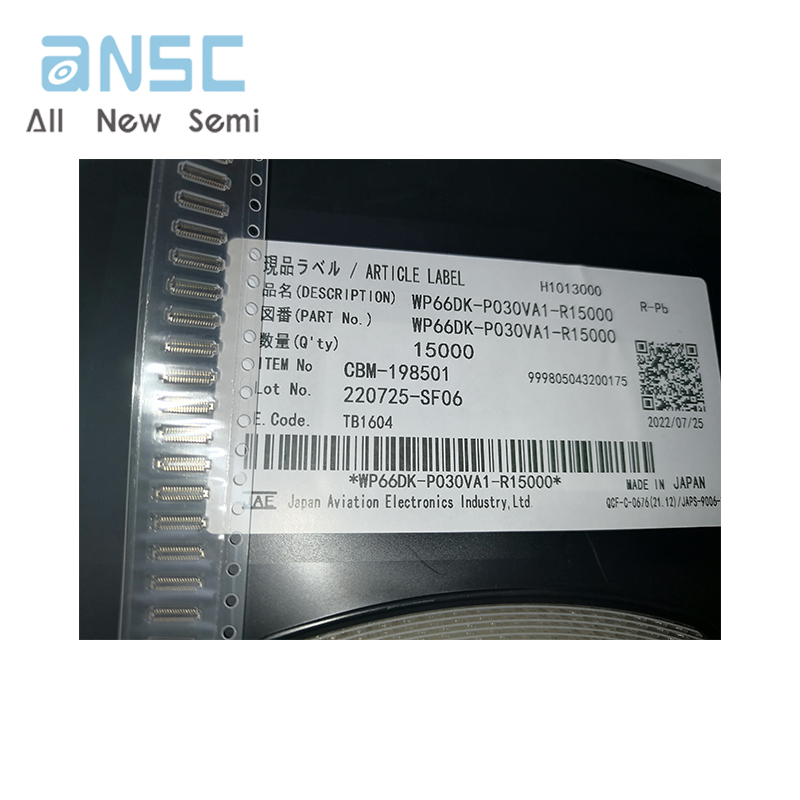

Actual product photos
