Product Descriptions
The CRL2 series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from –40°C and full 2 watt output at 85°C. Pin compatibility with the NME and LME ensures ease of upgradeability.
Product Features
? UL 60950 recognised
? Wide temperature performance at full 2 Watt load, –40°C to 85°C
? UL 94V-0 package material
? Single isolated output
? Industry standard pinout
? 1kVDC isolation ‘Hi Pot Test’
? 5V & 12V inputs
? 5V output
?Fully encapsulated with toroidal magnetics
? No external components required
? Pin compatible with CME, CRE1, LME, MEE1, MEE3, NKE, NME & NML series
? No electrolytic or tantalum capacitors
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CRL2S1205SC |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Murata Power Solutions Inc. |
| Series | CLR2 (2W) |
| Package | Tube |
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 0.81 |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.5mm x 10.0mm) |
| Supplier Device Package | - |
| Base Product Number | CRL2S |

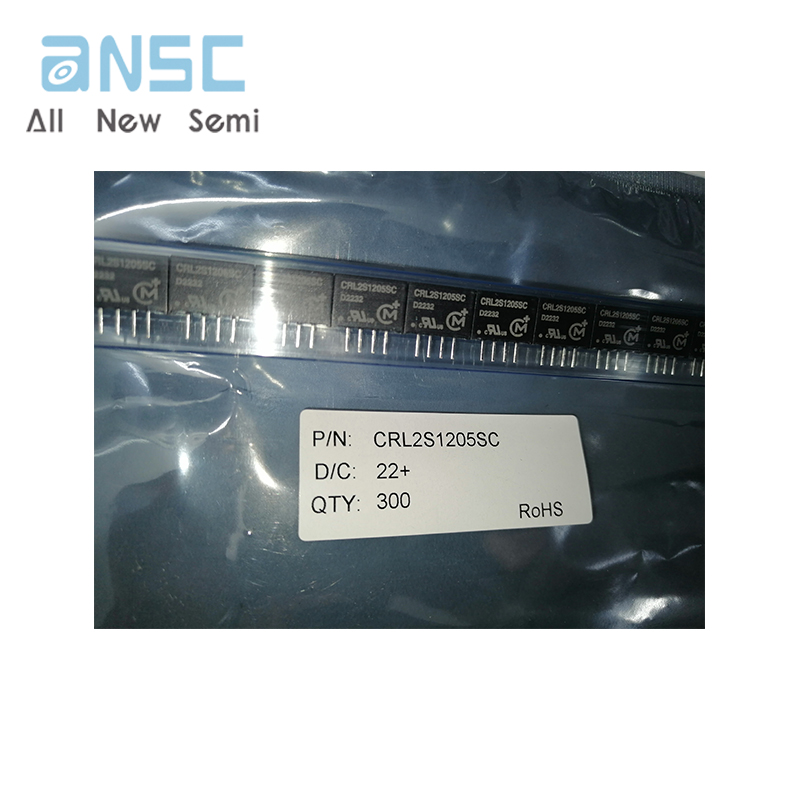

Actual product photos

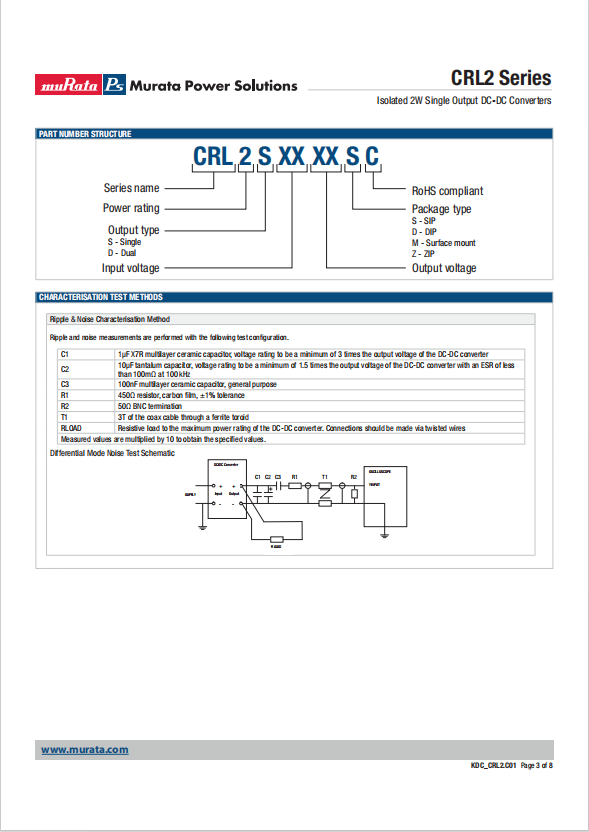

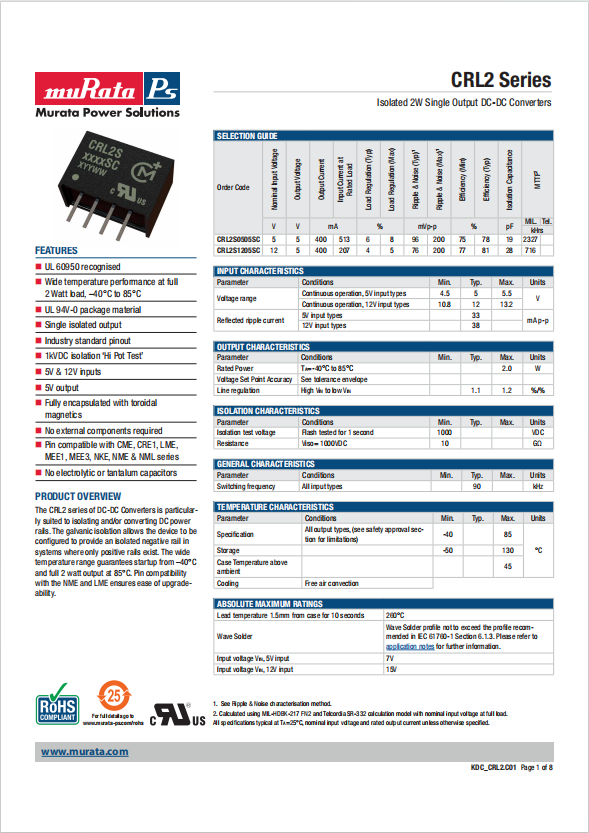

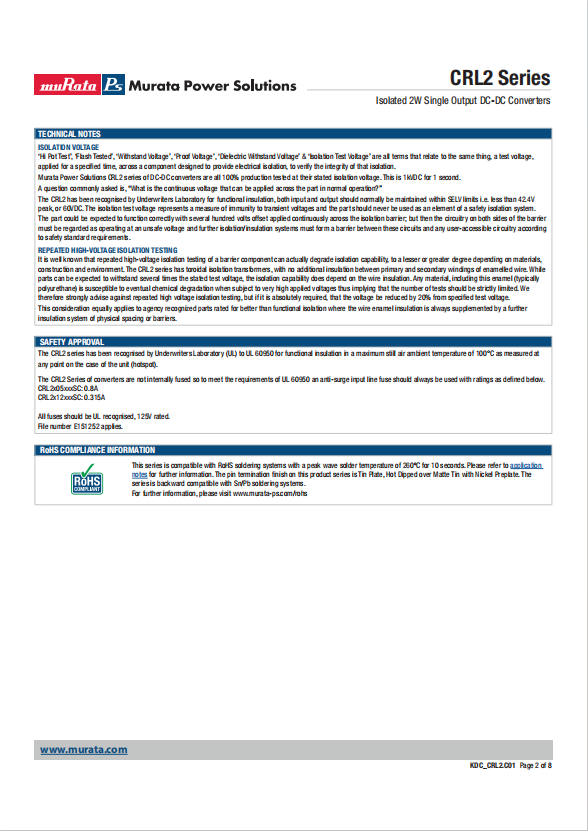

Product Data Book：
For more product information, please download the PDF
