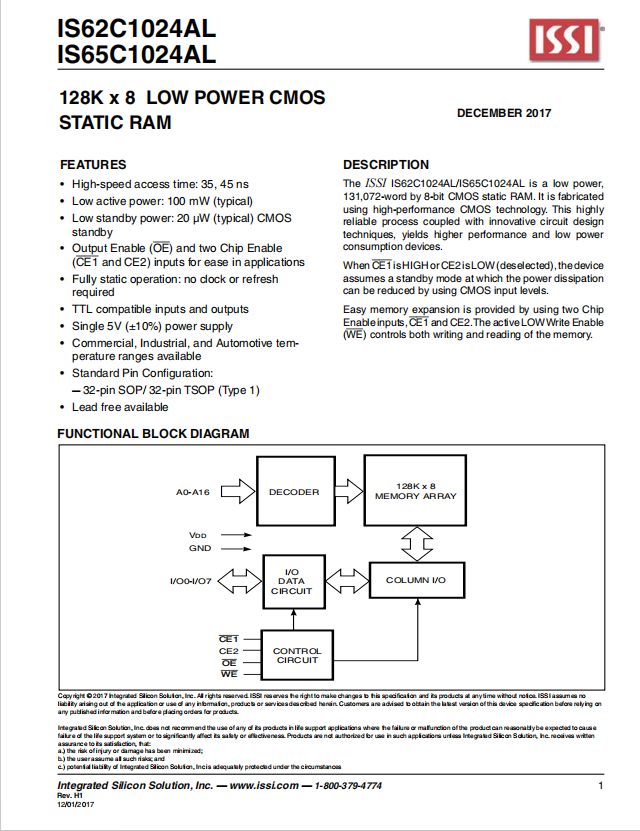

Product Descriptions

The ISSI IS62C1024AL/IS65C1024AL is a low power, 131,072-word by 8-bit CMOS static RAM. It is fabricated using high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power

consumption devices.

When CE1 is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.

Easy memory expansion is provided by using two Chip Enable inputs, CE1 and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.

Product Features

?        High-speed access time: 35, 45 ns

?        Low active power: 100 mW (typical)

?        Low standby power: 20 μW (typical) CMOS standby

?  Output Enable (OE) and two Chip Enable  (CE1 and CE2) inputs for ease in applications

?  Fully static operation: no clock or refresh required

?  TTL compatible inputs and outputs

?  Single 5V (±10%) power supply

?  Commercial, Industrial, and Automotive temperature ranges available

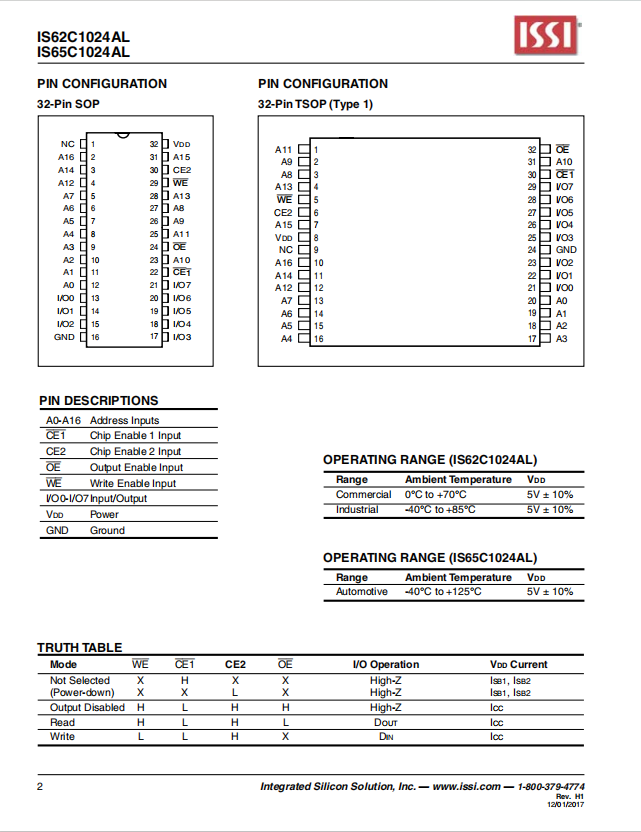

?  Standard Pin Configuration:

          — 32-pin SOP/ 32-pin TSOP (Type 1)

?  Lead free available

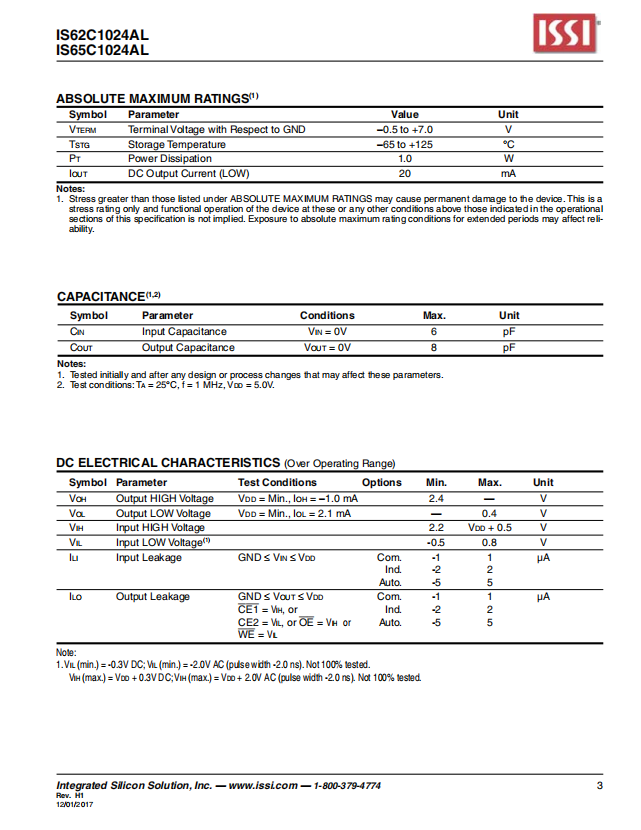

Specifications

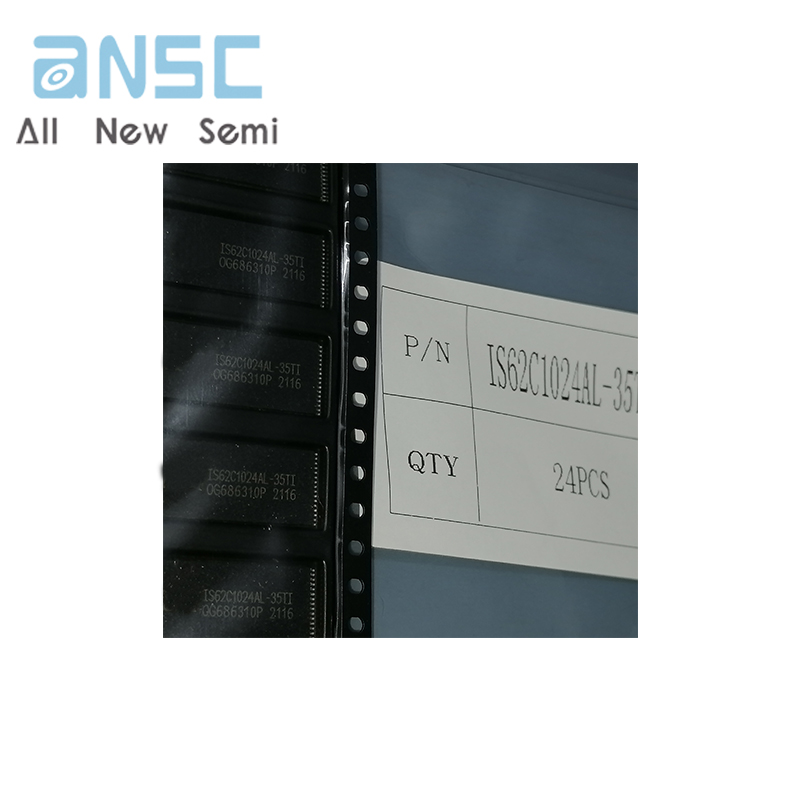

Actual product photos

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
