Product Descriptions

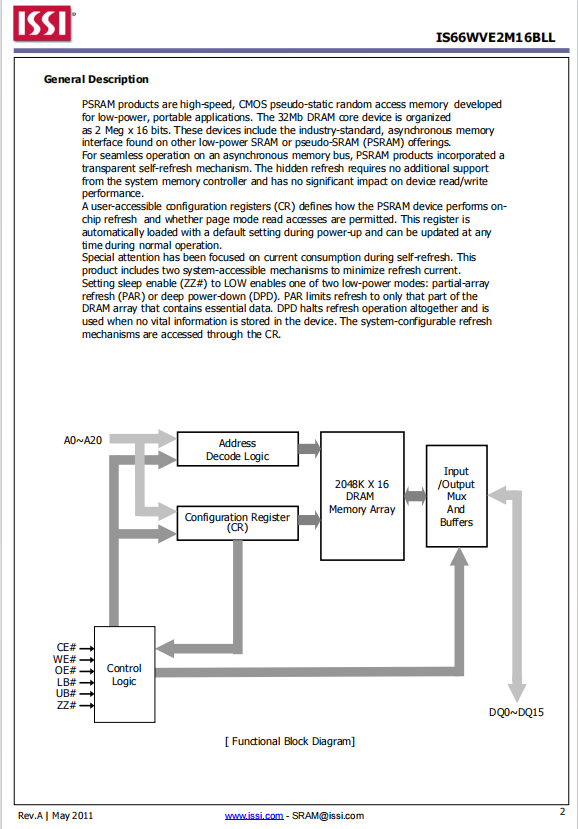

The IS66WVE2M16BLL is an integrated memory device containing 32Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 2M words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce standby current drain. The die has separate power rails, VDDQ and VSSQ for the I/O to be run from a separate power supply from the device core.
Product Features
? Asynchronous and page mode interface
? Dual voltage rails for optional performance
? VDD 2.7V~3.6V, VDDQ 2.7V~3.6V
? Page mode read access
? Interpage Read access : 70ns
? Intrapage Read access : 20ns
? Low Power Consumption
? Asynchronous Operation < 30 mA
? Intrapage Read < 18mA
? Standby < 180 uA (max.)
? Deep power-down (DPD) < 3uA (Typ)
? Low Power Feature
? Temperature Controlled Refresh
? Partial Array Refresh
? Deep power-down (DPD) mode
? Operating temperature Range
Industrial -40°C~85°C
? Packages:

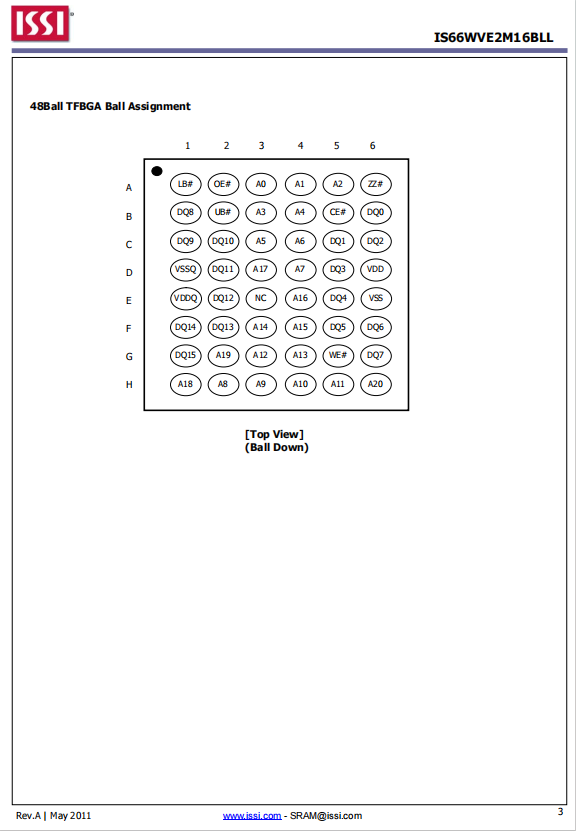

48-ball TFBGA, 48-pin TSOP-I
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IS66WVE2M16BLL-70BLI |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | ISSI, Integrated Silicon Solution Inc |
| Series | - |
| Package | Tray |
| Product Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Volatile |
| Memory Format | PSRAM |
| Technology | PSRAM (Pseudo SRAM) |
| Memory Size | 32Mbit |
| Memory Organization | 2M x 16 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 70ns |
| Access Time | 70 ns |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFBGA |
| Supplier Device Package | 48-TFBGA (6x8) |
| Base Product Number | IS66WVE2M16 |

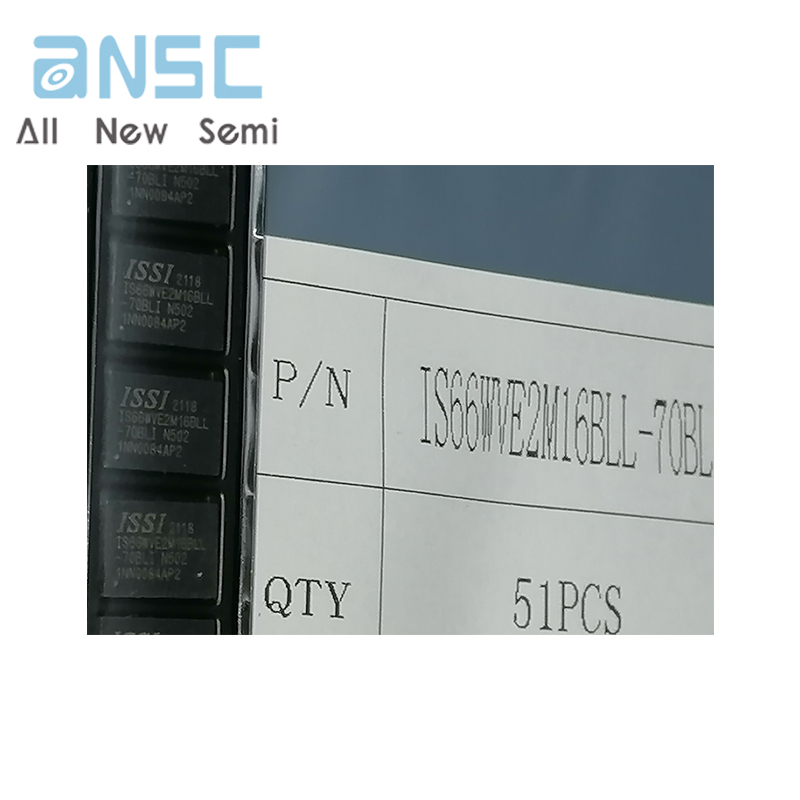

Actual product photos

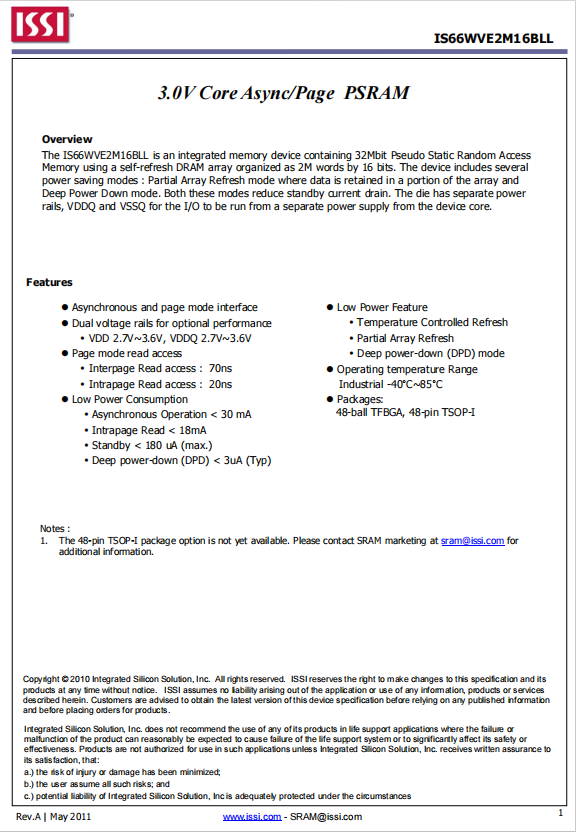

Product Data Book：
For more product information, please download the PDF
