Product Descriptions

The LM4041 series of shunt voltage references are versatile, easy-to-use references suitable for a wide array of applications. They require no external capacitors for operation and are stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and a low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4041 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1percent (max) for the A grade to 1 percent (max) for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications. The LM4041 is available in a fixed (1.225 V nominal) or an adjustable version (which requires an external resistor divider to set the output to a value between 1.225 V and 10 V).

Packaged in space-saving SC-70 and SOT-23-3 and requiring a minimum current of 45 μA (typ), the LM4041 also is ideal for portable applications. The TO-92 package also is available for through-hole packaging needs. The LM4041xI is characterized for operation over an ambient temperature range of – 40°C to 85°C. The LM4041xQ is characterized for operation over an ambient temperature range of –

40°C to 125°C.

Product Features

? 1.225-V Fixed and Adjustable Outputs (1.225 V to 10 V)

? Tight Output Tolerances and Low Temperature Coefficient

– Max 0.1%, 100 ppm/°C – A Grade

– Max 0.2%, 100 ppm/°C – B Grade

– Max 0.5%, 100 ppm/°C – C Grade

– Max 1.0%, 150 ppm/°C – D Grade

? Low Output Noise . . . 20 μVRMS (Typ)

? Wide Operating Current Range . . . 45 μA (Typ) to 12 mA

? Stable With All Capacitive Loads; No Output Capacitor Required

? Available in

– Industrial Temperature: –40°C to 85°C

– Extended Temperature: –40°C to 125°C

Product Applications

? Data-Acquisition Systems

? Power Supplies and Power-Supply Monitors

? Instrumentation and Test Equipment

? Process Control

? Precision Audio

? Automotive Electronics

? Energy Management/Metering

? Battery-Powered Equipment

Specifications

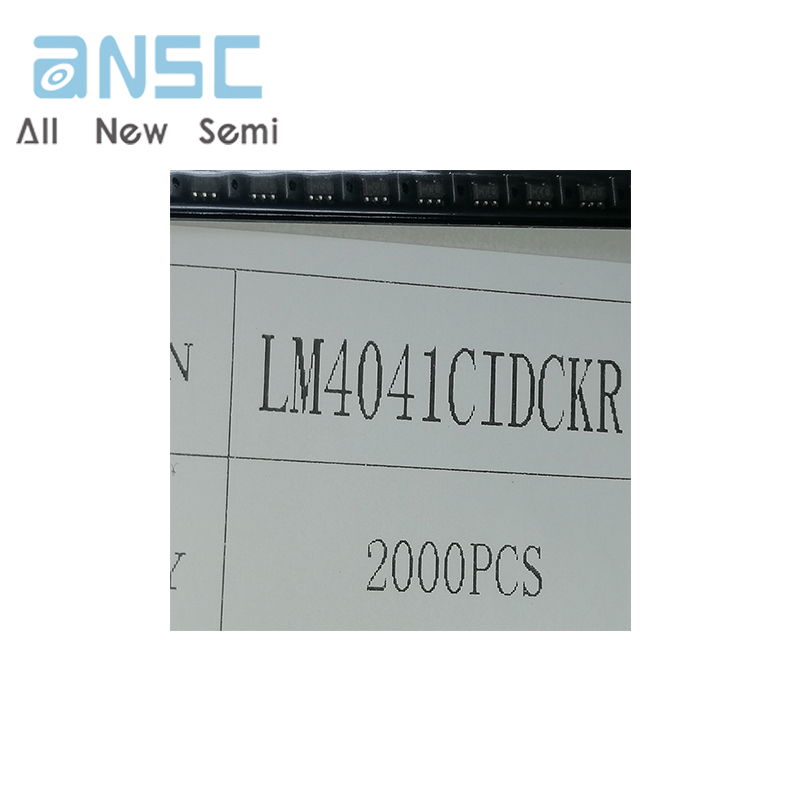

Actual product photos

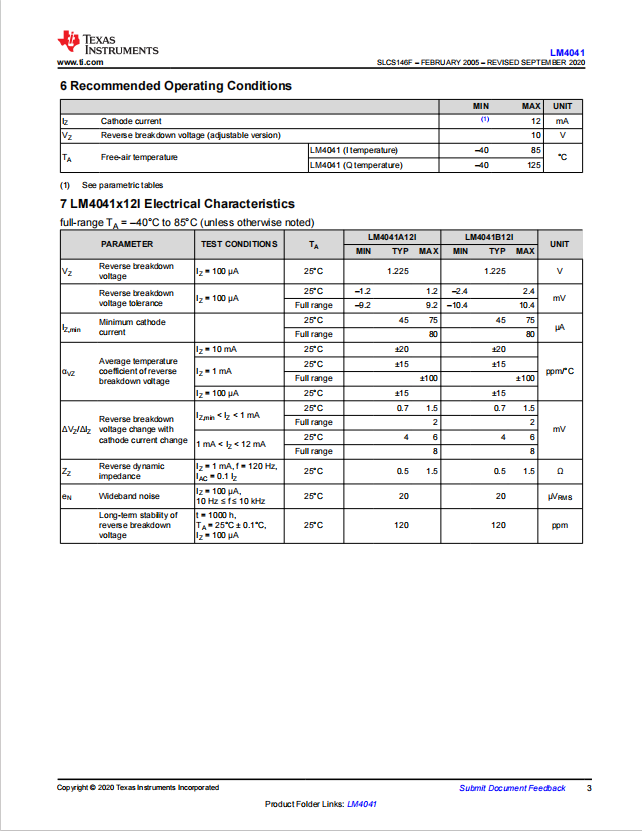

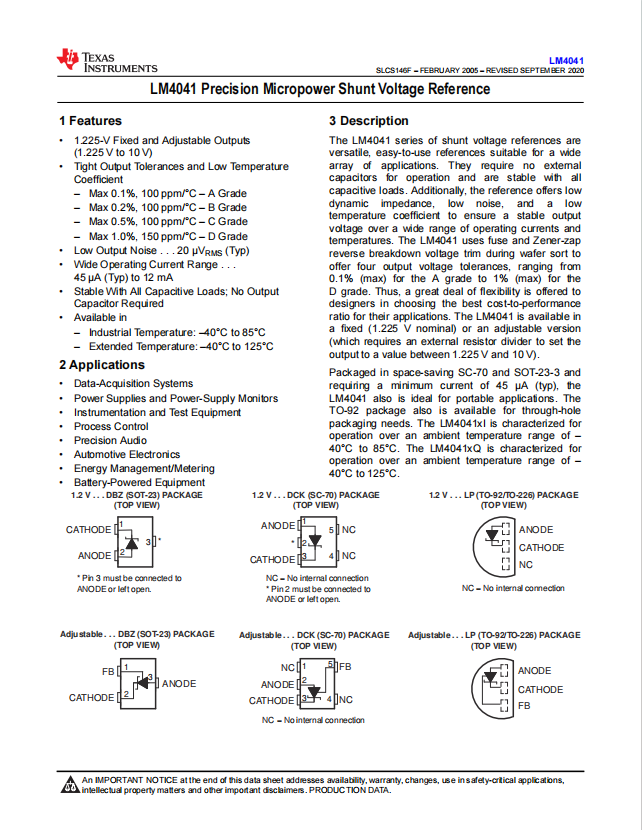

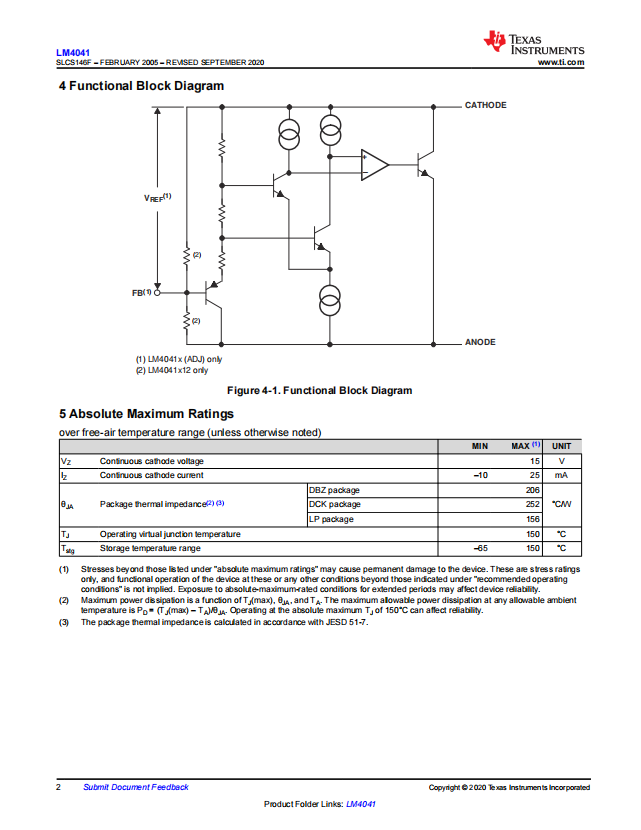

Product Data Book：

For more product information, please download the PDF
