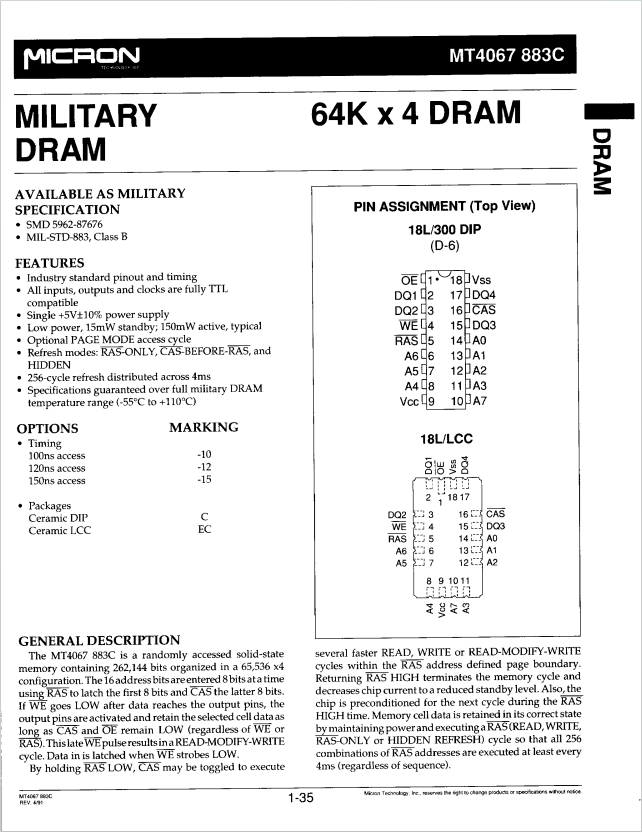

Product Descriptions
SMD 5962-87676
MIL-STD-883,Class B
Product Features
? Industry standard pinout and timing
? All inputs, outputs and clocks are fully TTL compatible
? Single +5V+10% power supply
? Low power, 15mW standby; 150mW active, typical
? Optional PAGE MODE access cycle
? Refresh modes: RASONLY,CASBEFORE-RAS and HIDDEN
? 256-cycle refresh distributed across 4ms
? Specifications guaranteed over full military DRAMtemperature range(-55°C to +110C)
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MT4067-10 |
| REACH Compliant | Yes |
| Status | Active-Unconfirmed |
| Sub Category | DRAMs |
| Access Time-Max | 100.0 ns |
| I/O Type | COMMON |
| JESD-30 Code | R-PDIP-T18 |
| JESD-609 Code | e0 |
| Memory Density | 262144.0 bit |
| Memory IC Type | PAGE MODE DRAM |
| Memory Width | 4 |
| Number of Terminals | 18 |
| Number of Words | 65536.0 words |
| Number of Words Code | 64K |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 64KX4 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP18,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Refresh Cycles | 256 |
| Supply Current-Max | 0.055 Amp |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Surface Mount | NO |
| Technology | MOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |

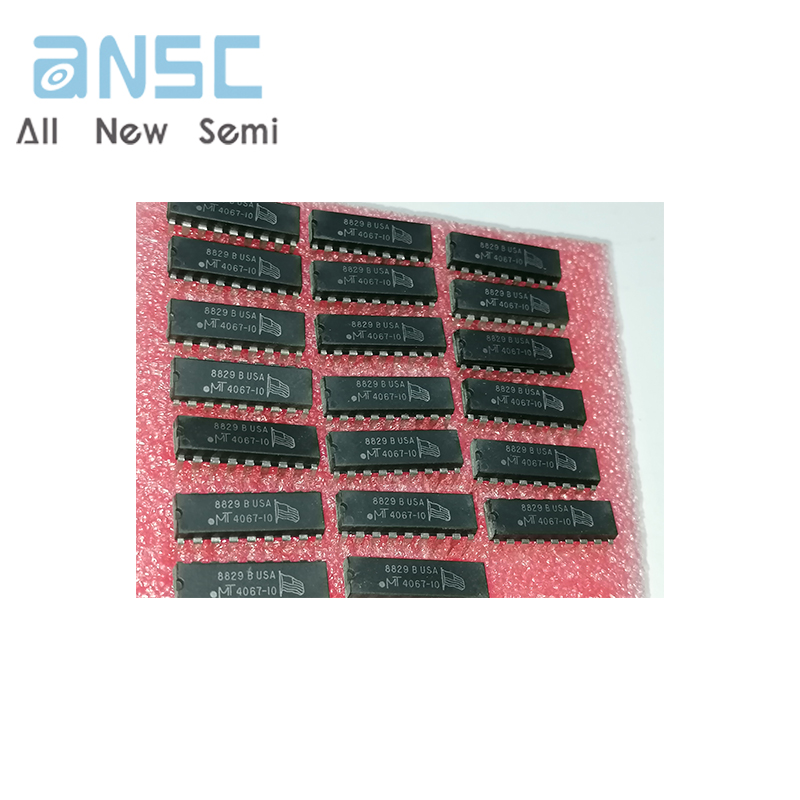

Actual product photos

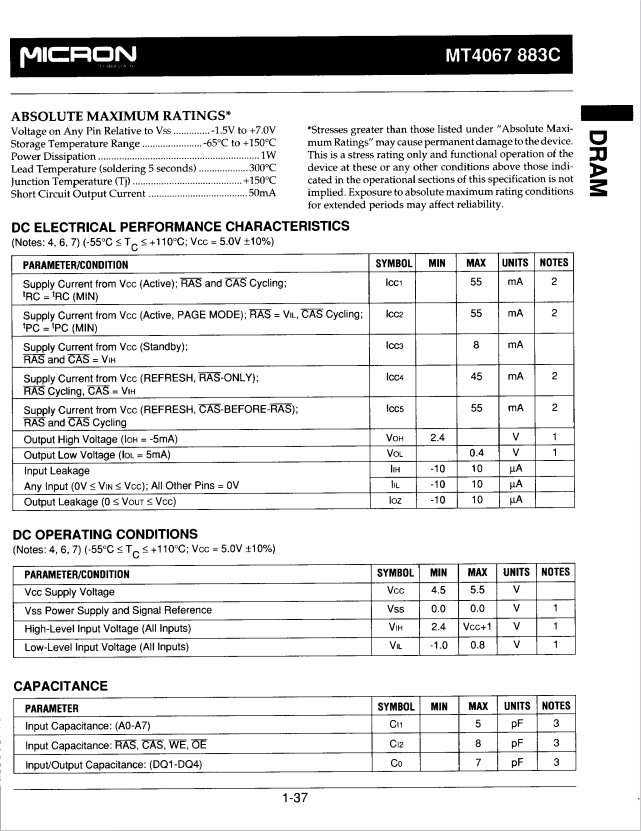

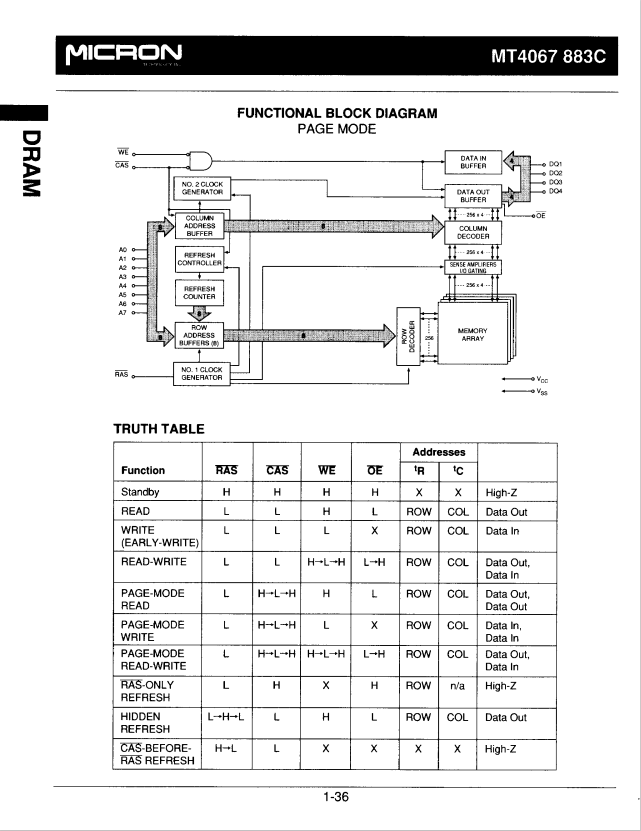

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
