Product Descriptions

The TriQuint TG4040 is a Medium Power Amplifier and Multiplier for a wide band of 17 – 43GHz applications. The part is designed using TriQuint’s 0.15um power pHEMT production process.

The TGA4040 provides a nominal 25 dB small signal gain with 22 dBm output power @ 1 dB gain compression. For 2x and 3x Multiplier Function, TGA4040 provides 15 dBm typical of Output Power @ 9 dBm Pin.

The part is ideally suited for applications such as Point-to-Point Radio, EW, Instrumentation and frequency multipliers.

The TGA4040 is 100 percent DC and RF tested onwafer to ensure performance compliance.

The TGA4040 has a protective surface passivation layer providing environmental robustness.

Lead-Free & RoHS compliant.

Product Features

? Frequency: 17 - 43 GHz

? 25 dB Nominal Gain @ Mid-band

? 22 dBm Nominal Output P1dB

? 2x and 3x Multiplier Function

? 0.15 um 3MI pHEMT Technology

? Chip Dimensions 1.72 x 0.76 x 0.10 mm (0.068 x 0.030 x 0.004 in)

Product Applications

? Point-to-point radio

? EW

? Instrumentation

? Frequency Multiplier

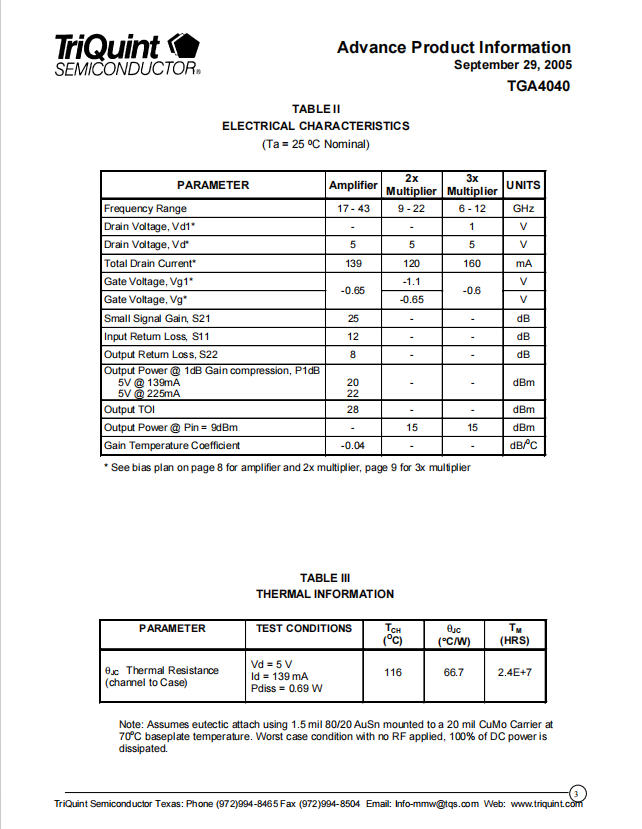

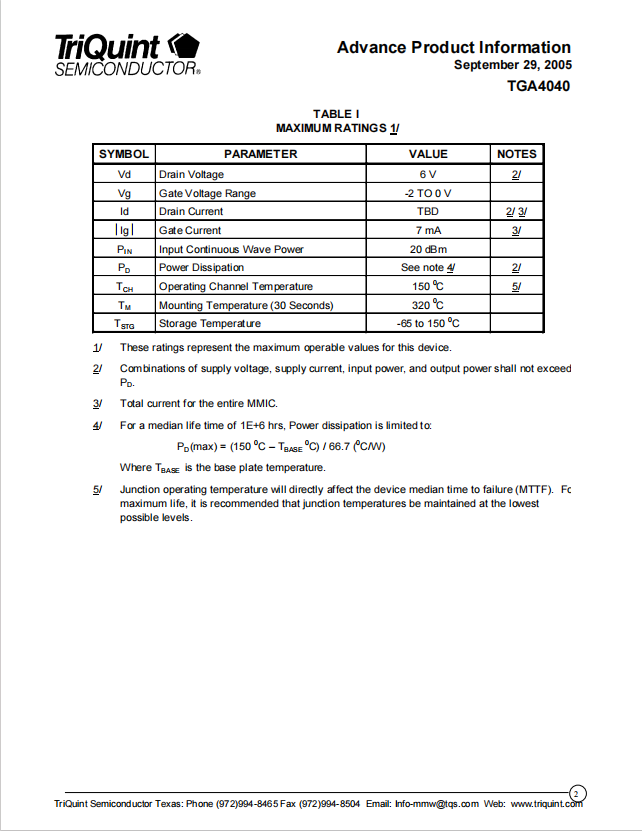

Specifications

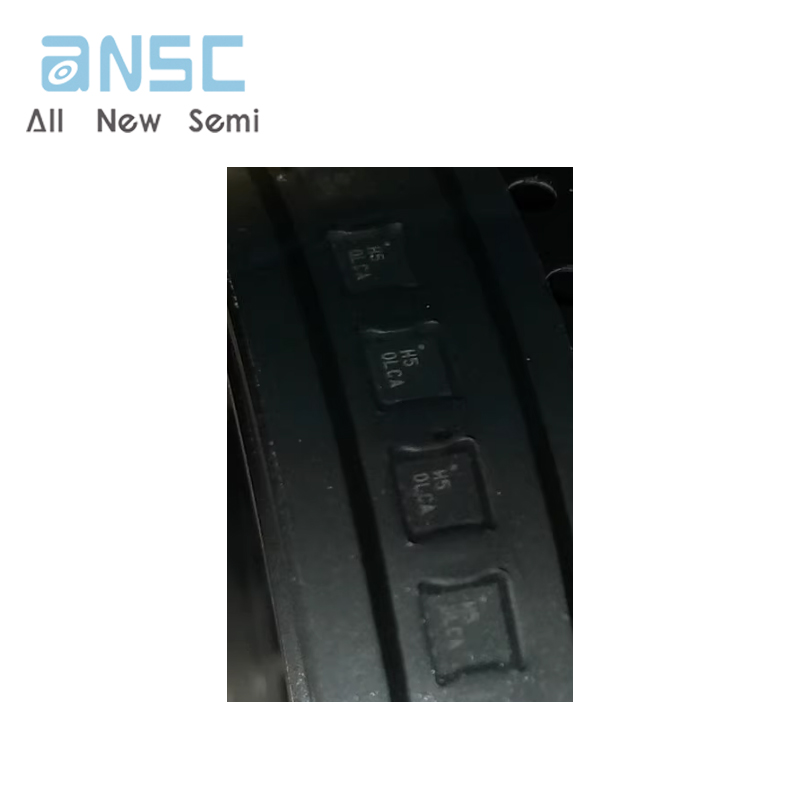

Actual product photos

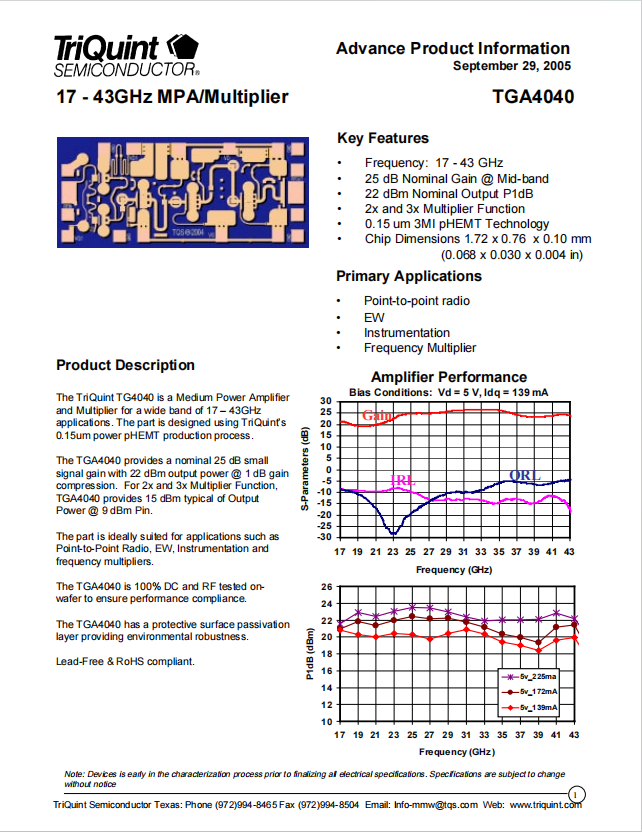

Product Data Book：

For more product information, please download the PDF
