Product Features
? Wide selection of hold currents and maximum voltages
? Surface mount package for automated assembly
? Fully compatible with current industry standards
? High power rating
? RoHS compliant* and halogen free**
? Agency recognition:
? 2920 and 3425 footprints available
Product Applications
Almost anywhere there is a low voltage power supply and a load to be protected, including:
? Computers & peripherals
? General electronics
? Automotive applications
? Industrial controls
? Portable electronic devices
? Displays and sensors
? DC motors and DC fans
? LEDs
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MF-SM100-2 |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Mfr | Bourns Inc. |
| Series | Multifuse?, MF-SM |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Current - Max | 80 A |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 120 mOhms |
| Resistance - Post Trip (R1) (Max) | 480 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.287" L x 0.214" W (7.31mm x 5.44mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.118" (3.00mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Base Product Number | MF-SM |

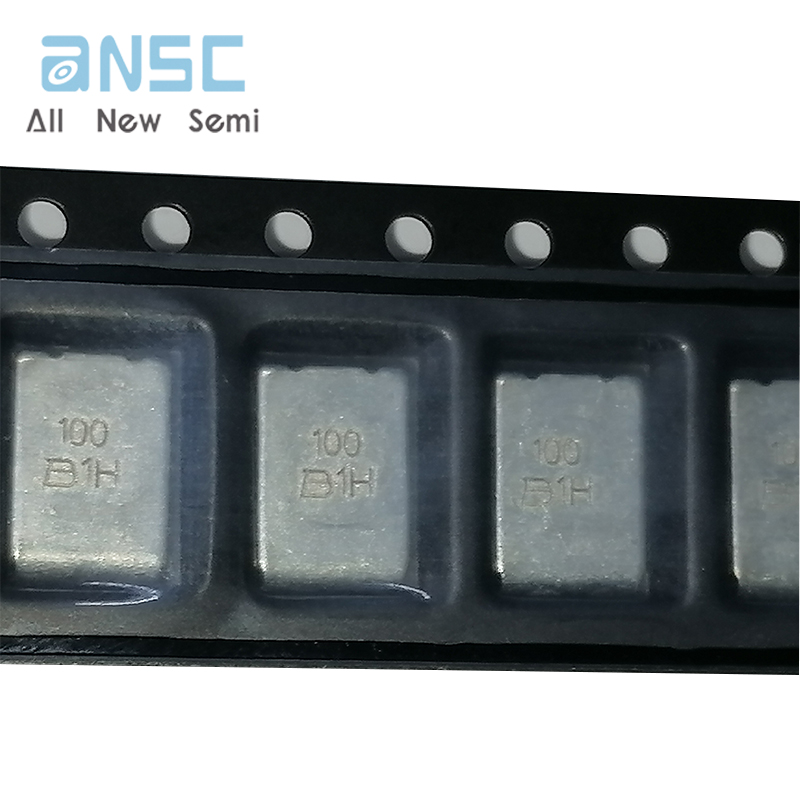

Actual product photos

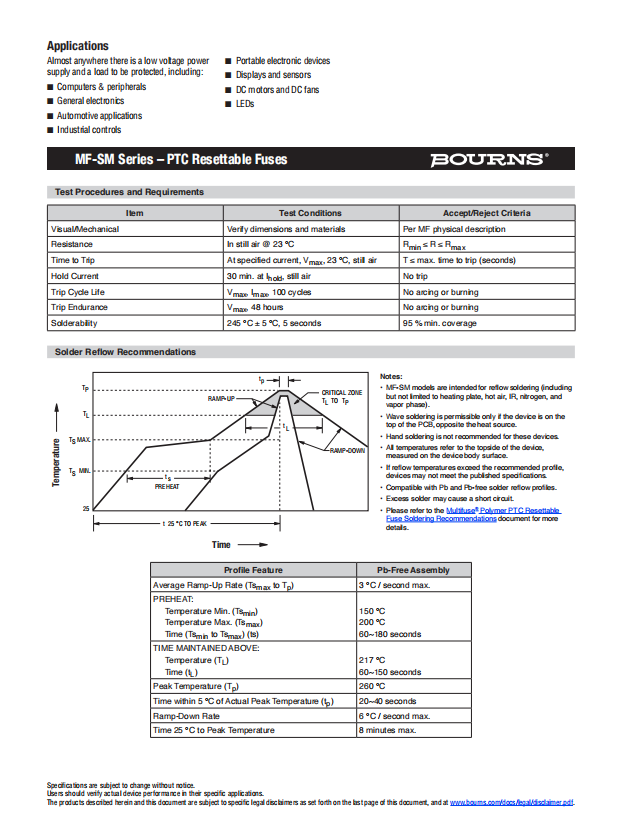

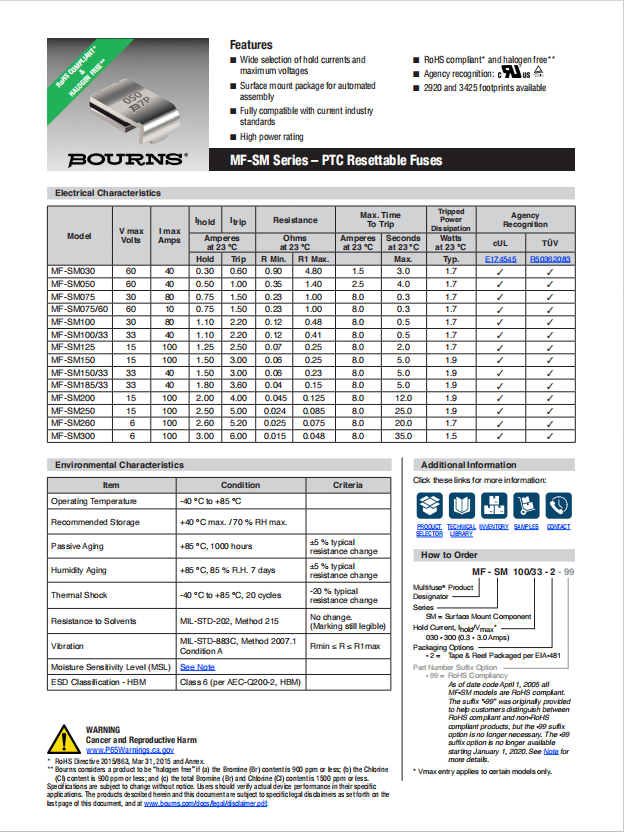

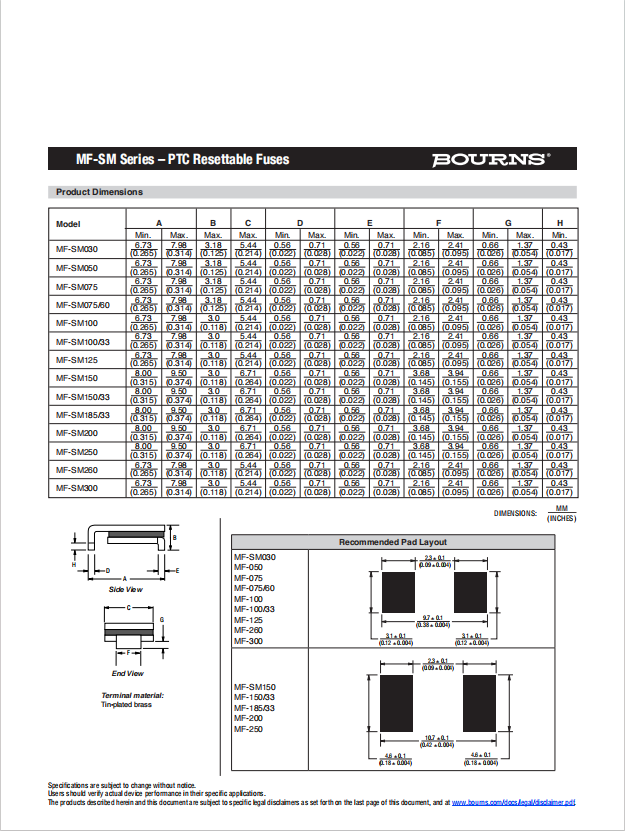

Product Data Book：
For more product information, please download the PDF
