Product Descriptions
The TDA7056AT is a mono Bridge-Tied Load (BTL) output amplifier with DC volume control. It is designed for use in TVs and monitors, but is also suitable for battery-fed portable recorders and radios. The device is contained in a 20-lead small outline package.
A Missing Current Limiter (MCL) is built in. The MCL circuit is activated when the difference in current between the output terminal of each amplifier exceeds 100 mA (300 mA typ.). This level of 100 mA allows for Single-Ended (SE) headphone applications.
Product Features
? DC volume control
? Few external components
? Mute mode
? Thermal protection
? Short-circuit proof
? No switch-on or switch-off clicks
? Good overall stability
? Low power consumption
? Low HF radiation
? ESD protected on all pins.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TDA7056AT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | NXP USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Obsolete |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 3.5W x 1 @ 16Ohm |
| Voltage - Supply | 4.5V ~ 18V |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Volume Control |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 20-SO |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Base Product Number | TDA705 |
Actual product photos

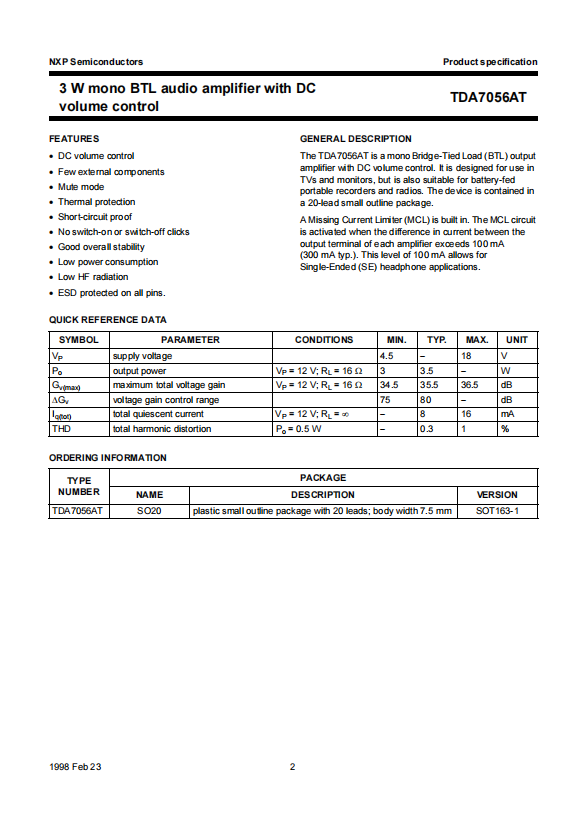

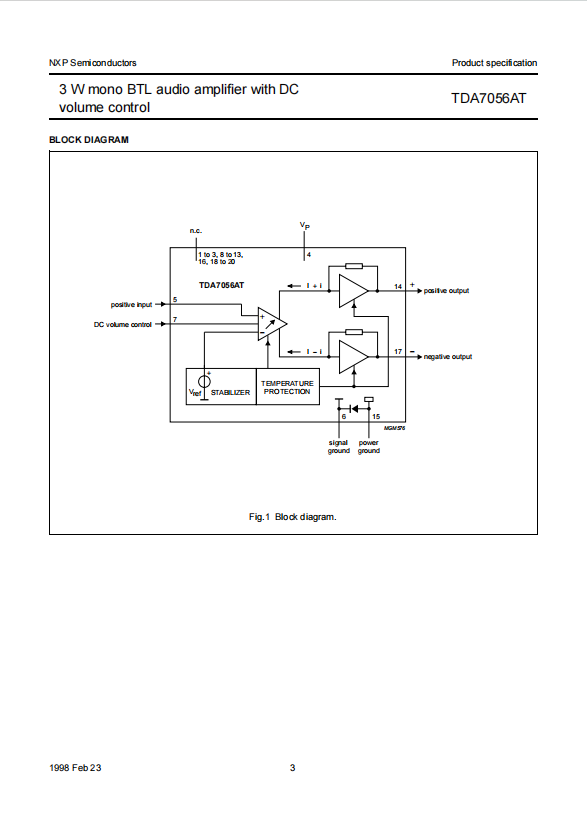

Product Data Book：
