Product Descriptions
The Harris CD4070B contains four independent ExclusiveOR gates. The Harris CD4077B contains four independent Exclusive-NOR gates.
The CD4070B and CD4077B provide the system designer with a means for direct implementation of the Exclusive-OR and Exclusive-NOR functions, respectively.
Product Features
? High-Voltage Types (20V Rating)
? CD4070B - Quad Exclusive-OR Gate
? CD4077B - Quad Exclusive-NOR Gate
? Medium Speed Operation
- tPHL, tPLH = 65ns (Typ) at VDD = 10V, CL = 50pF
? 100% Tested for Quiescent Current at 20V
? Standardized Symmetrical Output Characteristics
? 5V, 10V and 15V Parametric Ratings
? Maximum Input Current of 1μA at 18V Over Full Package Temperature Range
- 100nA at 18V and 25oC
? Noise Margin (Over Full Package Temperature Range)
- 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
? Meets All Requirements of JEDEC Standard No. 13B,“Standard Specifications for Description of ‘B’ Series CMOS Devices
Product Applications
? Logical Comparators
? Adders/Subtractors
? Parity Generators and Checkers
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4070BM96 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 μA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 100ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | CD4070 |

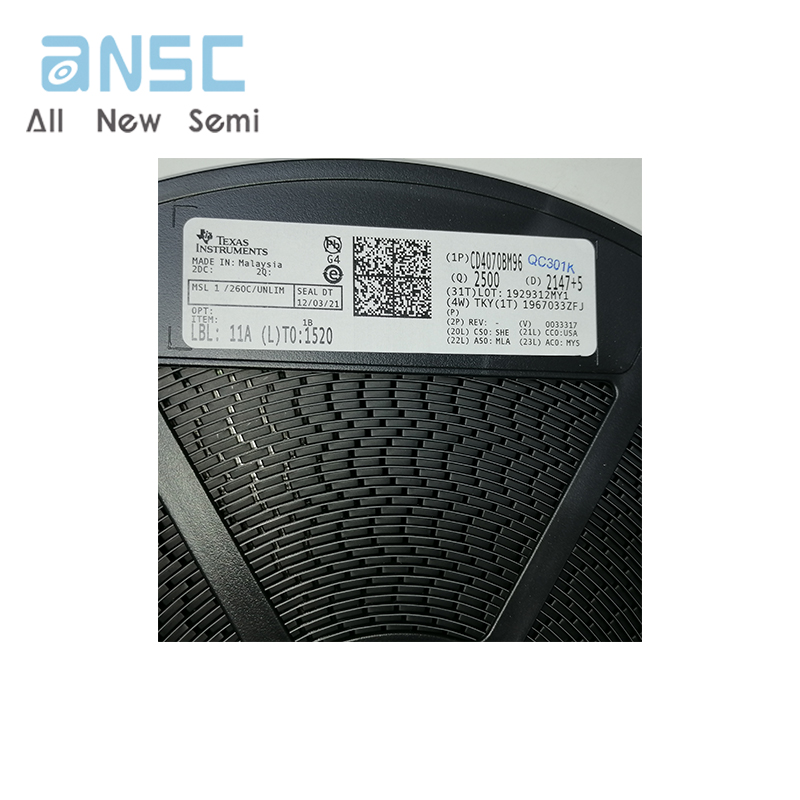

Actual product photos

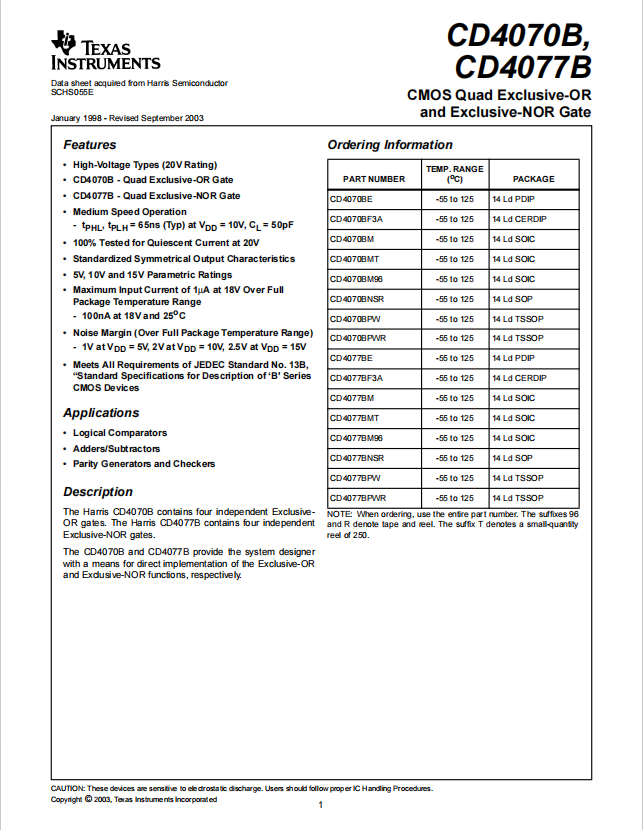

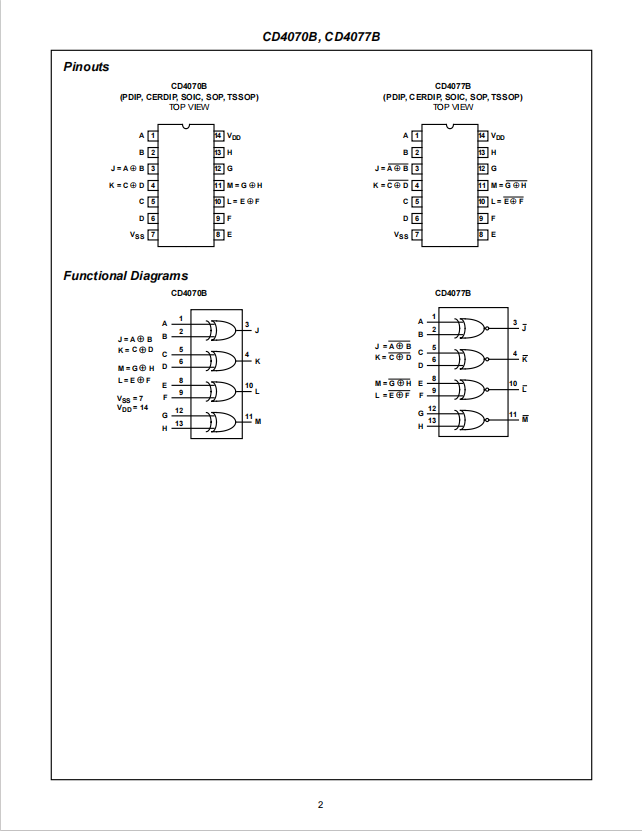

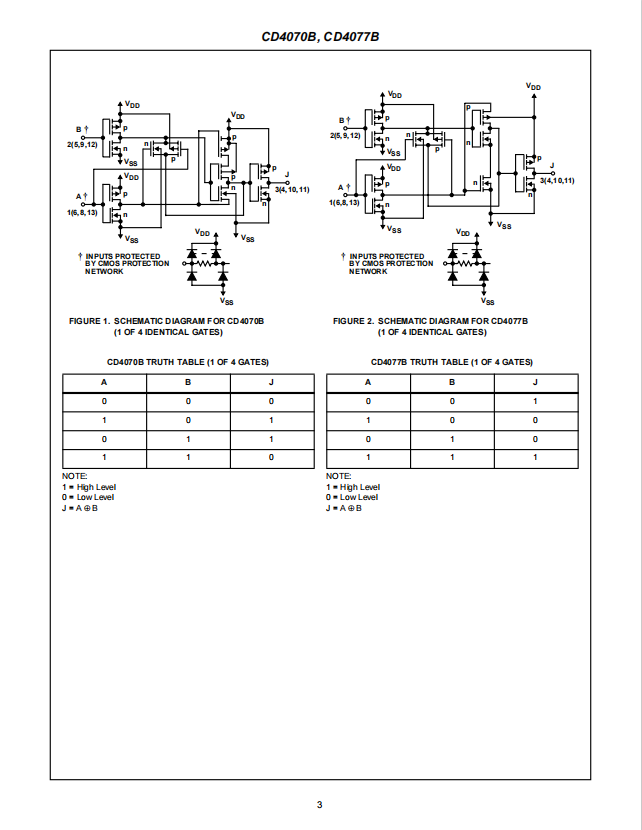

Product Data Book：
For more product information, please download the PDF
