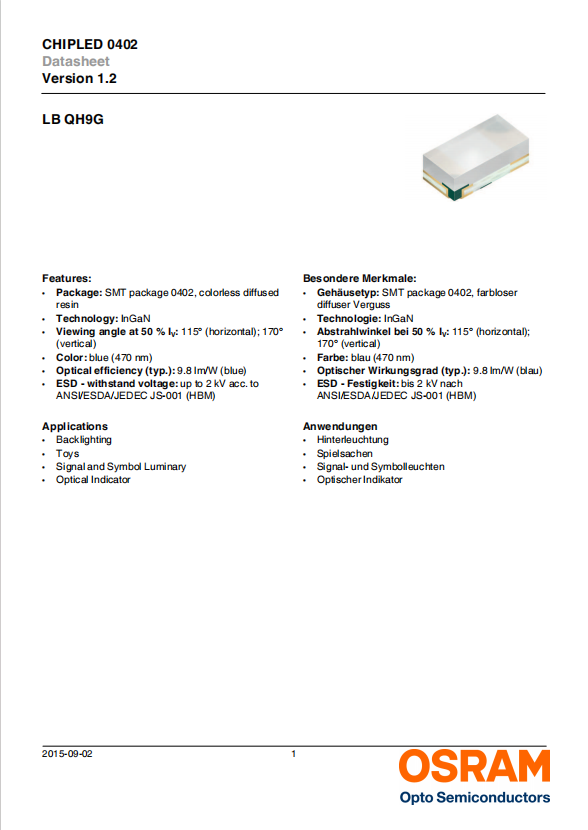

Product Features
? Package: SMT package 0402, colorless diffused resin
? Technology: InGaN
? Viewing angle at 50 % IV: 115° (horizontal); 170° (vertical)
? Color: blue (470 nm)
? Optical efficiency (typ.): 9.8 lm/W (blue)
? ESD - withstand voltage: up to 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
Product Besondere Merkmale
? Geh?usetyp: SMT package 0402, farbloser diffuser Verguss
? Technologie: InGaN
? Abstrahlwinkel bei 50 % IV: 115° (horizontal); 170° (vertical)
? Farbe: blau (470 nm)
? Optischer Wirkungsgrad (typ.): 9.8 lm/W (blau)
? ESD - Festigkeit: bis 2 kV nach ANSI/ESDA/JEDEC JS-001 (HBM)
Product Applications
? Backlighting
? Toys
? Signal and Symbol Luminary
? Optical Indicator
Product Anwendungen
? Hinterleuchtung
? Spielsachen
? Signal- und Symbolleuchten
? Optischer Indikator
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-Q65110A8032 |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | ams-OSRAM USA INC. |
| Series | CHIPLED 0402 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Color | Blue |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 49.5mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.50mm |
| Voltage - Forward (Vf) (Typ) | 2.85V |
| Current - Test | 5mA |
| Viewing Angle | 155°, 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 466nm |
| Wavelength - Peak | 472nm |
| Features | - |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 402 |
| Size / Dimension | 1.00mm L x 0.50mm W |
| Height (Max) | 0.40mm |
| Base Product Number | LBQH9G |

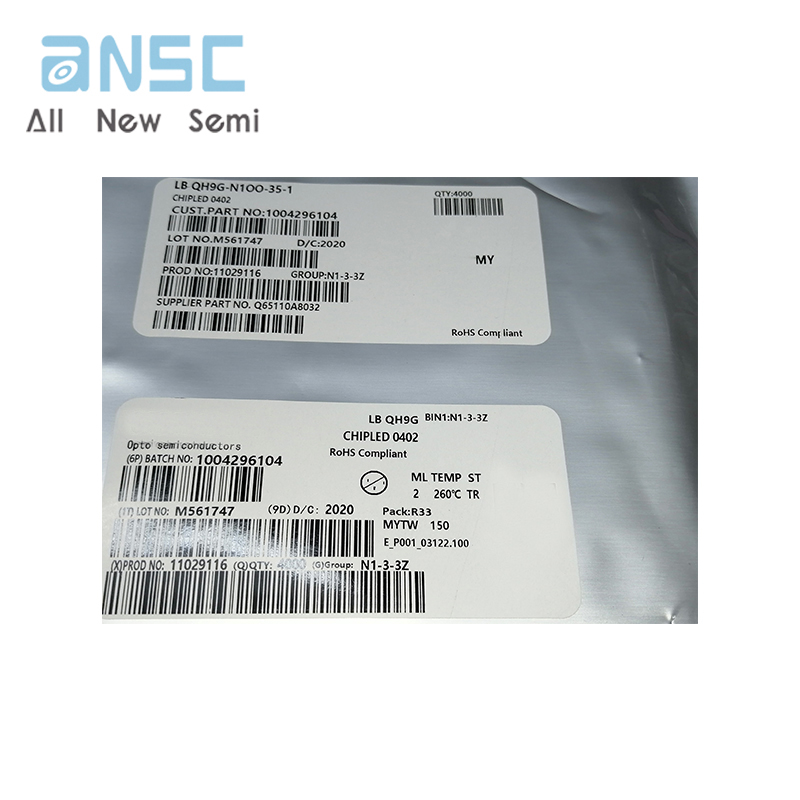

Actual product photos
Product Data Book：
For more product information, please download the PDF
