Product Features
? Surface Mount / Single Turn / Cermet Industrial / Sealed
? Compatible with surface mount manufacturing processes
? Compatible with popular vacuum pick-and-place equipment
? J-hook, gull-wing & pinned configurations
? Side adjust available
? Meets EIA/EIAJ/IPC/VECI SMD standard trimmer designs
? RoHS compliant* - see processing information on lead free surface mount trimmers
? For trimmer applications/processing guidelines, click here
? AEC-Q200 Qualified Grade 1
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-3314G-1-503E |
| Category | Potentiometers, Variable Resistors |
| Trimmer Potentiometers | |
| Mfr | Bourns Inc. |
| Series | Trimpot?3314 - Sealed |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Resistance | 50 kOhms |
| Power (Watts) | 0.25W, 1/4W |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 1 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Size / Dimension | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
| Base Product Number | 3314G |

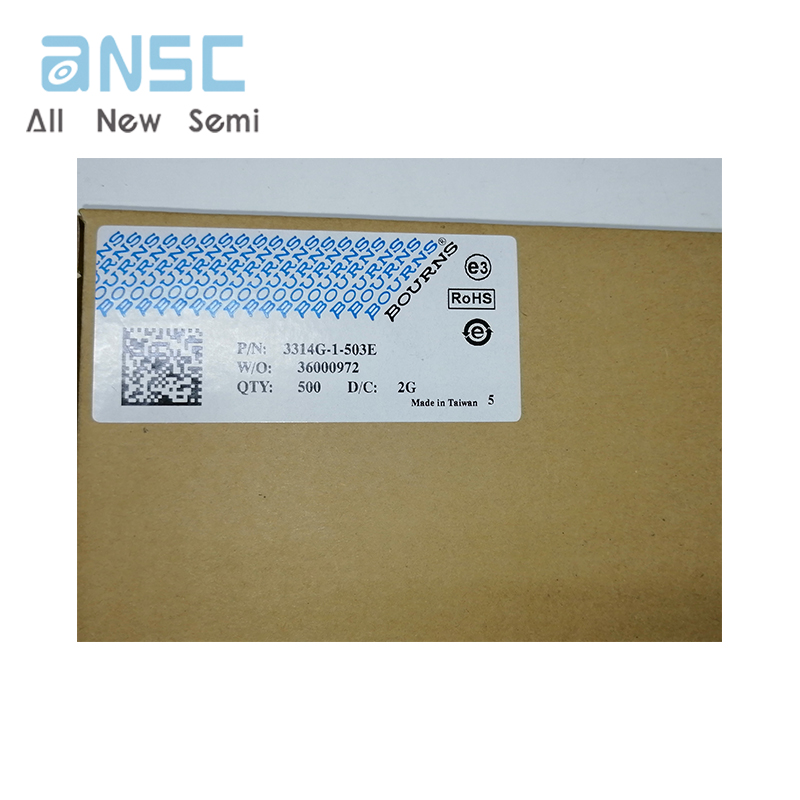

Actual product photos

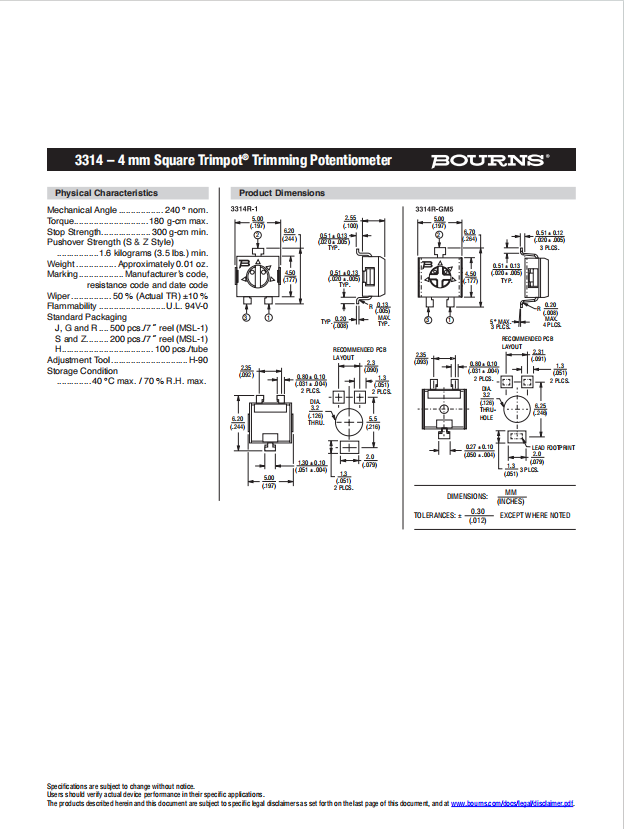

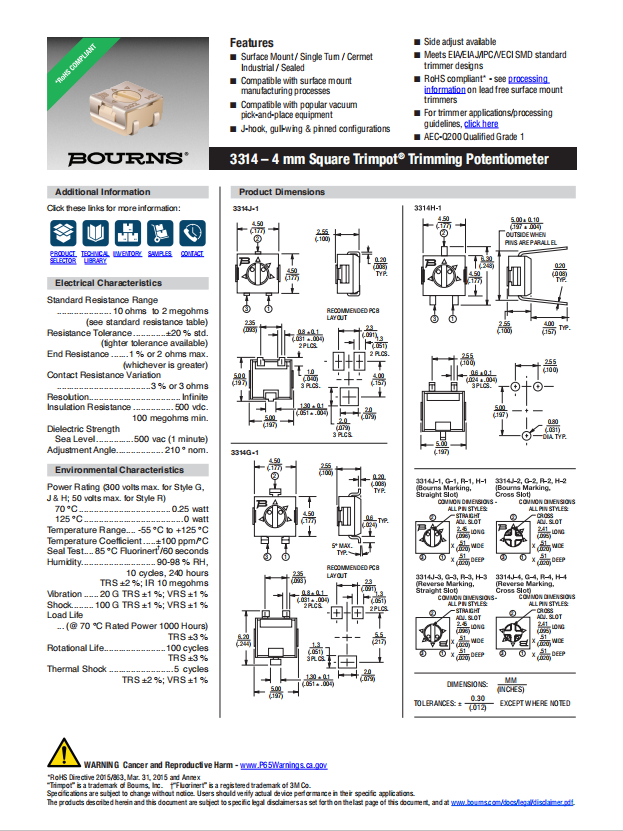

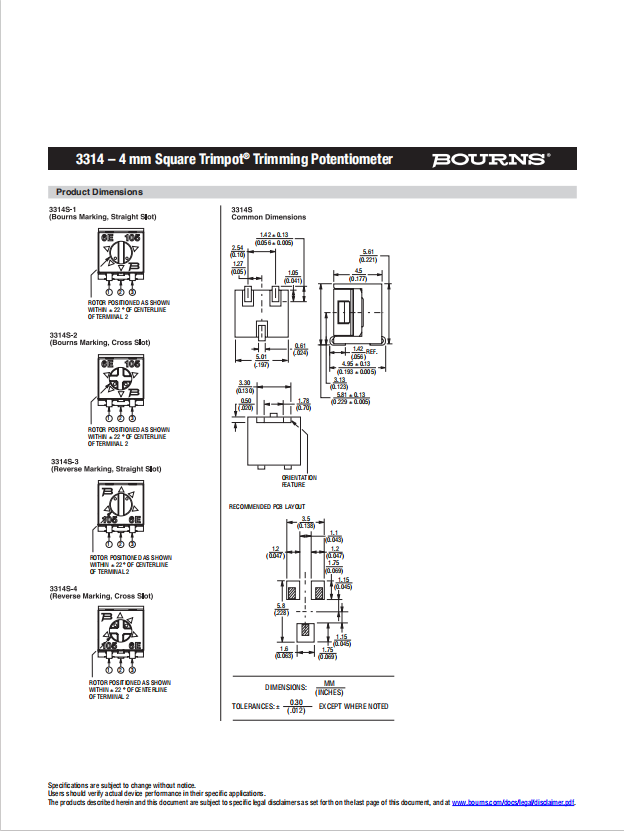

Product Data Book：
For more product information, please download the PDF
