Product FEATURES
? Magnetic shield type wound inductor for power circuits.
? Low-profile product.
? Magnetic shield construction with ferrite core.
? Operating temperature range: –40 to +105°C (including self-temperature rise)
Product APPLICATION
? Power source inductor for mobile devices such as HDDs, DVCs, and DSCs
? LCDs, other DC to DC converters
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-VLCF5020T-220MR75-1 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | VLCF |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 μH |
| Tolerance | ±20% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | 750mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 496mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |

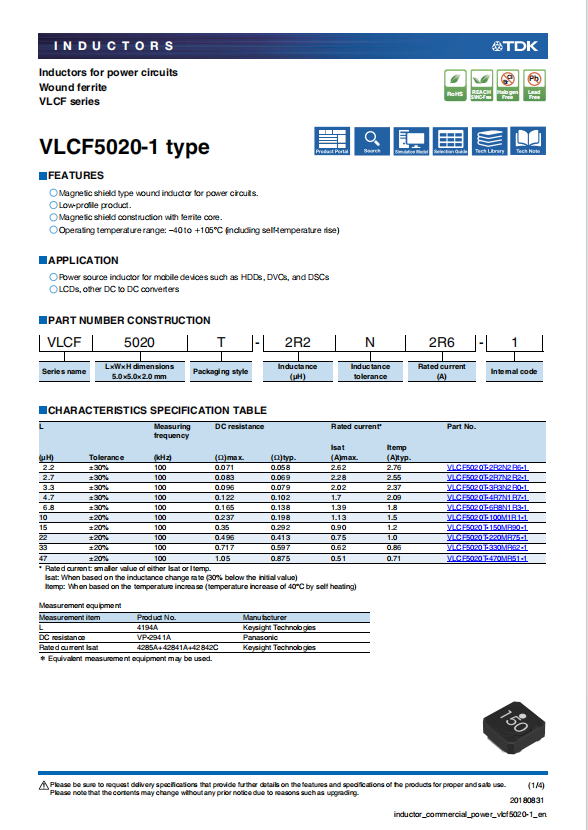

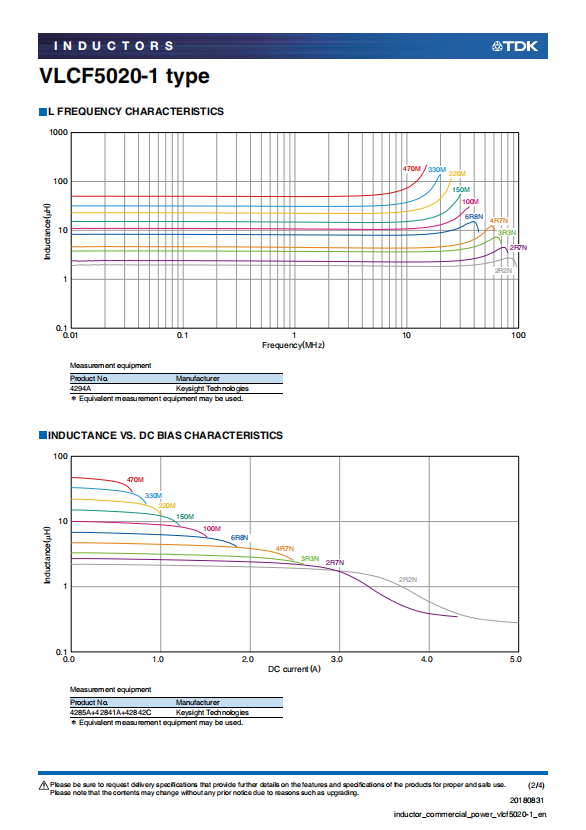

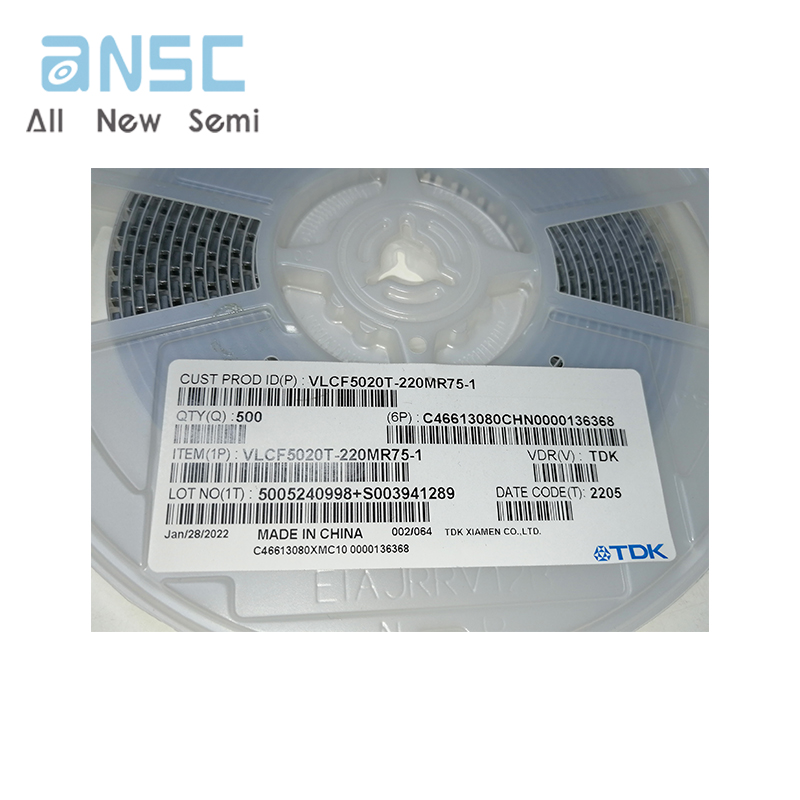

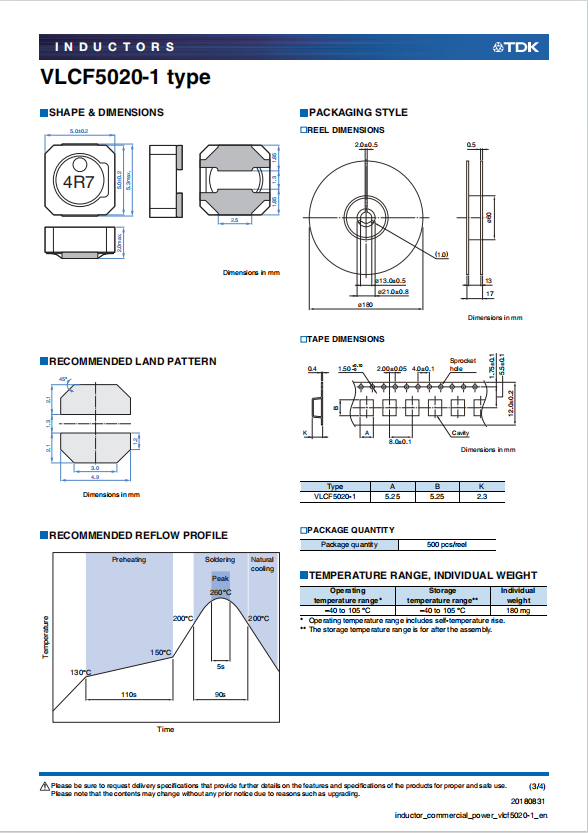

Actual product photos
