Product Features
● P-LCC-2 package
● color of package: white
● for use as optical indicator
● for backlighting, optical coupling into light pipes and lenses
● suitable for all SMT assembly and soldering methods
● available taped on reel (8 mm tape)
● load dump resistant acc. to DIN 40839
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-54F38DM |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | ams-OSRAM USA INC. |
| Series | TOPLED? |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Obsolete |
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 19.6mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm |
| Wavelength - Peak | 565nm |
| Features | - |
| Package / Case | 2-PLCC |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |

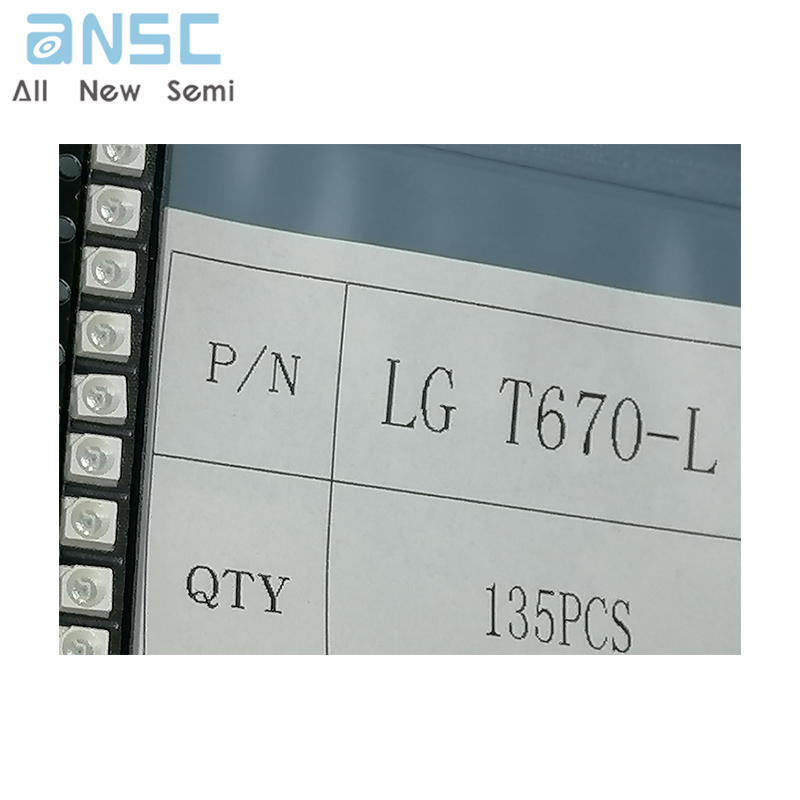

Actual product photos

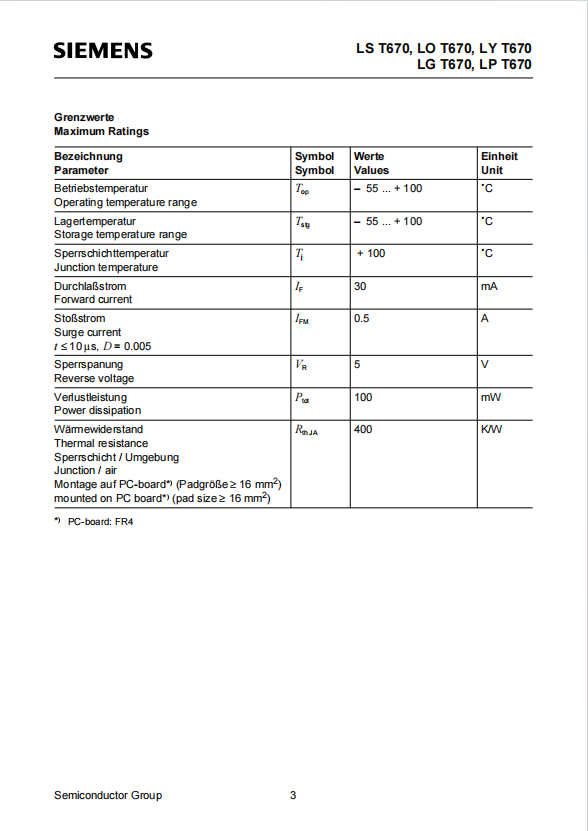

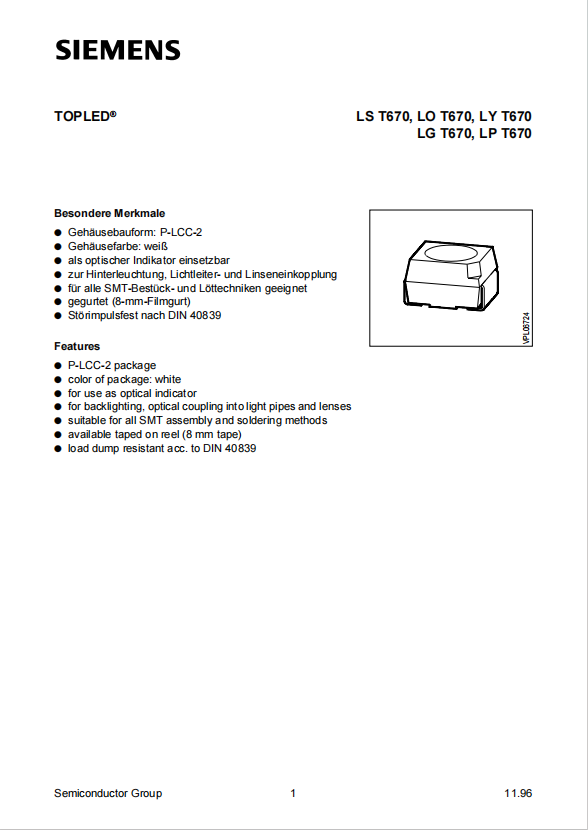

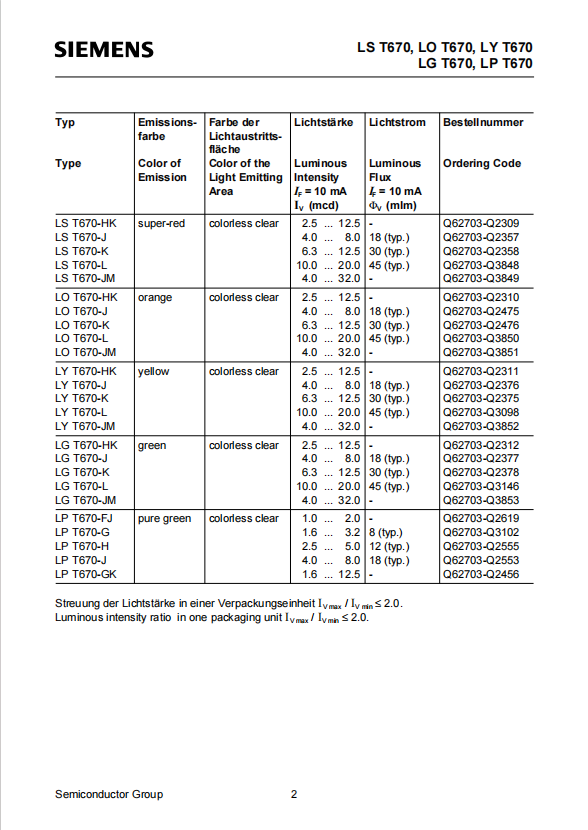

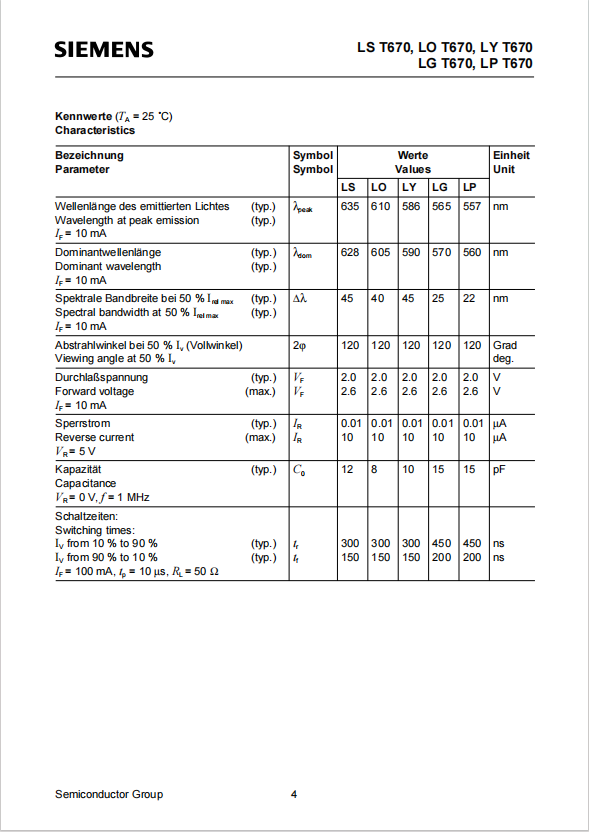

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
