Product Descriptions

The SAS35xR expanders are the second series of high performance 12 Gb/s SAS expanders that utilize a new, power-optimized design to deliver best in class power utilization and the latest enhancements in SAS technology. The 36-, 28- and 24-port expanders offer a smaller footprint and are equipped with an integrated ARM Cortex-R4 processor for system initialization, LED management, enclosure management, and topology management functions such as discovery. The SAS35xR expanders support end device SAS data transfer rates of 12, 6, 3 Gb/s, and SATA data transfer rates of 6 and 3 Gb/s.

Representing the eighth generation of SAS expanders, the SAS35xR series adds a suite of enhanced power management features encompassing the ability to create vendor-unique SMP or SES commands. Firmware features include:

? SAS PHY Power Conditions

? Partial and Slumber Power Management

? Wake-In-Band and Enter/Exit Chip Wide-Low Power modes.

Product Features

? Integrated enclosure processor

– ARM Cortex-R4 @ 300 MHz

? 12 Gb/s SAS interface

– 36-, 28-, 24-port SAS/SATA  expanders

– Supports 12 Gb/s, 6 Gb/s, and  3 Gb/s SAS, and 6 Gb/s and 3 Gb/s SATA data transfer rates

– Ports are non-denominational - initiator and target connect

– Supports narrow and wide port configurations

– Spread Spectrum Clocking

– Supports SSP initiator and target, SMP initiator and target, STP initiator and SATA protocols

– DataBolt Bandwidth Optimizer (all ports)

Product Applications

? SAS/SATA drive enclosures

? External RAID subsystems

? JBOD architectures

? Server backplanes

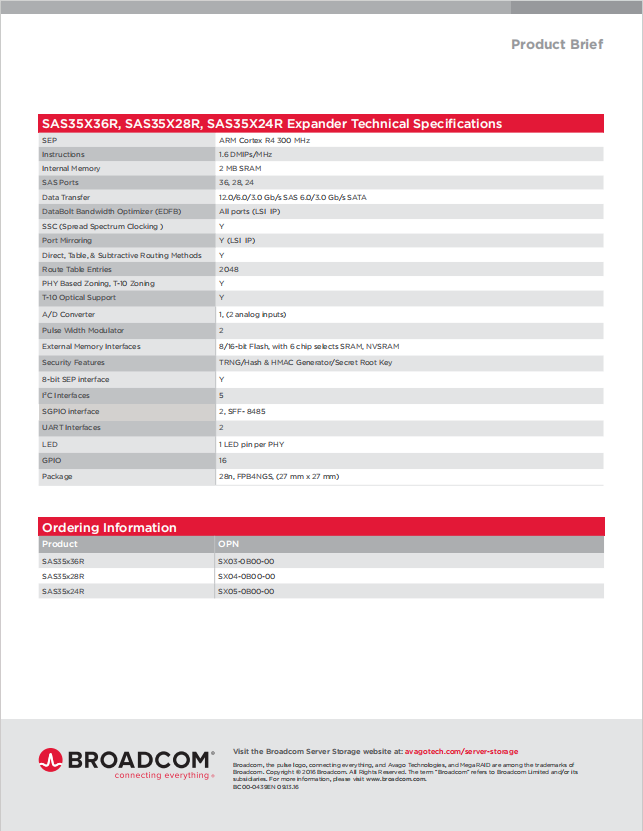

  Specifications

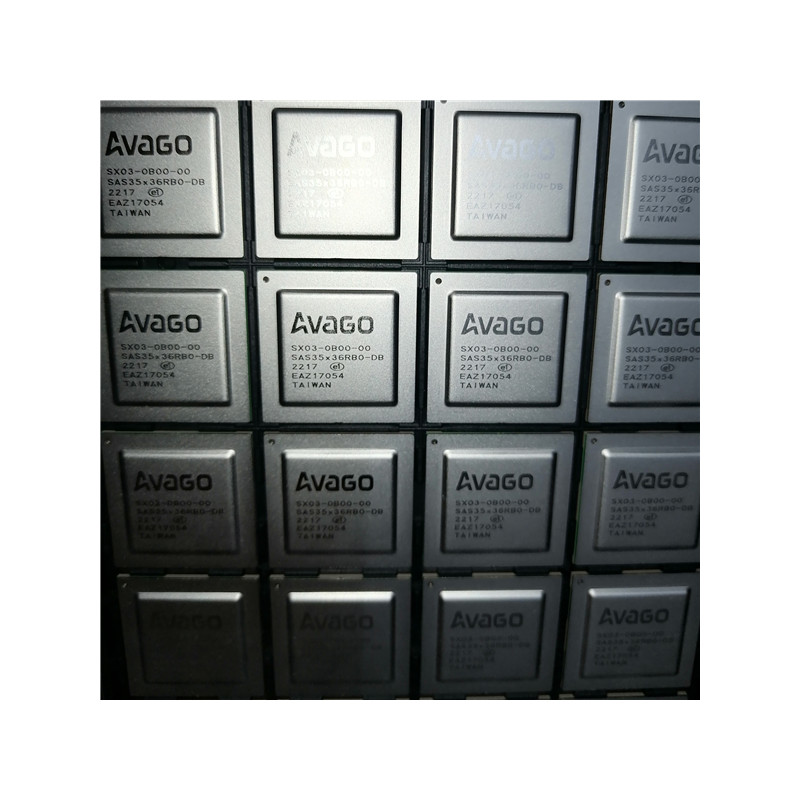

Actual product photos

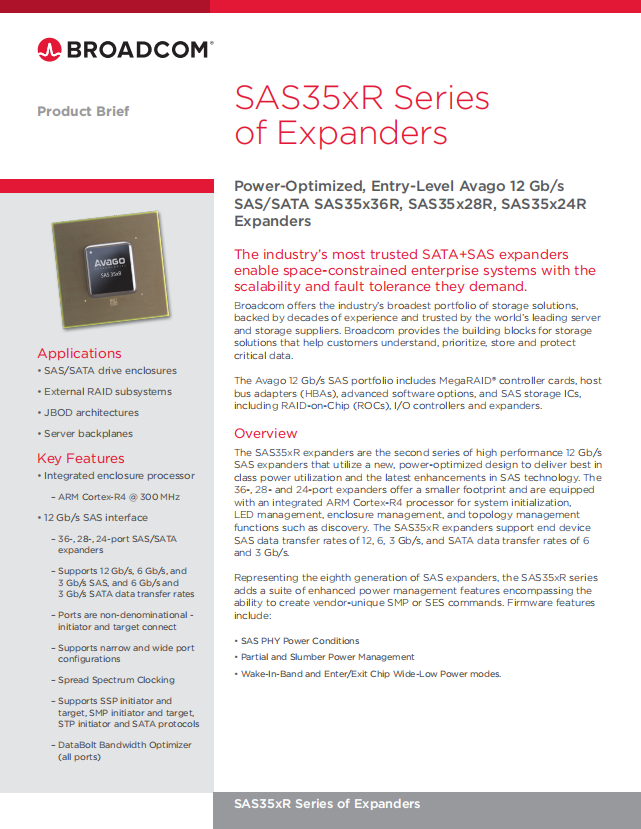

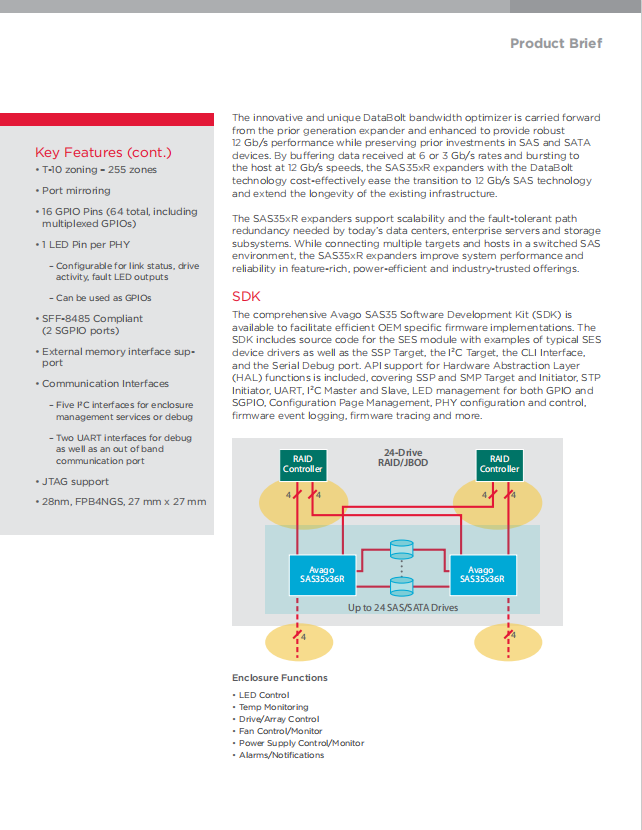

Product Data Book：

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
