Product DESCRITIONS

The DS25M4BA (256M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 256M series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 1.65V to 1.95V  power supply with current consumption as low as 13mA active and 5μA for power-down. All devices are offered in space- saving packages.

The DS25M4BA array is organized into 131,072 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase).

The DS25M4BA has 8,192 erasable sectors and 512 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. (See Figure2.)

The DS25M4BA support the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI as well as 2-clocks instruction cycle Quad Peripheral Interface (QPI) as well as Double Transfer Rate(DTR) :Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (/WP), and I/O3 (/HOLD). SPI clock frequencies of up to 104MHz are supported allowing equivalent clock rates of 216MHz for Dual I/O and 432 for Quad I/O when using the Fast Read Dual/Quad I/O and QPI instructions. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories. The Continuous Read Mode allows for efficient memory access with as few as 8-clocks of instructionoverhead to read a 24-bit address, allowing true XIP (execute in place) operation.

A Hold pin, Write Protect pin and programmable write protection, with top or bottom array control, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device ID and SFDP Register, a 64-bit Unique Serial Number and three 256-bytes Security Registers.

Product Features

? New Family of SPI Flash Memories

– DS25M4BA: 256M-bit /32M-byte

– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold

– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold

– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3

– QPI: CLK, /CS, IO0, IO1, IO2, IO3

– Quad/QPI DTR(Double Transfer Rate) Read

? Highest Performance Serial Flash

– 104MHz Single, Dual/Quad SPI clocks

– More than 100,000 erase/program cycles

– More than 20-year data retention

– Burst Read with 8/16/32/64 Byte Wrap

? Efficient “Continuous Read” and QPI Mode

– Continuous Read with 8/16/32/64-ByteWrap

– Quad Peripheral Interface (QPI) reduces

instruction overhead

– Allows true XIP (execute in place) operation

? High performance program/erase speed

– Page program time: 0.7ms typical

– Sector erase time: 50ms typical

– 32KB Block erase time 150ms typical

– 64KB Block erase time 300ms typical

– Chip erase time: 80 seconds typical

? Low Power Consumption

– Full voltage range: 1.65-1.95V

– 18 mA maximum active read current

– 25 μA maximum Deep power down current

? Wide Temperature Range

– -40°C to +85°C operating range

? Flexible Architecture with 4KB sectors

– Uniform Sector/Block Erase (4K/32K/64K-Byte)

– Program 1 to 256 byte per programmable page

– Erase/Program Suspend & Resume

? Advanced Security Features

– Software and Hardware Write-Protect

– Power Supply Lock-Down and OTP protection

– Top/Bottom, Complement array protection

– 64-Bit Unique ID for each device

– Support Serial Flash Discoverable Parameters

(SFDP) signature

– 3 sets of OTP lockable 256 byte security pages

– Volatile & Non-volatile Status Register Bits

? Space Efficient Packaging

– 8-pin SOP 208-mil

– 8-pad WSON 6x5-mm

– 21-WLCSP

– Contact Dosilicon for KGD and other option

  Specifications

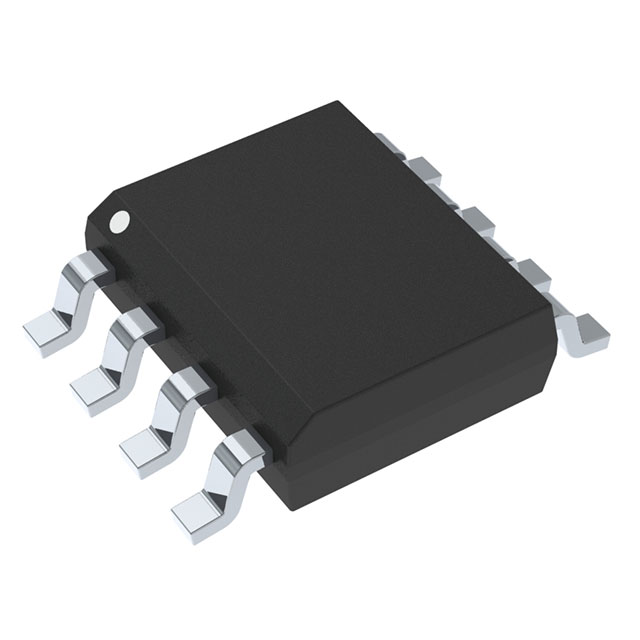

Actual product photos

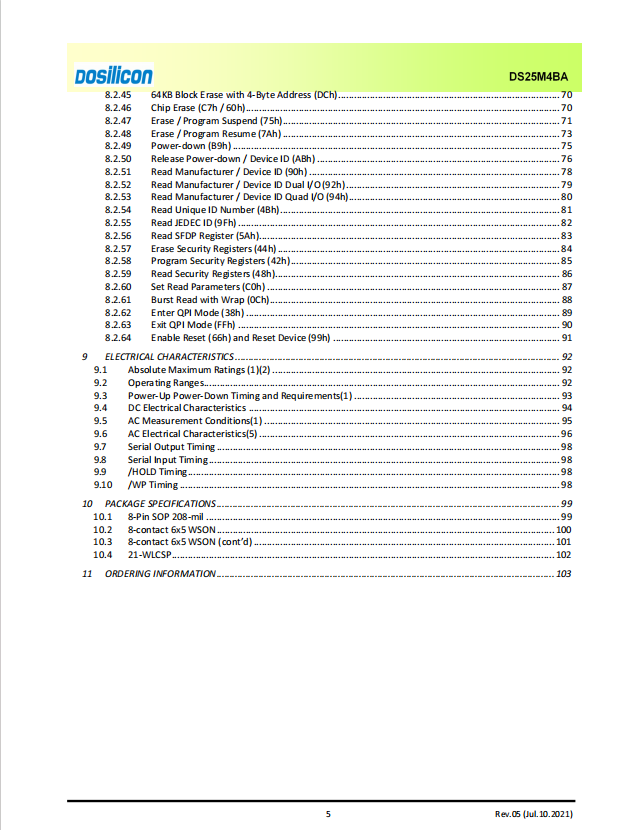

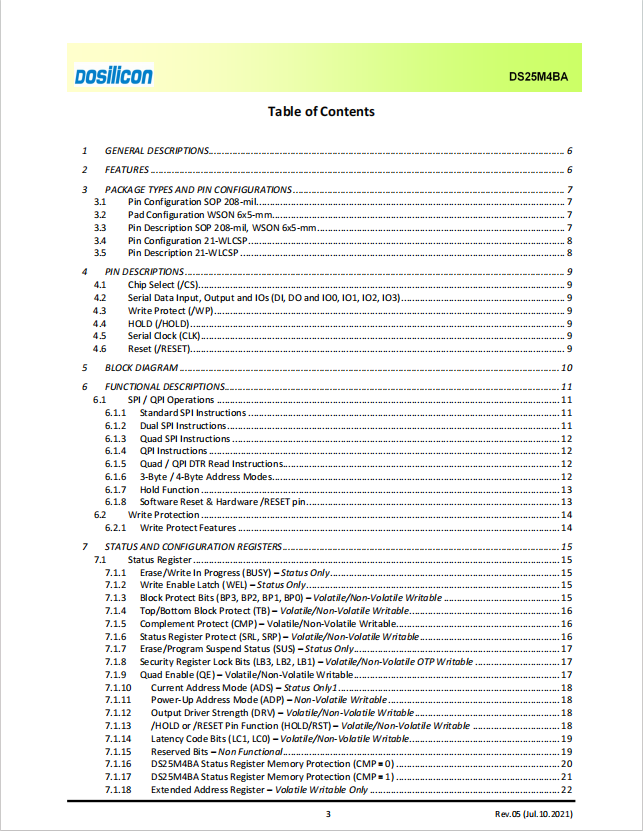

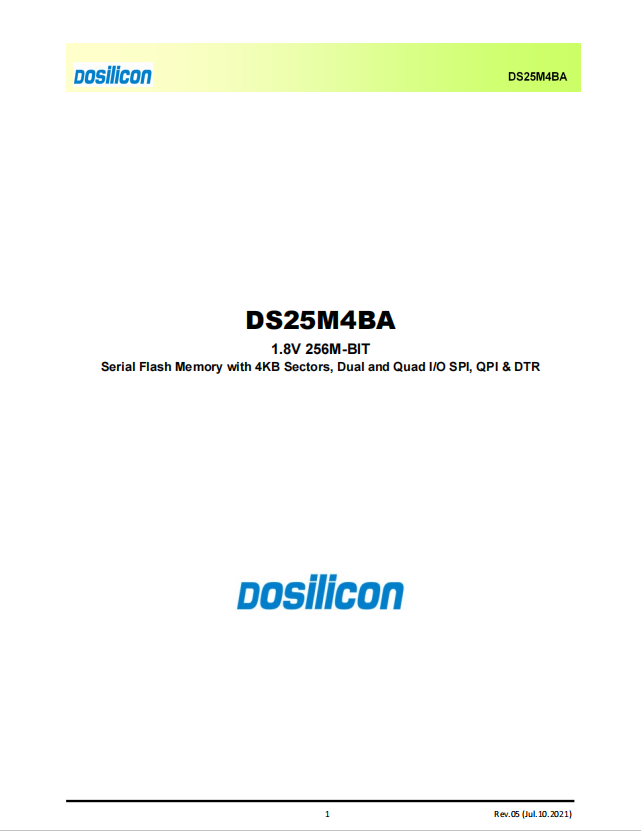

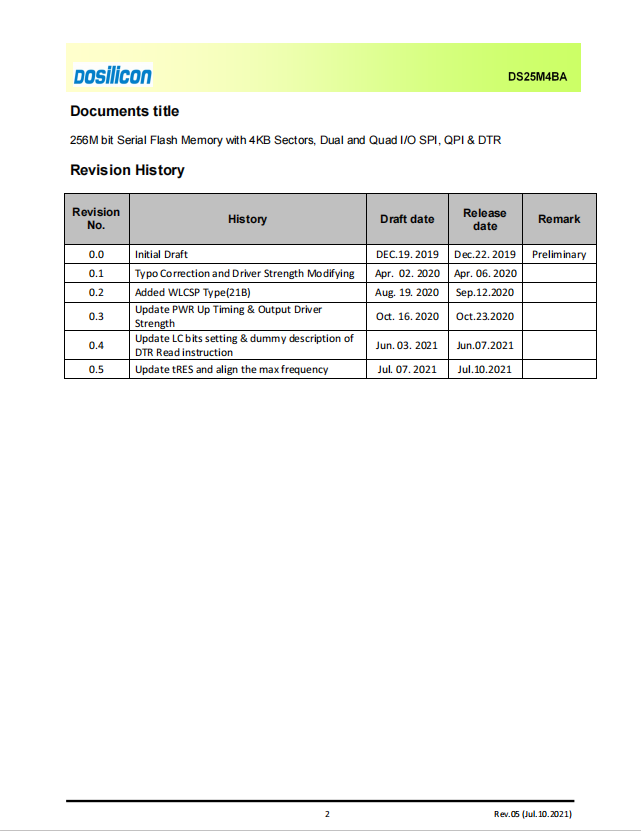

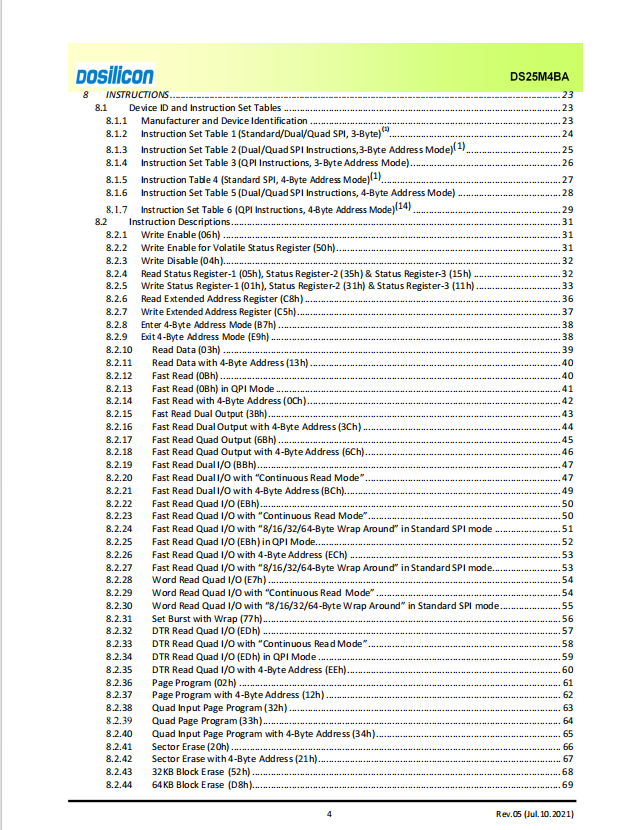

Product Data Book：

For more product information, please download the PDF
