Product Features

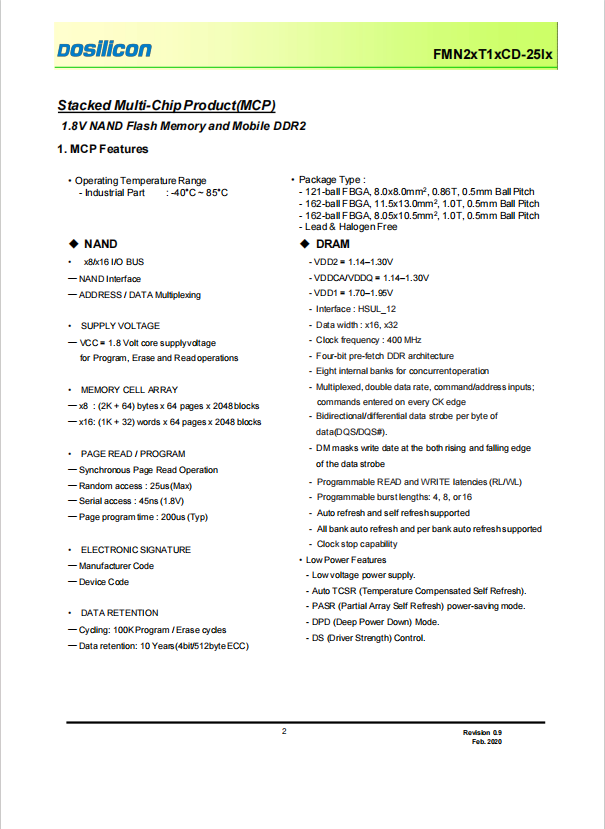

1. MCP Features

? Operating Temperature Range

- Industrial Part : -40°C ~ 85°C

? NAND

? x8/x16 I/O BUS

— NAND Interface

— ADDRESS / DATA Multiplexing

? SUPPLY VOLTAGE

— VCC = 1.8 Volt core supplyvoltage

for Program, Erase and Readoperations

? MEMORY CELL ARRAY

— x8 : (2K + 64) bytes x 64 pages x 2048 blocks

— x16: (1K + 32) words x 64 pages x 2048 blocks

? PAGE READ / PROGRAM

— Synchronous Page Read Operation

— Random access : 25us (Max)

— Serial access : 45ns (1.8V)

— Page program time : 200us (Typ)

? ELECTRONIC SIGNATURE

— Manufacturer Code

— Device Code

? DATA RETENTION

— Cycling: 100K Program / Erase cycles

— Data retention: 10 Years(4bit/512byteECC)

? Package Type :

- 121-ball FBGA, 8.0x8.0mm2, 0.86T, 0.5mm BallPitch

- 162-ball FBGA, 11.5x13.0mm2, 1.0T, 0.5mm Ball Pitch

- 162-ball FBGA, 8.05x10.5mm2, 1.0T, 0.5mm Ball Pitch

- Lead & Halogen Free

? DRAM

- VDD2 = 1.14–1.30V

- VDDCA/VDDQ = 1.14–1.30V

- VDD1 = 1.70–1.95V

- Interface : HSUL_12

- Data width : x16, x32

- Clock frequency : 400 MHz

- Four-bit pre-fetch DDR architecture

- Eight internal banks for concurrentoperation

- Multiplexed, double data rate, command/address inputs;

commands entered on every CK edge

- Bidirectional/differential data strobe per byte of

data(DQS/DQS#).

- DM masks write date at the both rising and falling edge

of the data strobe

- Programmable READ and WRITE latencies(RL/WL)

- Programmable burst lengths: 4, 8, or 16

- Auto refresh and self refresh supported

- All bank auto refresh and per bank auto refresh supported

- Clock stop capability

? Low Power Features

- Low voltage power supply.

- Auto TCSR (Temperature Compensated Self Refresh).

- PASR (Partial Array Self Refresh) power-saving mode.

- DPD (Deep Power Down) Mode.

- DS (Driver Strength) Control.

  Specifications

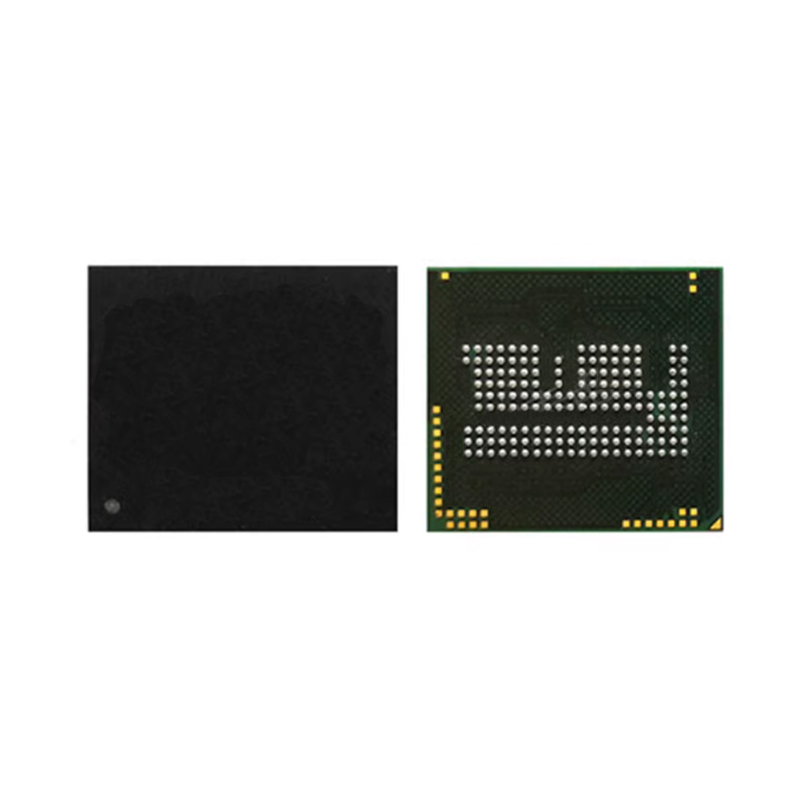

Actual product photos

Product Data Book：

For more product information, please download the PDF
