Product Features

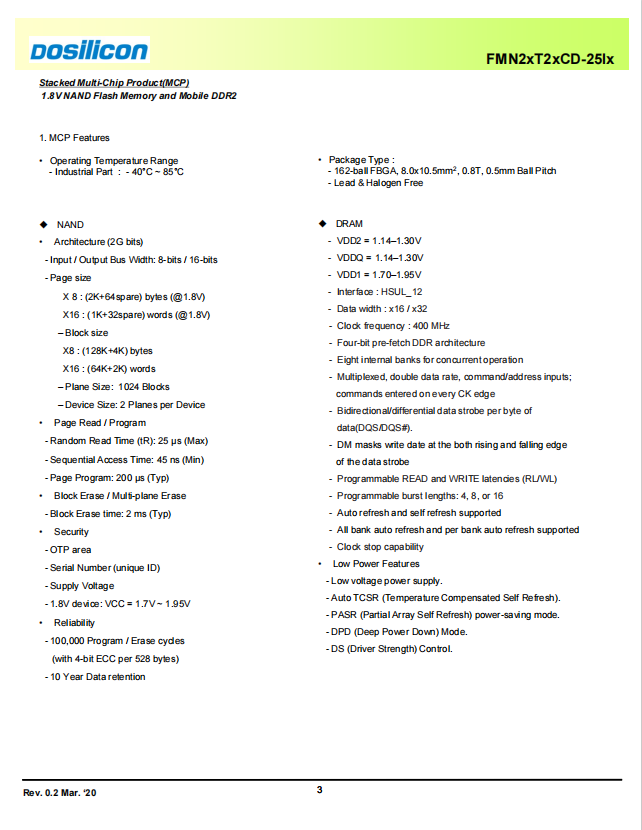

1. MCP Features

? Operating Temperature Range

 - Industrial Part : - 40°C ~ 85°C

? Package Type :

 - 162-ball FBGA, 8.0x10.5mm2, 0.8T, 0.5mm Ball Pitch

 - Lead & Halogen Free

? DRAM

 - VDD2 = 1.14–1.30V

 - VDDQ = 1.14–1.30V

 - VDD1 = 1.70–1.95V

 - Interface : HSUL_12

 - Data width : x16 / x32

- Clock frequency : 400 MHz

- Four-bit pre-fetch DDR architecture

- Eight internal banks for concurrent operation

- Multiplexed, double data rate, command/address inputs;

 commands entered on every CK edge

- Bidirectional/differential data strobe per byte of

 data(DQS/DQS#).

- DM masks write date at the both rising and falling edge

 of the data strobe

- Programmable READ and WRITE latencies (RL/WL)

- Programmable burst lengths: 4, 8, or 16

- Auto refresh and self refresh supported

- All bank auto refresh and per bank auto refresh supported

- Clock stop capability

? Low Power Features

 - Low voltage power supply.

 - Auto TCSR (Temperature Compensated Self Refresh).

 - PASR (Partial Array Self Refresh) power-saving mode.

 - DPD (Deep Power Down) Mode.

 - DS (Driver Strength) Control.

? NAND

? Architecture (2G bits)

 - Input / Output Bus Width: 8-bits / 16-bits

- Page size

 X 8 : (2K+64spare) bytes (@1.8V)

 X16 : (1K+32spare) words (@1.8V)

 – Block size

 X8 : (128K+4K) bytes

 X16 : (64K+2K) words

 – Plane Size: 1024 Blocks

 – Device Size: 2 Planes per Device

? Page Read / Program

 - Random Read Time (tR): 25 μs (Max)

 - Sequential Access Time: 45 ns (Min)

 - Page Program: 200 μs (Typ)

? Block Erase / Multi-plane Erase

 - Block Erase time: 2 ms (Typ)

? Security

 - OTP area

 - Serial Number (unique ID)

 - Supply Voltage

 - 1.8V device: VCC = 1.7V ~ 1.95V

? Reliability

 - 100,000 Program / Erase cycles

 (with 4-bit ECC per 528 bytes)

 - 10 Year Data retention
