Product Specifications

? Density: 4G bits

? Organization

— 128M word x4 bits x 8 banks

— 64M word x8 bits x 8banks

— 32M word x16 bits x 8 banks

? Package

— 78-ball FBGA(X4/X8)

— 96-ball FBGA(X16)

— Lead-free (RoHS compliant) and Halogen-free

? Power supply: 1.35V (typ) of 1600

— VDD = 1.283V to 1.45V

— Backward compatible for VDD, VDDQ= 1.5V ± 0.075V

? Power supply: 1.5V ± 0.075V (typ) of 1866

? Data rate

— 1600Mbps/1333 Mbps (1.35V)

— 1866 Mbps (1.5V)

? 1KB page size

— Row address: A0 to A15(X4/X8)

— Column address: A0 to A9,A11(X4)

Product Features

? Double-data-rate architecture: two data transfers per clock cycle

? The high-speed data transfer is realized by the 8 bits prefetch pipelined architecture

? Bi-directional differential data strobe (DQS and /DQS) is transmitted/received with data for capturing data at the receiver

? DQS is edge-aligned with data for READs; centeraligned with data for WRITEs

? Differential clock inputs (CK and /CK)

? DLL aligns DQ and DQS transitions with CK transitions

? Commands entered on each positive CK edge; data and data mask referenced to both edges of DQS

? Data mask (DM) for write data

? Posted /CAS by programmable additive latency for better command and data bus efficiency

? On-Die Termination (ODT) for better signal quality

— Synchronous ODT

— Dynamic ODT

? 2KB page size A0 to A9(X8)

— Row address: A0 to A14(X16)

— Column address: A0 to A9(X16)

? Eight internal banks for concurrent operation

? Burst length (BL): 8 and 4 with Burst Chop (BC)

? Burst type (BT):

— Sequential (8, 4 with BC)

— Interleave (8, 4 with BC)

? /CAS Latency (CL): 5, 6, 7, 8, 9, 10, 11,13(1866)

? /CAS Latency (CL): 5, 6, 7, 8, 9, 10, 11(1600/1333)

? /CAS Write Latency (CWL): 5, 6, 7, 8,9(1866)

? /CAS Write Latency (CWL): 5, 6, 7, 8(1600/1333)

? Precharge: auto precharge option for each burst access

? Driver strength: RZQ/7, RZQ/6 (RZQ = 240Ω)

? Refresh: auto-refresh, self-refresh

? Refresh cycles

— Average refresh period

7.8μs at 0°C ≤ TC ≤+85°C

3.9μs at +85°C < TC ≤+95°C

? Operating case temperature range

— TC = 0°C to +95°C

— Asynchronous ODT

? Multi Purpose Register (MPR) for pre-defined pattern

read out

? ZQ calibration for DQ drive and ODT

? Programmable Partial Array Self-Refresh (PASR)

? /RESET pin for Power-up sequence and reset function

? SRT range:

— Normal/extended

? Programmable Output driver impedance control

  Specifications

Actual product photos

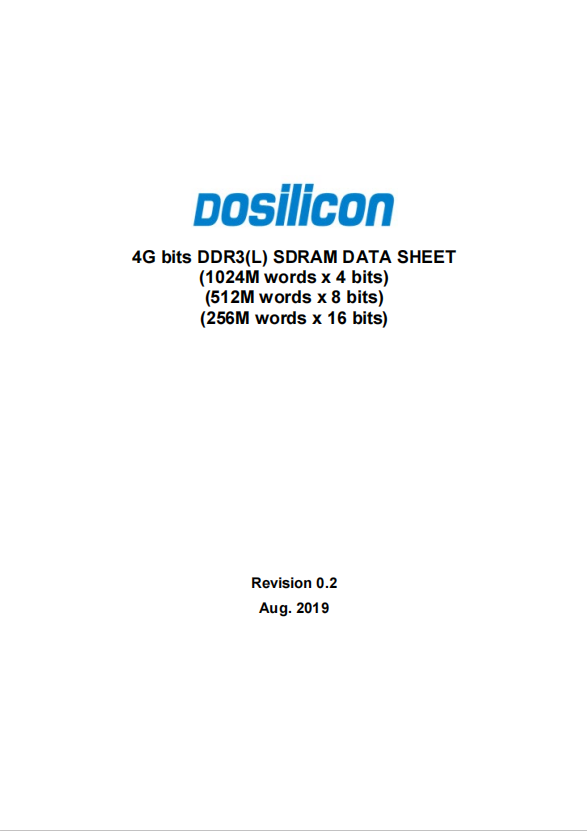

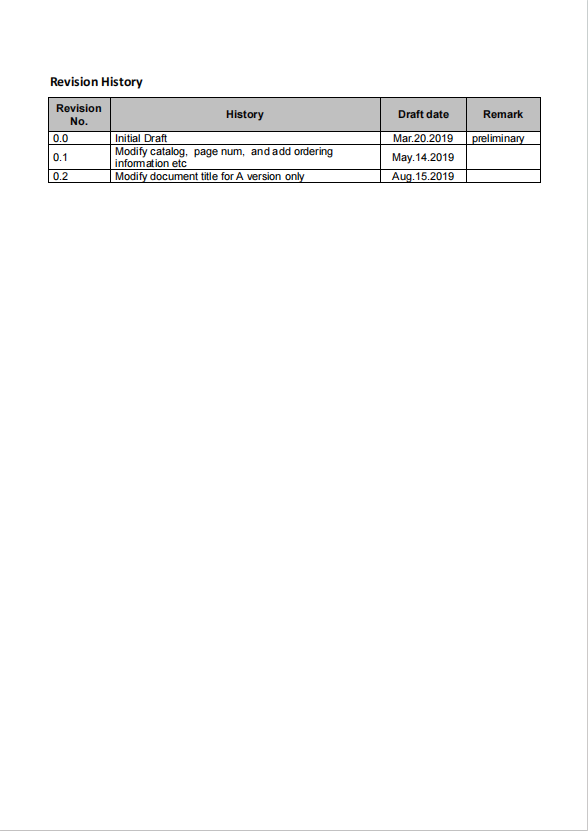

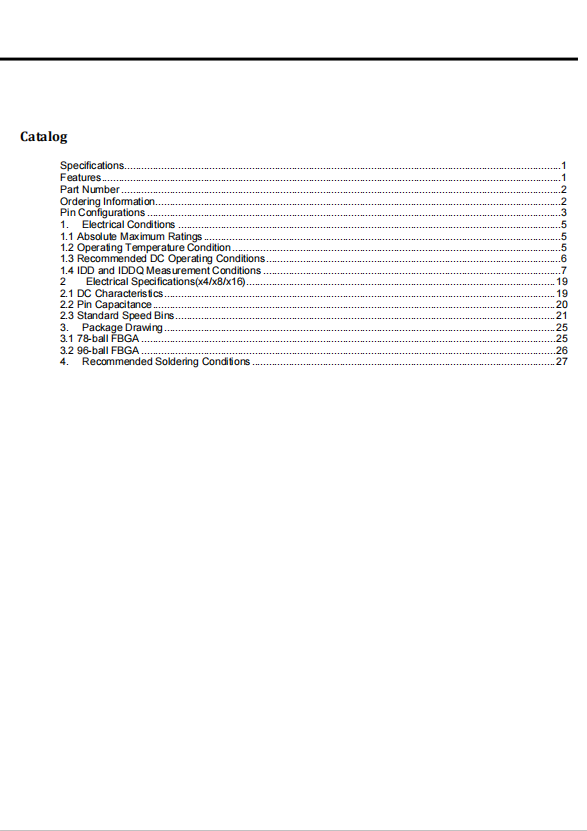

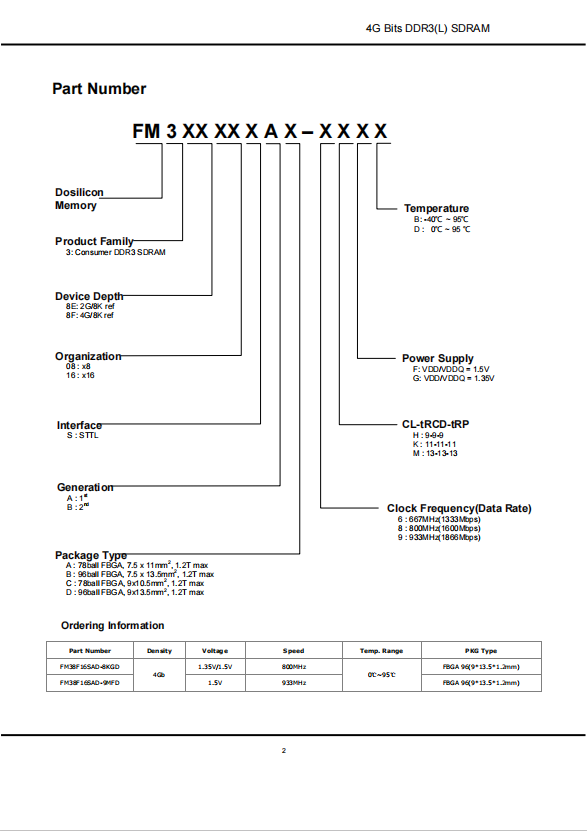

Product Data Book：
