Product Descriptions

CX32L003 is an embedded 32-bit ARM ? Cortex ?- A microcontroller with M0+core, ultra-low power consumption, Low Pin Count, and wide voltage operating range (2.5V~5.5V), capable of running up to 24MHz, built-in 32K/64K bytes of embedded Flash, 4K bytes of SRAM, integrated with 12 bit 1Msps high-precision SAR type ADC, RTC, comparator, multi-channel UART, SPI, I2C, PWM and other rich peripheral connections

Mouth has the characteristics of high integration, high anti-interference, and high reliability.

The CX32L003 series has advantages such as wide voltage operating range, low power consumption, low standby current, high integration of peripherals, high operating efficiency, fast wake-up, and high cost-effectiveness, and is widely suitable for the following applications:

Small household appliances, chargers, remote controls, electronic cigarettes, gas alarms, digital meters, temperature controllers, recorders, motor drives, smart door locks, smart sensors, smart homes, and smart cities.

Product Features

? Kernel

? ARM ? Cortex ?

-M0+kernel, running up to 24MHz

? A 24 bit system timer

? Supports low-power sleep mode

? Single cycle 32-bit hardware multiplier

? Memory

? 32K/64K bytes embedded Flash with write protection function

? 4K bytes SRAM

? Clock and power supply

? 4 optional clock sources

-External 4MHz~24MHz high-speed crystal oscillator

-External 32.768KHz crystal oscillator

-Internal 4MHz~24MHz high-speed clock

-Internal low-speed 38.4KHz/32.768KHz clock

-Support hardware clock monitoring

? Power management

-Two low-power operating modes: Sleep and Deep Sleep Mode

-Low voltage detection, configurable for interruption or reset

? Interrupt

? Nested Vector Interrupt Controller (NVIC) is used to control 32 interrupt sources, with each Interrupt sources can be set to 4 priorities

? Supports serial debugging (SWD) with 2 observation points/4 breakpoints

? Universal I/O pins

? 16 I/Os in a 20 Pin package

? Communication interface

? UART0-UART1 standard communication interface

? Ultra Low Power UART with Low Speed Clock Support

? SPI standard communication interface, up to 8Mbps

? I2C standard communication interface, supports up to 1Mbps in main mode, and slave mode Supports up to 800Kbps

? One Wire communication interface

? Buzzer frequency generator

? Can generate a buzzing signal of 1KHz, 2KHz, and 4KHz

? Timer/Counter

? 1x16 bit advanced control timer: with 4 channels of PWM output/input capture Obtain, support 3 complementary outputs, as well as dead zone generation and emergency stop function

? 1x16 bit universal timer, supporting 4-way comparison output/input capture PWM output

? 1x16 bit programmable timer array, supporting 5 input capture/comparison inputs Output, PWM output

? 2x16/32-bit basic timer/counter

? 1x16 bit low-power timer

? Automatic wake-up timer

? System Window Watchdog and Independent Watchdog Timer

? RTC

? Supports RTC counting (seconds/minutes/hours) and perpetual calendar function (days/months/years)

? Support alarm function register (seconds/minutes/hours/days/months/years)

? Support RTC to wake up the system from Deep Sleep mode

? ADC

? 7-channel 12 bit 1Msps sampling rate, 12 bit SAR type ADC

? Voltage Comparator (VC)/Low Voltage Detector (LVD)

? Hardware CRC-16 module

? Working conditions

? Wide voltage operating range from 2.5V to 5.5V

? Wide operating frequency up to 24MHz

? Working temperature: -40 ° C to+85 ° C

? 16 byte chip unique ID (UID)

? Development tools

? A fully functional embedded debugging solution

? In System Programming (ISP Programming) Solution

? Packaging form: TSSOP20, QFN20

  Specifications

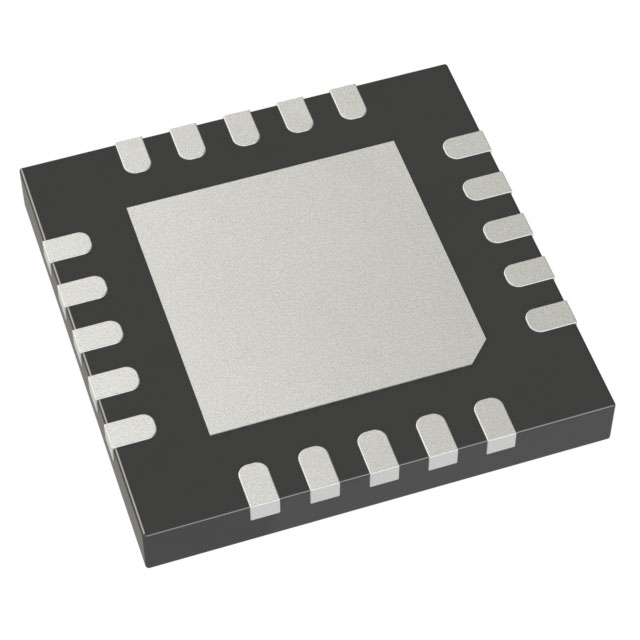

Actual product photos
