Product Descriptions

The HT5010/1/2 family is a low-cost stereo digital to analog converter, including interpolation, multibit D/A conversion and output analog filtering in a 10-pin package.

The device family can accept multiple audio formats up to 24-bit word length.

The device family is based on an advanced multi-bit Δ-Σ modulator to convert data into two channel analog outputs with a linear analog low-pass filter.

The multi-bit Δ-Σ modulator makes the device with very low sensitivity to clock jitter and very low out-of-band noise. It also includes auto speed mode detection using both sample rate and master clock ratio as a method of auto-selecting sampling rates between 2 kHz and 200 kHz.

The device family contains on-chip digital deemphasis, operates from a single +3.3 V power supply, and requires minimal support circuitry. These features are ideal for DVD players & recorders, digital televisions, home theater and set top box products, and automotive audio systems.

The device family is available in a 10-pin MSOP package.

Product Features

?Multiple audio data interface formats, up to 24-bit

?Automatically Detects Sample Rates up to 192kHz

?105dB Dynamic Range

?-90dB THD+N

?Multi-bit Delta-Sigma Modulator

?3.3V Single Power Supply

?Low Clock-Jitter Sensitivity

?Filtered Line-Level Outputs

?On-chip Digital De-emphasis

?Output pop-noise Minimization

?Small 10-pin MSOP Package

  Product Applications

?Speakers

?TV sets

?DVD Player

?Set top box

?Digital Photo Frame

?DVD recorder

?Home theater

?Automotive audio system

  Specifications

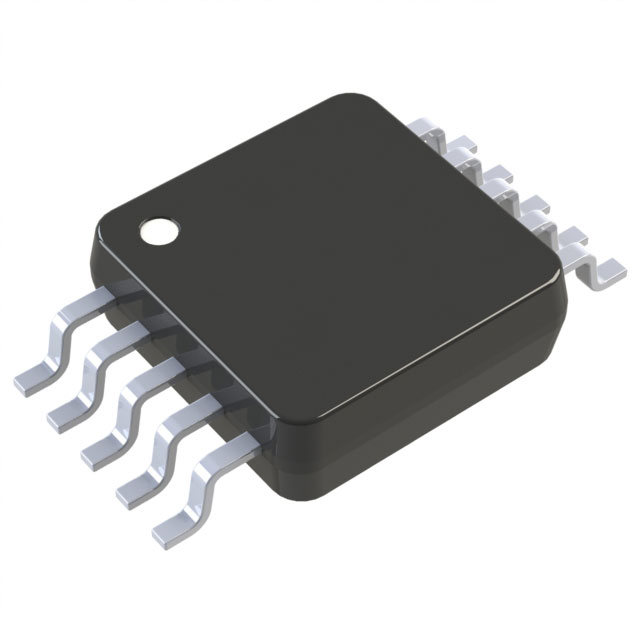

Actual product photos

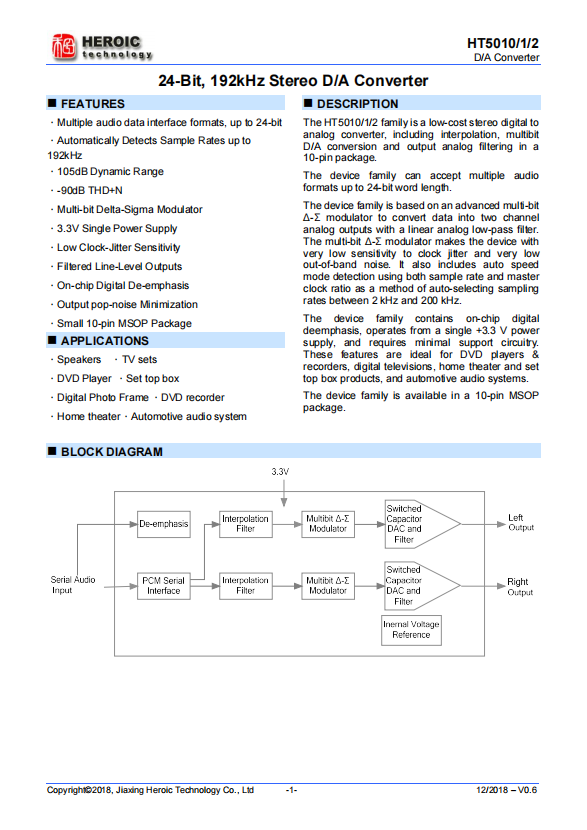

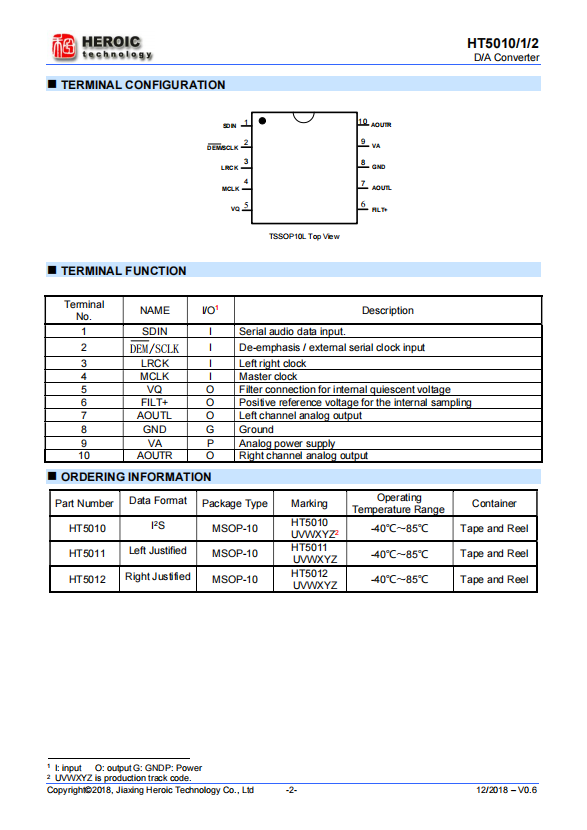

Product Data Book：

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
