Product Descriptions

HT4832/HT4831 is a stereo headphone amplifier that does not require output isolation capacitors.

HT4832/HT4831 supports differential and single ended analog signal input, and has four gain settings.

HT4832/HT4831 can provide a 33mW output under a 3.6V power supply, THD+N=1 percent, and a 32ohm load. It has THD+N as low as 0.014 percent.

HT4832/HT4831 can operate under 2.5V-5.5V power supply conditions and has functions such as overheating protection and undervoltage protection.

The shutdown current of HT4832/HT4831 is as low as 0.1 μ A.

Product Features

? No need for large-sized output isolation capacitors

 Output with 0V potential as reference;

 Excellent low-frequency performance;

? Static current: 3.6mA (PVDD=3.6V, Output=floating)

? Turn off current: 0.1uA

? Single ended or differential input

 Built in input resistor reduces the number of external components

 Excellent system noise performance

? THD+N is only 0.014 percent (3.6V, 32ohm, 20mW)

? Power output: 33mW (PVDD=3.6V, RL=32 ?,THD+N=1 percent)

? Single power supply: 2.5V-5.5V

? Gain optional: -6/0/3/6 dB

? Protection function: overheat/undervoltage abnormal protection function

? Lead free packaging, QFN16

  Product Applications

? Bluetooth earphones

? Smartphones

? Audio system

? Tablets/laptops

? CD/MP3

? Portable gaming console

  Specifications

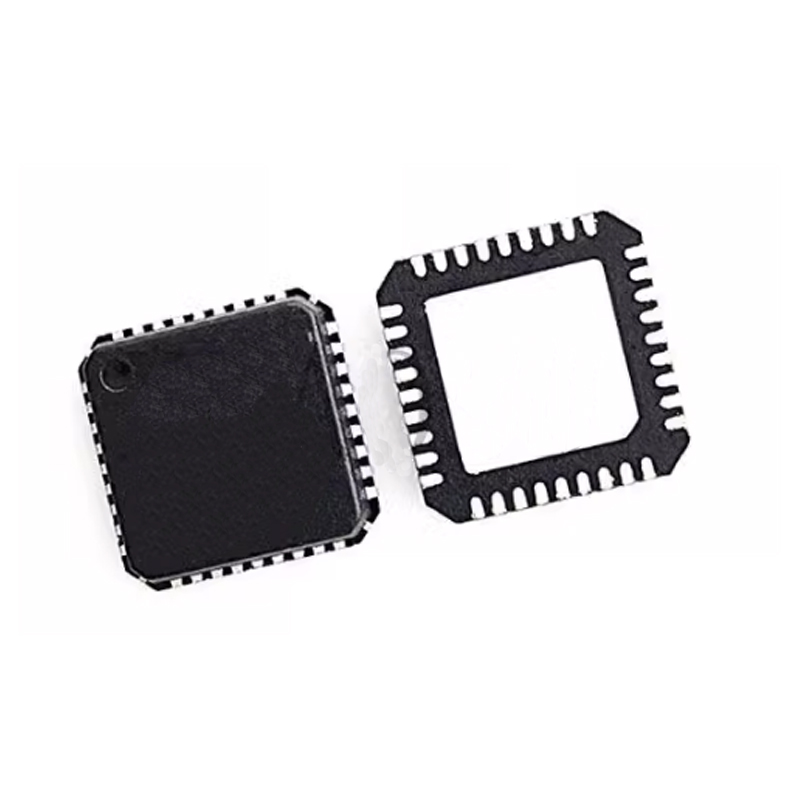

Actual product photos

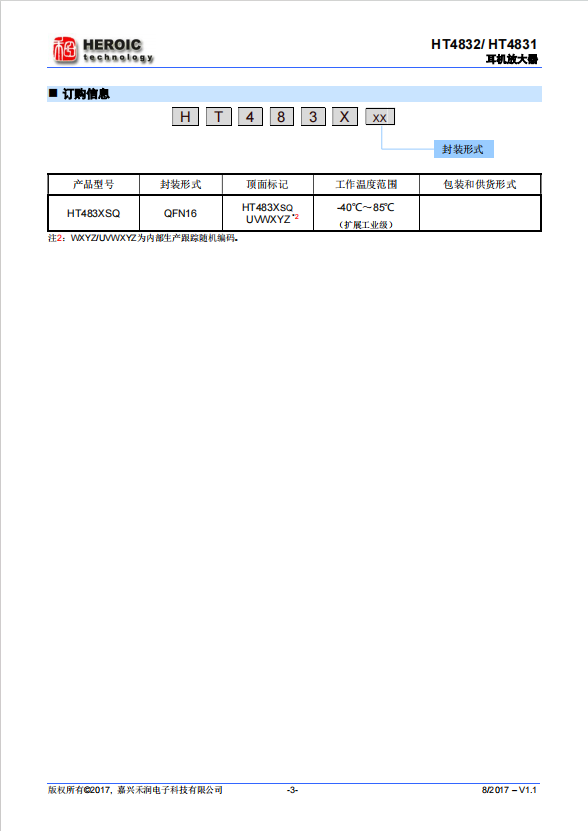

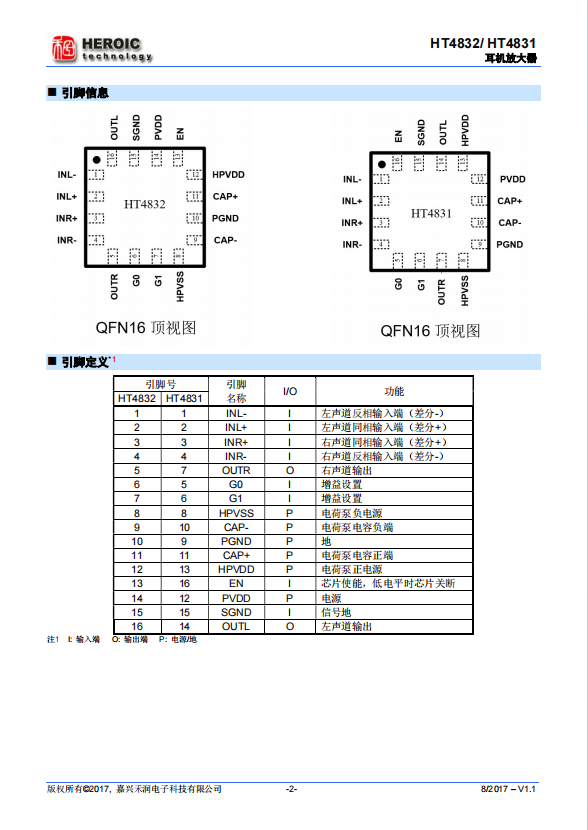

Product Data Book：
