Product Descriptions

HT6881 is a Low-EMI, Anti-Clipping, filter-less mono Class D audio power amplifier IC with maximum output power of 4.7W (6.5V power supply, 4Ω load, 10 percent THD+N). It has a high efficiency with class AB amplifier performance.

HT6881 features Anti-Clipping Function (ACF) which detects and suppresses output signal clippings due to the over level inputs of music or voice signals. The ACF function also can adapt the output clippings caused by power supply voltage down in battery applications. It improves acoustical quality considerably, gives great listening enjoyment, and prevents speaker from overload damaging.

HT6881 has excellent EMI radiation suppression characteristics. The radiation level is well below FCC Part15 Class B standards without any additive design. It keeps from interference with other EMI sensitive circuits, simplifies system design and lowers system cost.

Class AB amplifier mode is also available for HT6881. Once the EMI Interference from class D becomes an annoying problem, HT6881 can be

changed into Class AB mode.

HT6881 has a filter-less modulation circuit which directly drives speakers while realizes low distortion and low noise characteristics. Thanks to filter-less, circuit design with fewer external parts can be made in portable applications.

HT6881 has the independent Shutdown function which can minimize the power consumption at standby function. As for protection function, over current protection function for speaker output terminals, over temperature protection function, and low supply voltage malfunction preventing function are also prepared.

Product Features

? Anti-Clipping Function, ACF

? Both Class D and Class AB are available

? Excellent EMI Suppression Performance

? Filter-less Modulation, Eliminating Output Filter

? Output Power

1.4W (VDD=3.6V, RL=4?, THD+N=10 percent, Class D)

2.8W (VDD=5.0V, RL=4?, THD+N=10 percent, Class D)

4.7W (VDD=6.5V, RL=4?, THD+N=10 percent, Class D)

2.5W (VDD=5.0V, RL=4?, THD+N=10 percent, Class AB)

? High SNR：95dB (VDD = 6.5V, Av = 24dB, THD+N

= 1 percent)

? Low quiescent current (Class D)

2.65mA (VDD=3.6V)

3.25mA (VDD=5.0V)

4.00mA (VDD=6.5V)

? Low shutdown current：＜1μA

? Over Current Protection and Thermal Protection with Auto Recovery

? Low voltage malfunction prevention function included

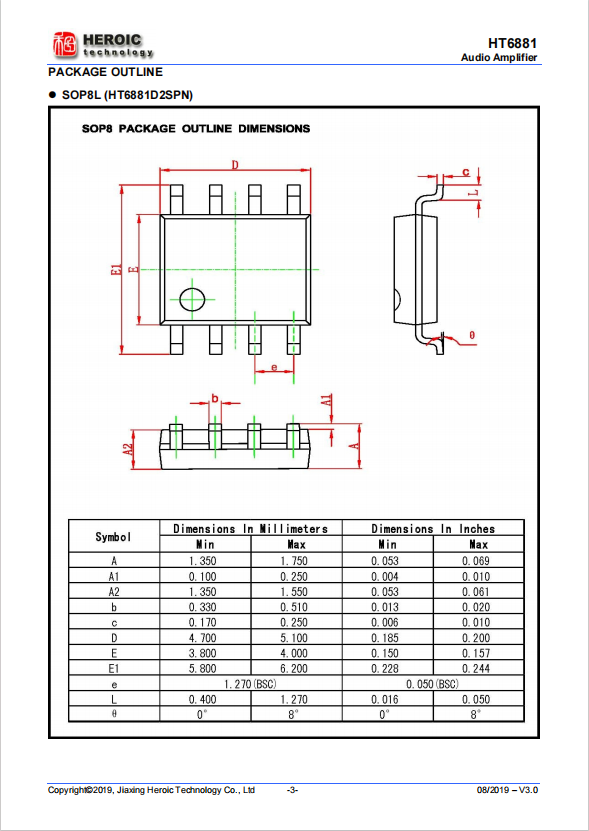

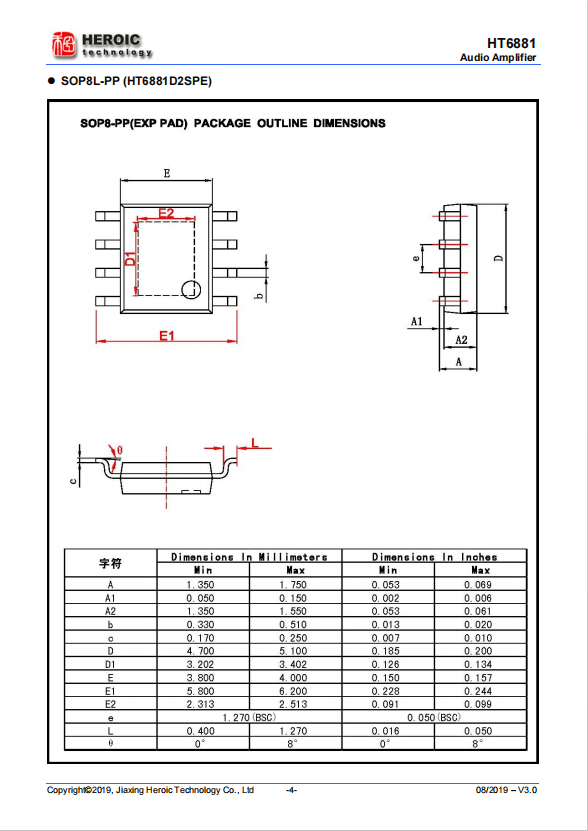

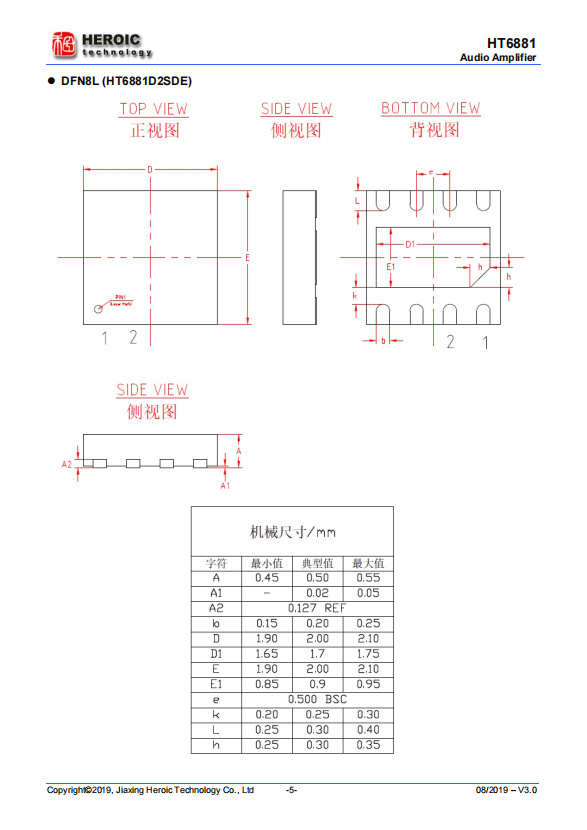

? Pb-Free Packages, DFN8L, SOP8L and SOP8L-PP

  Product Applications

? Portable Speakers

? Smart Speakers

? iphone/ipod/MP3 docking

? GPS

? Tablet PC/Note Book

? PMP/MP4/MP5

? Portable Gamers

? Smart phones

  Specifications

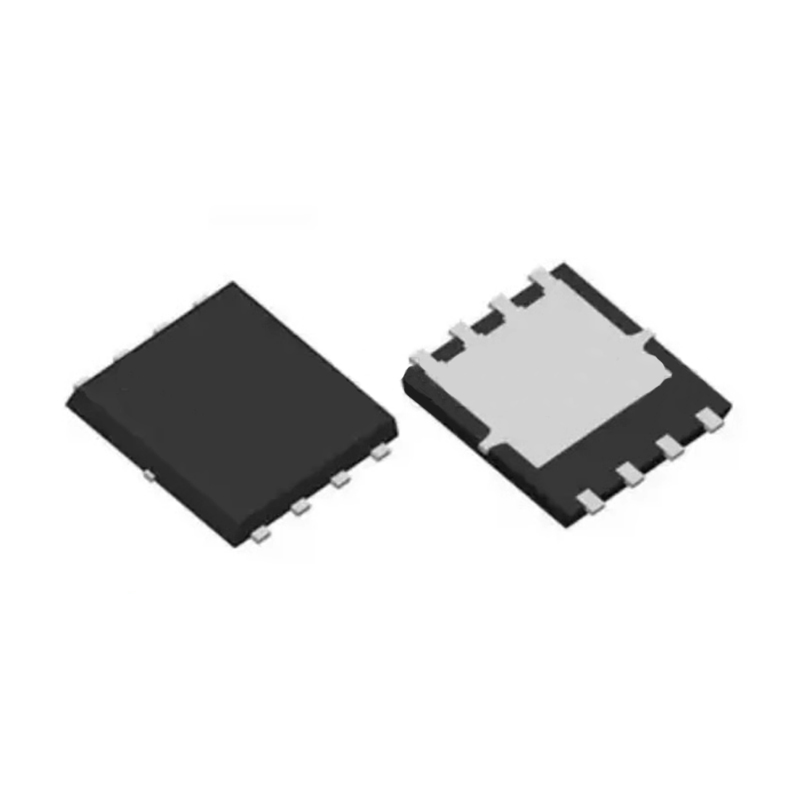

Actual product photos

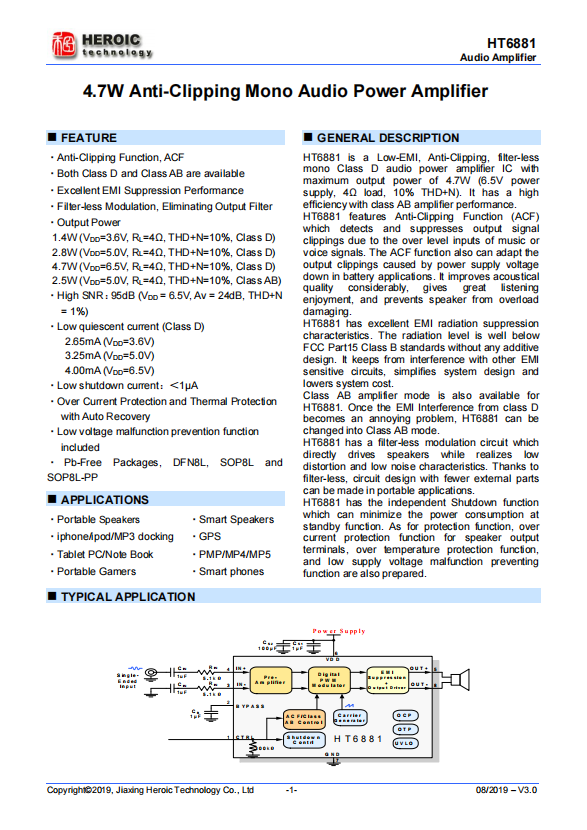

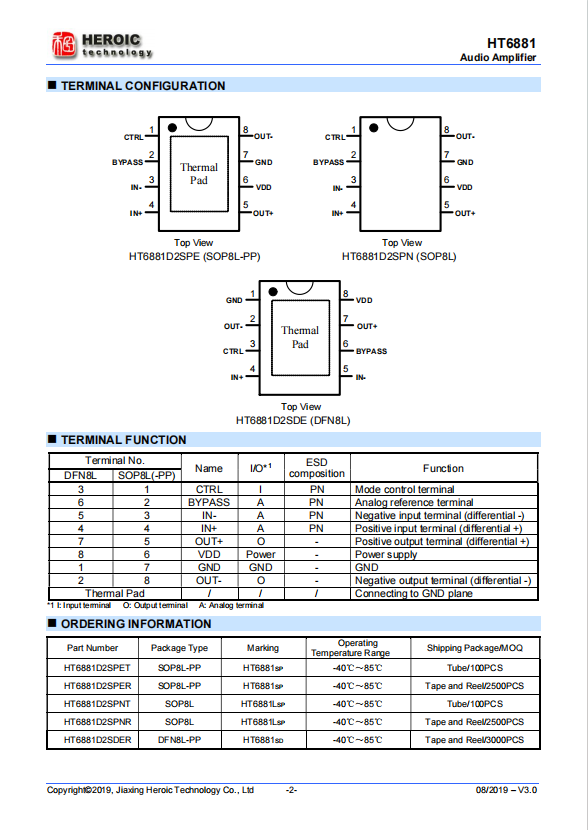

Product Data Book：
