Product Descriptions

HT8693 is an audio power amplifier with two operating modes: Class D and Class AB. In Class D mode, it can continuously output 10W power under VDD=8.5V, THD+N=10 percent, and 4 Ω load; In AB mode, under VDD=8.5V, THD+N=10 percent, and 4 Ω load, it can continuously output 9W power.

HT8693 has an anti clipping distortion (ACF) output control function in Class D operating mode, which can detect and suppress output signal clipping distortion caused by excessive amplitude of input music and voice signals (broken)

Sound quality is significantly improved, creating a comfortable listening experience and protecting the speaker from overload damage. At the same time, the chip also has ACF-Off mode configurable.

HT8693 can achieve the free switching function between Class AB and Class D. When encountering EMI interference from Class D power amplifiers, it can switch to Class AB audio power amplifier mode at any time.

In addition, the built-in shutdown function of HT8693 minimizes standby current and integrates functions such as output over-current protection, on-chip over-temperature protection, and power supply undervoltage abnormal protection.

Product Features

? Anti Clipping Function (ACF)

? Filter free digital modulation, directly driving the speaker

? Output power

10W (Class D, VDD=8.5V, RL=4 ?, THD+N=10%)

9W (Class AB, VDD=8.5V, RL=4 ?, THD+N=10%)

? Has two working modes: Class D and Class AB

? Over current protection function

? Overheat protection function

? Under voltage abnormal protection function

? Lead free and halogen-free packaging, SOP8L-PP

  Product Applications

? Bluetooth speaker

? Portable speaker

? 2.1 channel small speaker

? Speaker

? IPhone/iPod/iPod Docking

? Trolley speaker

? Tablets, laptops

? Portable gaming console

? Small size LCD TV/monitor

? MP4, Navigator

  Specifications

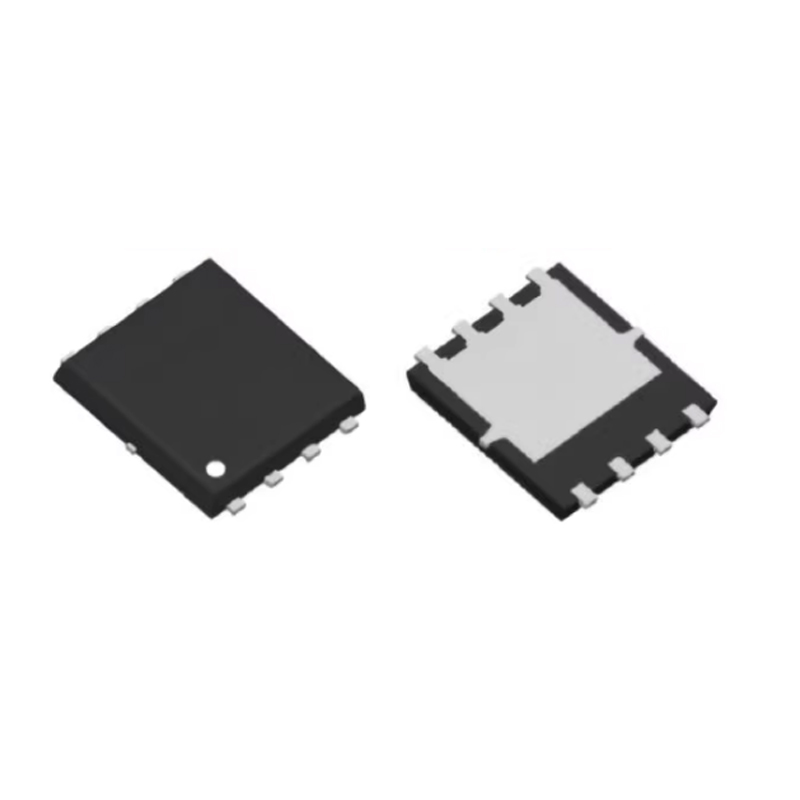

Actual product photos

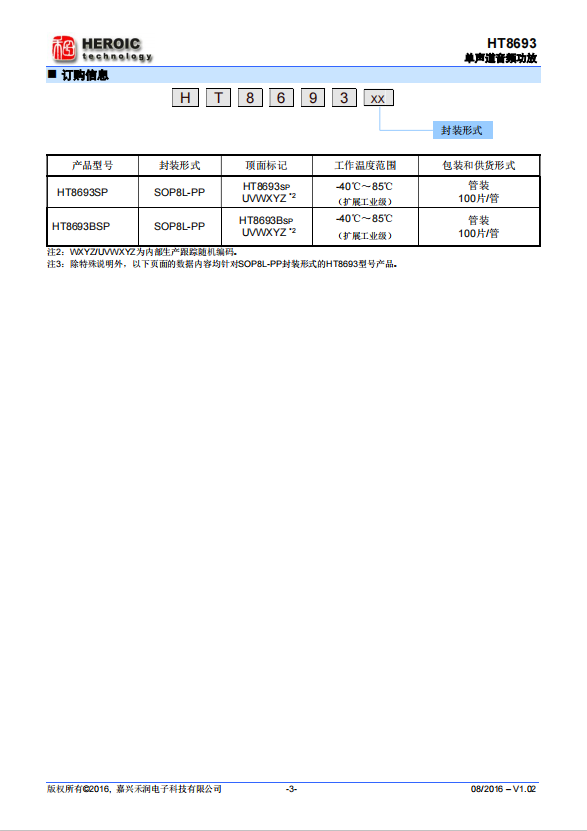

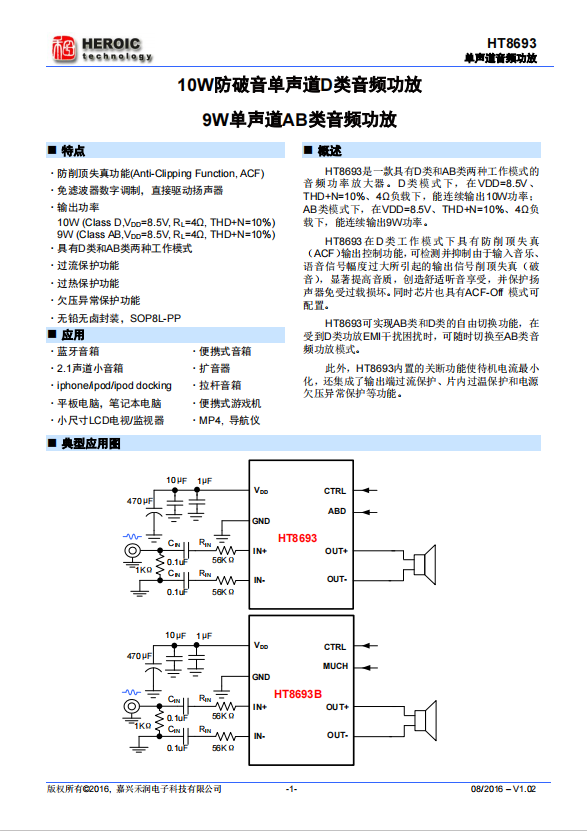

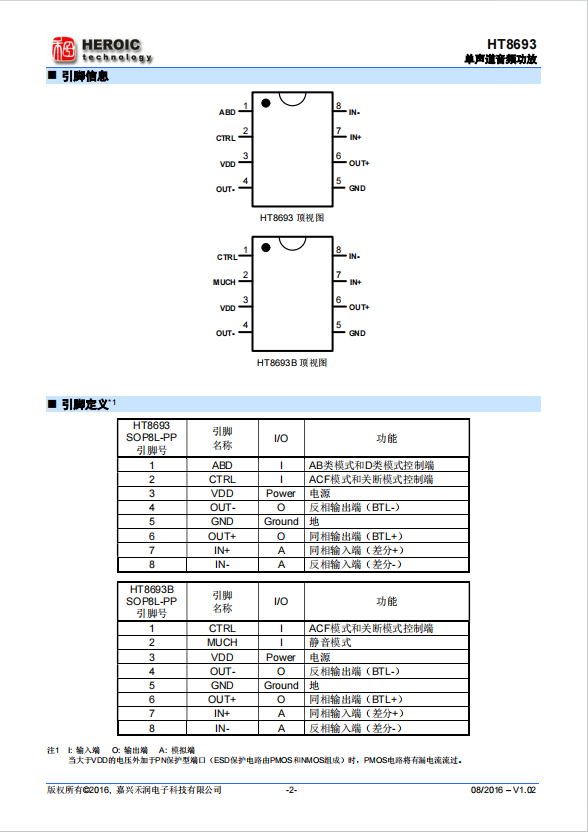

Product Data Book：
