Product Descriptions

HT313 is a mono efficient, Class-D audio amplifier for driving speakers up to 23W/2 ?, THD+N=1% at PVDD = 12V.

Advanced EMI Suppression with Spread Spectrum Control enables the use of inexpensive ferrite bead filters while meeting EMC requirements for system cost reduction.

The built-in shutdown function of HT313 minimizes the standby current. HT313 is fully protected against faults with Overvoltage, Undervoltage, Overtemperature, DC-detect, and Overcurrent protection.

Product Features

? Power supply: 3.6V – 12.8V

? Output power

19W (VDD=12V, RL=4?, THD+N=10%)

15W (VDD=12V, RL=4?, THD+N=1%)

23W (VDD=12V, RL=2?, THD+N=1%)

? Efficiency > 90%

? Differential / Single-ended Analog Input

? Integrated Self-protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DCdetect, and Overcurrent

? Packages: Pb-free Packages, ESSOP10

  Product Applications

? Bluetooth/Wi-Fi Speakers ?Portable Speakers

? Smart speakers ?Smart Home

? Sound Bars ?TV/Monitor

  Specifications

Actual product photos

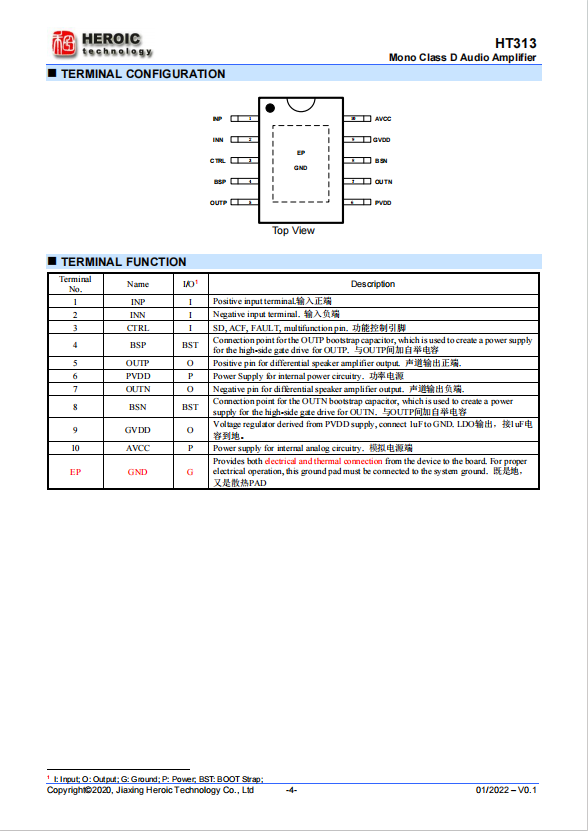

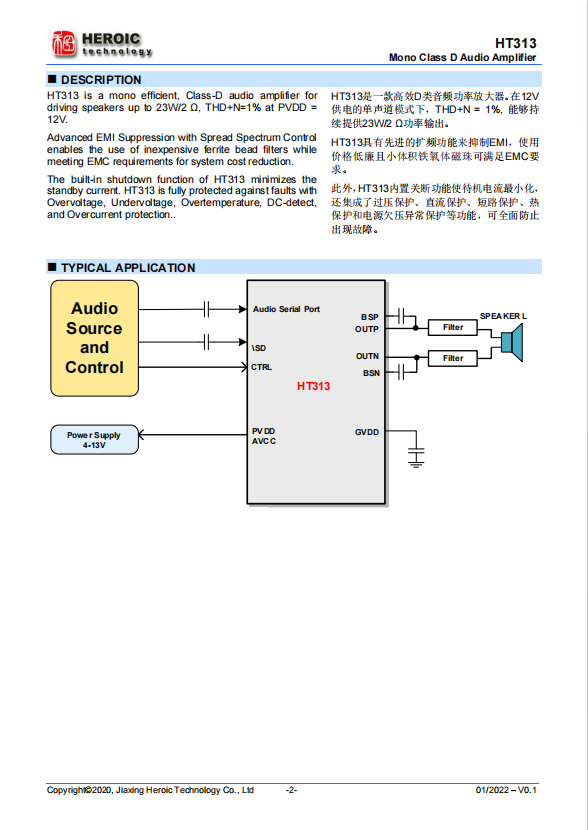

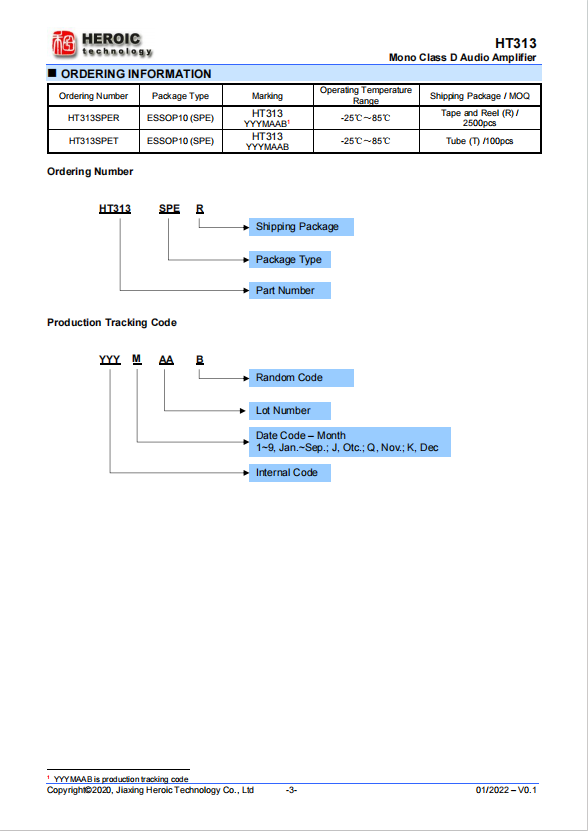

Product Data Book：

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
