Product Descriptions

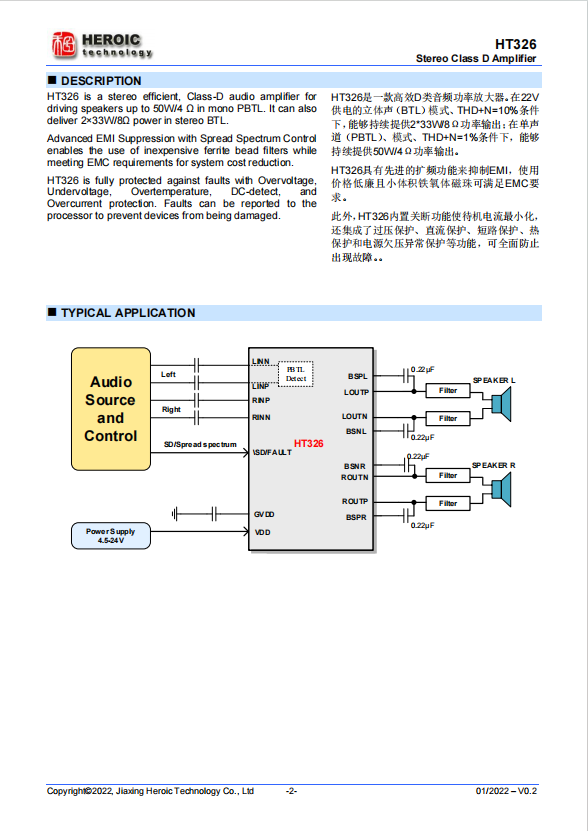

HT326 is a stereo efficient, Class-D audio amplifier for driving speakers up to 50W/4 ? in mono PBTL. It can also deliver 2×33W/8Ω power in stereo BTL.

Advanced EMI Suppression with Spread Spectrum Control enables the use of inexpensive ferrite bead filters while meeting EMC requirements for system cost reduction.

HT326 is fully protected against faults with Overvoltage, Undervoltage, Overtemperature, DC-detect, and Overcurrent protection. Faults can be reported to the processor to prevent devices from being damaged.

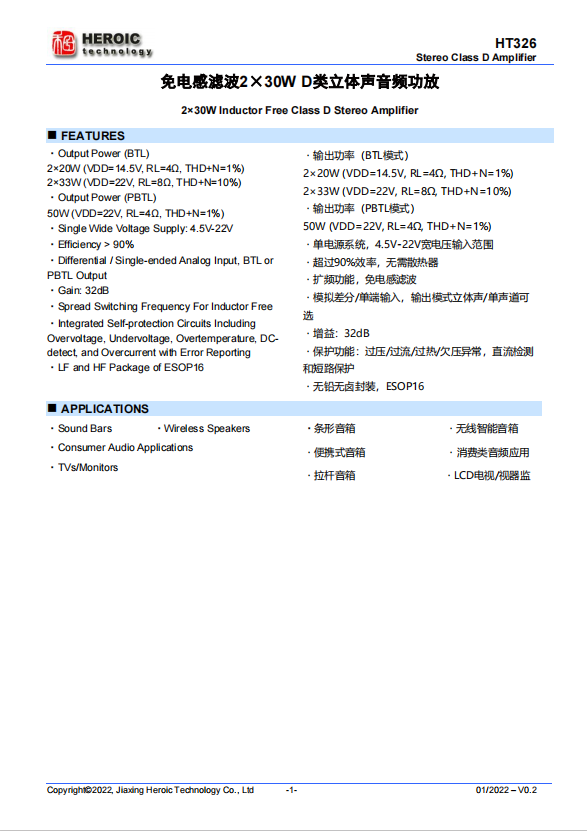

Product Features

? Output Power (BTL)

2×20W (VDD=14.5V, RL=4?, THD+N=1 percent)

2×33W (VDD=22V, RL=8?, THD+N=10 percent)

? Output Power (PBTL)

50W (VDD=22V, RL=4?, THD+N=1 percent)

? Single Wide Voltage Supply: 4.5V-22V

? Efficiency > 90 percent

? Differential / Single-ended Analog Input, BTL or

PBTL Output

? Gain: 32dB

? Spread Switching Frequency For Inductor Free

? Integrated Self-protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DCdetect, and Overcurrent with Error Reporting

? LF and HF Package of ESOP16

  Product Applications

? Sound Bars

? Wireless Speakers

? Consumer Audio Applications

? TVs/Monitors

  Specifications

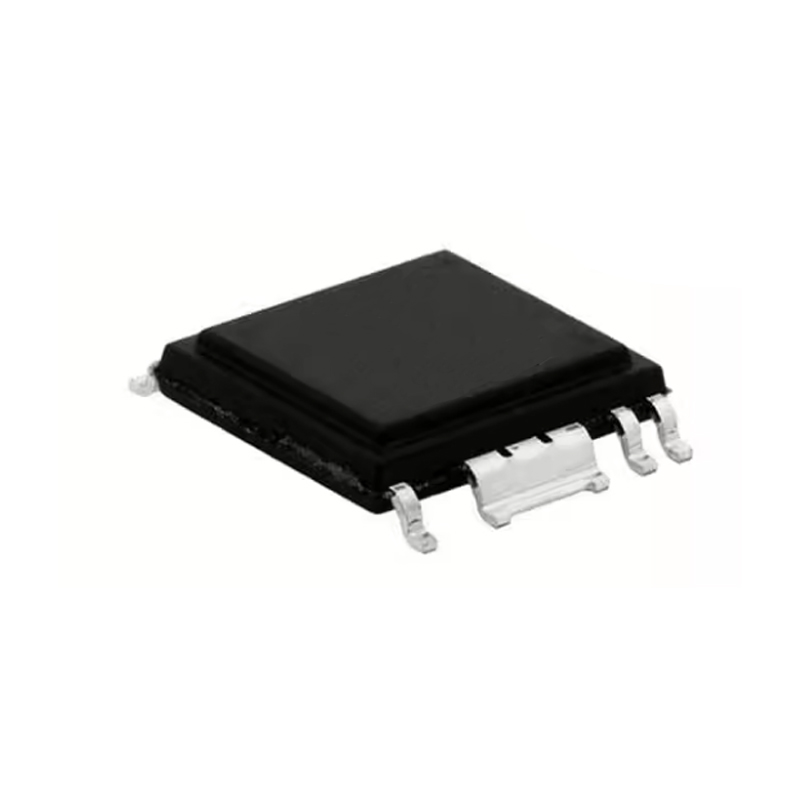

Actual product photos

Product Data Book：

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
