Product Description
Type | Description |
|---|---|
PART# | URA2415LD-20WR3 |
Category | Power Supplies - Board Mount DC DC Converters |
Manufacturer | / |
Series | URA_LD-20WR3 (20W) |
Packaging | Tube |
Part Status | Not For New Designs |
Type | Isolated Module |
Number of Outputs | 2 |
Voltage - Input (Min) | 9V |
Voltage - Input (Max) | 36V |
Voltage - Output 1 | 15V |
Voltage - Output 2 | -15V |
Voltage - Output 3 | - |
Voltage - Output 4 | - |
Current - Output (Max) | 667mA, 667mA |
Power (Watts) | 20 W |
Voltage - Isolation | 1.5 kV |
Applications | ITE (Commercial), Railway |
Features | Adjustable Output |
Operating Temperature | -40°C ~ 85°C (With Derating) |
Efficiency | 88% |
Mounting Type | Through Hole |
Package / Case | 6-DIP Module |
Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
Supplier Device Package | - |
Control Features | - |
Approval Agency | CB, CE, cURus, EN, IEC, UKCA, UL |
Standard Number | 60950-1; 62368-1 |
Base Product Number | - |

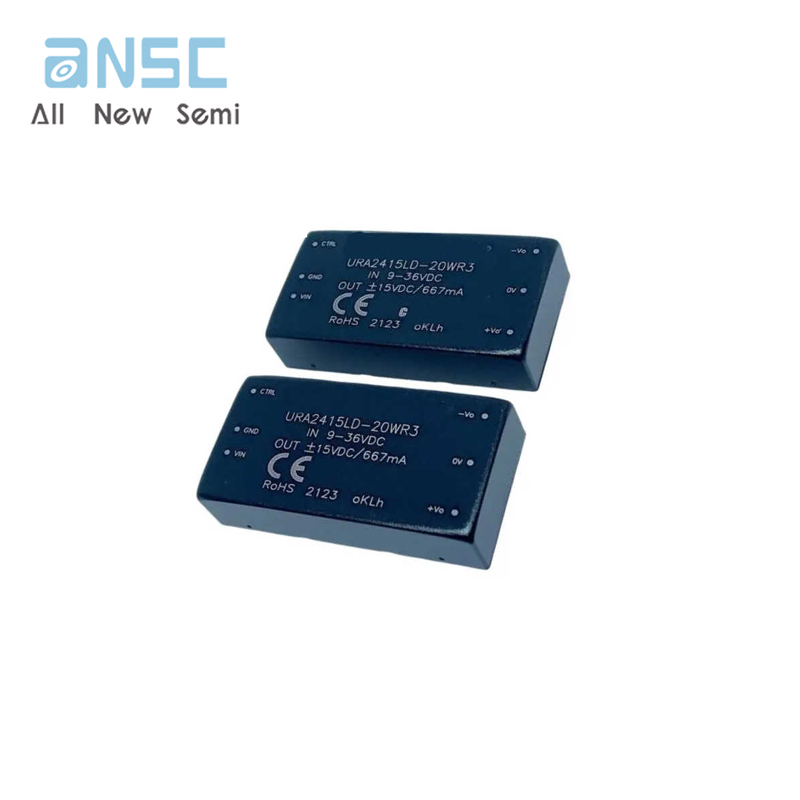

Actual image of the product
