Product Descriptions

HT3382 is an efficient Class D audio power amplifier.

Under the condition of 24V power supply for stereo sound (BTL) and THD+N=10 percent, it can continuously provide 2 * 75W/4 Ω power output.

Under the condition of 24V power supply PBTL and THD+N=10 percent, it can continuously output 140W/2 Ω power.

HT3382 has advanced spreading function to suppress EMI.

In addition, HT3382 has a built-in shutdown function to minimize standby current, and also integrates functions such as overvoltage protection, DC protection, short circuit protection, thermal protection, and power supply undervoltage abnormal protection, which can comprehensively prevent faults from occurring.

Product Features

? Output power (BTL)

two × 60W (VDD=24V, RL=4 ?, THD+N=1 percent)

two × 75W (VDD=24V, RL=4 ?, THD+N=10 percent)

Output power (PBTL)

115W (VDD=24V, RL=2 ?, THD+N=1 percent)

140W (VDD=24V, RL=2 ?, THD+N=10 percent)

? Single power supply system, 4.5V-26V wide voltage input range

? More than 93 percent efficiency requires a radiator

? Spread spectrum function

? MUTE function

? Analog differential/single ended input, output stereo or PBTL mono

? Optional gain: 32dB/26dB

? Protection functions: abnormal overvoltage/overcurrent/overheating/undervoltage, DC detection and short circuit protection

? Lead free and halogen-free packaging, ETSSOP28, top heat sink

  Product Applications

? Bar speaker

? Wireless intelligent speaker

? Portable speaker

? Consumer audio applications

? Trolley speaker

? LCD TV/Monitor

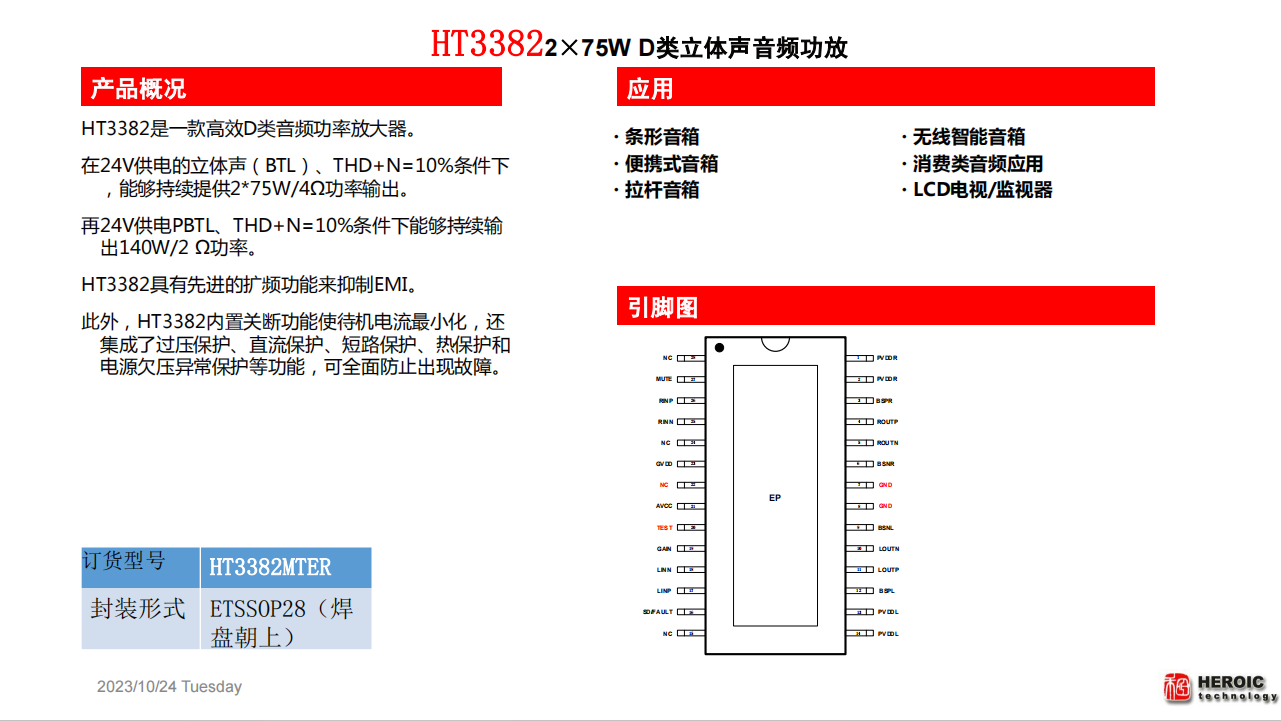

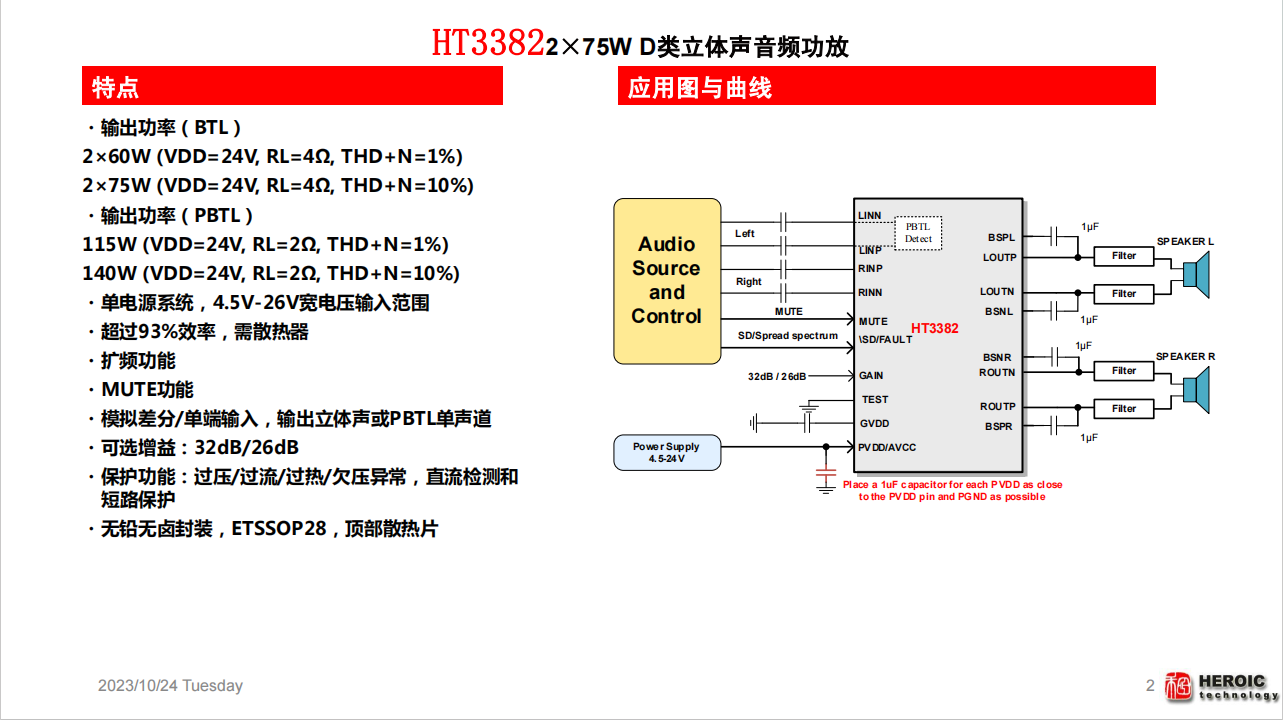

  Specifications

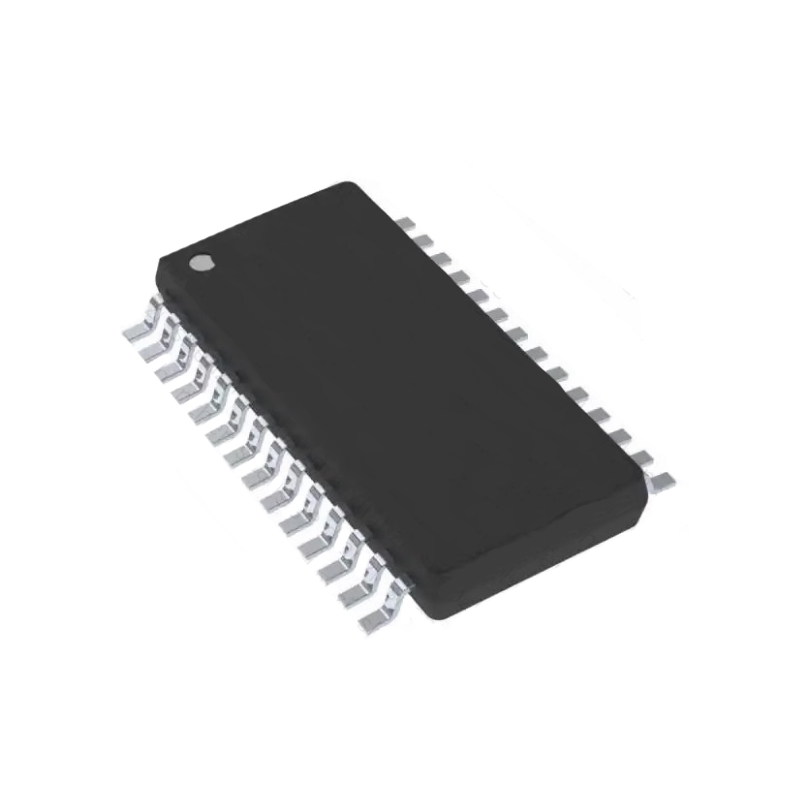

Actual product photos

Product Data Book：
