Product Descriptions

CMI8768 is the first high performance (SNR~100dB) 8CH PCI integrated sound chip compatible with PCI V.2.2 specification in the world. With 16bit/96K digital/analog playback capability and versatile driver support, CMI8768 is designed delicately for advanced consumer PC sound card/media center/mainboard/desktop/embedded system/server audio applications. Through integrating a full-duplex 8/2 CODEC and S/PDIF

transmitter/receiver, CMI8768 consequently saves much BOM cost for customers. CMI8768, bundled with C-Media friendly and high add-on value driver, provides the most economic and ideal audio solution with the best value-price ratio.Integrated S/PDIF transmitter can deliver 5.1 Dolby? Digital/DTS? , or 6.1/7.1 Dolby? Digital Surround EX/DTS ES DVD soundtracks and up-to-96KHz high-definition audio stream to external receiver satisfying audio enthusiasts and pioneers.

Product Products

? The global first 8CH single sound chip with embedded codec

? Full-duplex 8CH DAC/2CH ADC

? Supports 96K/16bit playback; 48K/16bit recording

? CE level high-quality Signal-to-Noise Ratio (SNR)~ 100dB

? Integrated S/PDIF transmitter supports 44.1k/48k/96KHz sample rate (96k not available on Windows Vista)

? PCI Rev. 2.2 compliant with bus mastering modes

? Supports the latest Dolby? Digital EX and DTS? ES 6.1/7.1CH DVD soundtrack playback

? Two S/PDIF inputs for optical and coaxial connectors individually

? Built-in earphone buffer at Front-Out pins (32Ω loading)

? One GPIO (General purpose I/O) support

 Specifications

Actual product photos

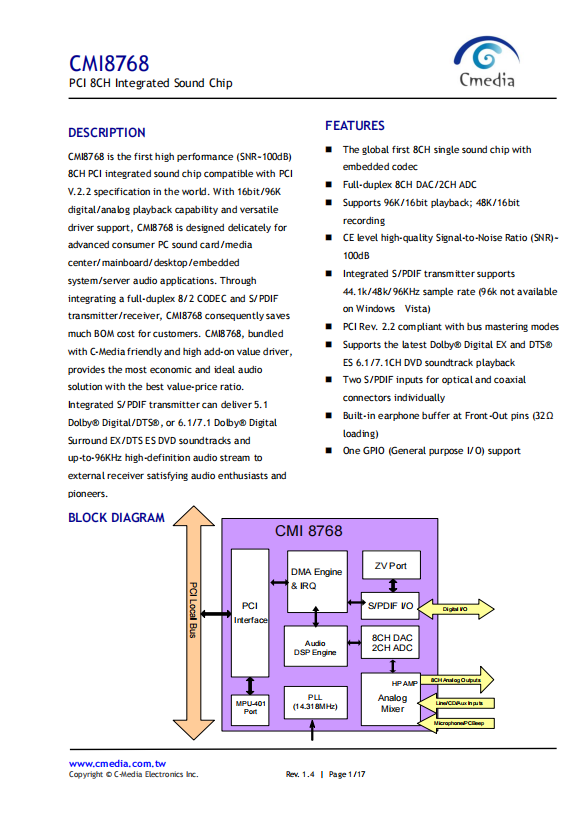

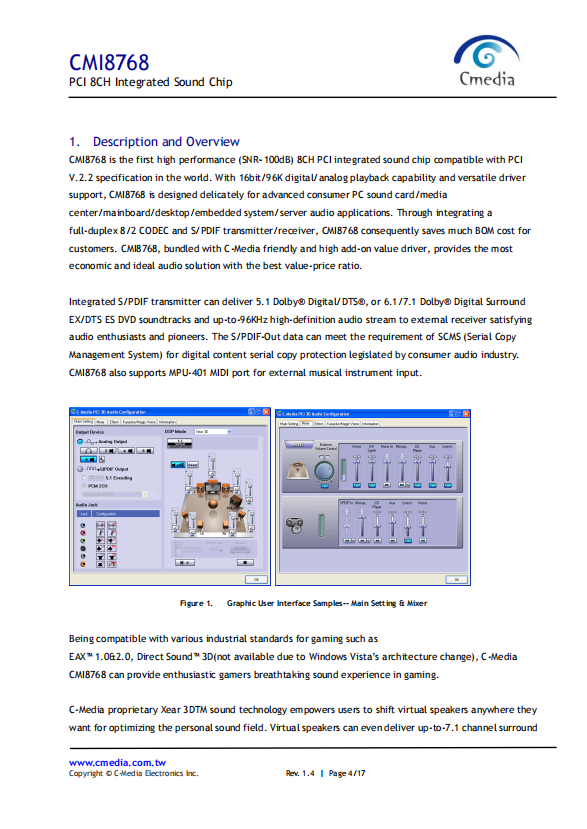

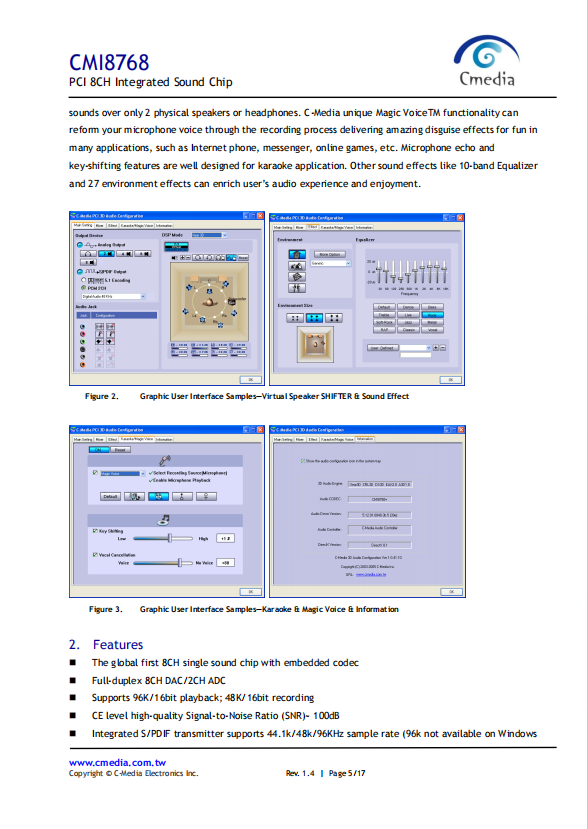

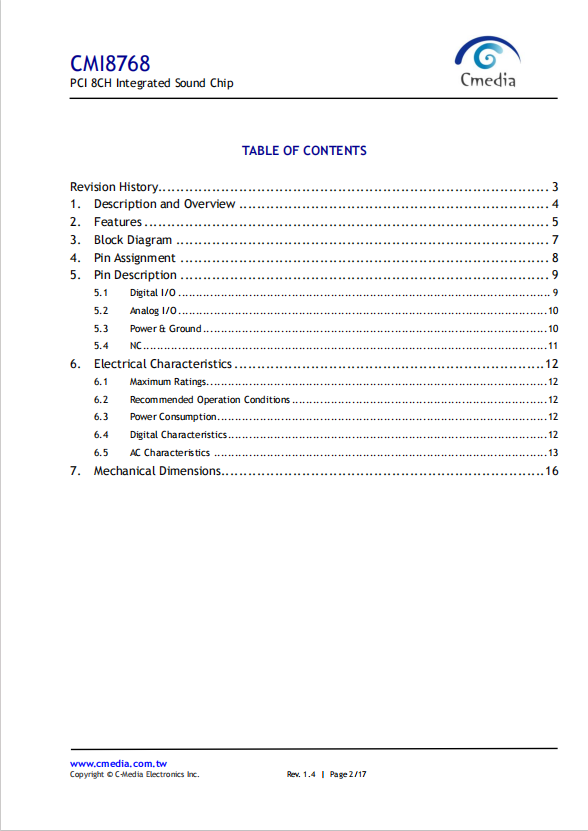

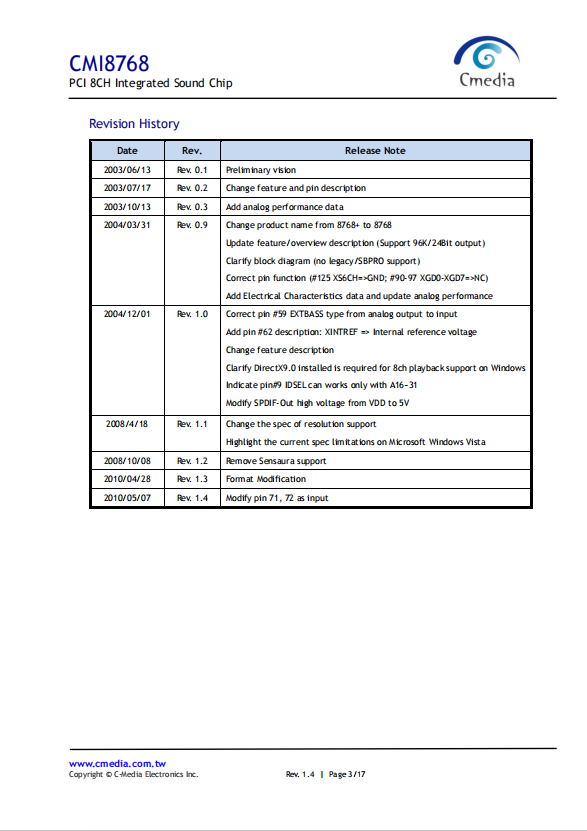

Product Data Book：

For more product information, please download the PDF
