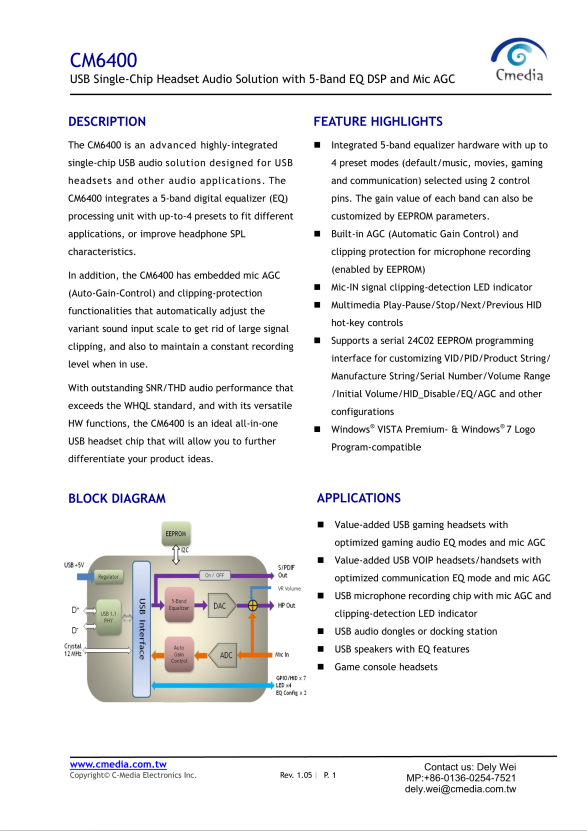

Product Descriptions
The CM6400 is an advanced highly-integratedsingle-chip USB audio solution designed for USBheadsets and other audio applications. TheCM6400 integrates a 5-band digital equalizer (EQ)processing unit with up-to-4 presets to fit differentapplications,or improve headphone SPLcharacteristics.
In addition, the CM6400 has embedded mic AGC(Auto-Gain-Control) and clipping-protectionfunctionalities that automatically adjust thevariant sound input scale to get rid of large signalclipping, and also to maintain a constant recordinglevel when in use.
With outstanding SNR/THD audio performance thatexceeds the WHQL standard, and with its versatileHW functions, the CM6400 is an ideal all-in-oneUSB headset chip that will allow you to furtherdifferentiate your product ideas.
Product Features
? Integrated 5-band equalizer hardware with up to4 preset modes (default/music, movies, gamingand communication) selected using 2 controlpins. The gain value of each band can also becustomized by EEPROM parameters.
? Built-in AGC (Automatic Gain Control) andclipping protection for microphone recording(enabled by EEPROM)
? Mic-IN signal clipping-detection LED indicator
? Multimedia Play-Pause/Stop/Next/Previous HIDhot-key controls
? Supports a serial 24C02 EEPROM programminginterface for customizing VID/PID/Product String/Manufacture String/Serial Number/Volume Range/lnitial Volume/HID_Disable/EQ/AGC and otherconfigurations
? WindowsVISTA Premium- 8 Windows7 LogoProgram-compatible
Product Applications
? Value-added USB gaming headsets withoptimized gaming audio EQ modes and mic AGC
? Value-added USB VOlP headsets/handsets withoptimized communication EQ mode and mic AGC
? USB microphone recording chip with mic AGC andclipping-detection LED indicator
? USB audio dongles or docking station
? USB speakers with EQ features
? Game console headsets
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CM6400 |
| Type: | Audio chip |
| Manufactor | Cmedia |
| DC | Standard |
| Describe | NEW |
| Supplier Device Packaging | LQFP48 |
| Package | REEL |
| Type | USB Audio |
| Sampling rate | - |
| Rate | - |
Actual product photos

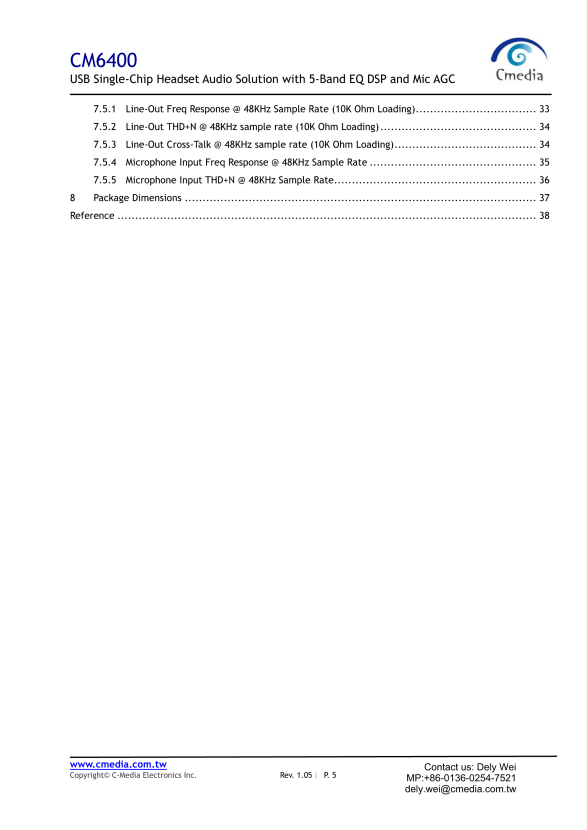

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
