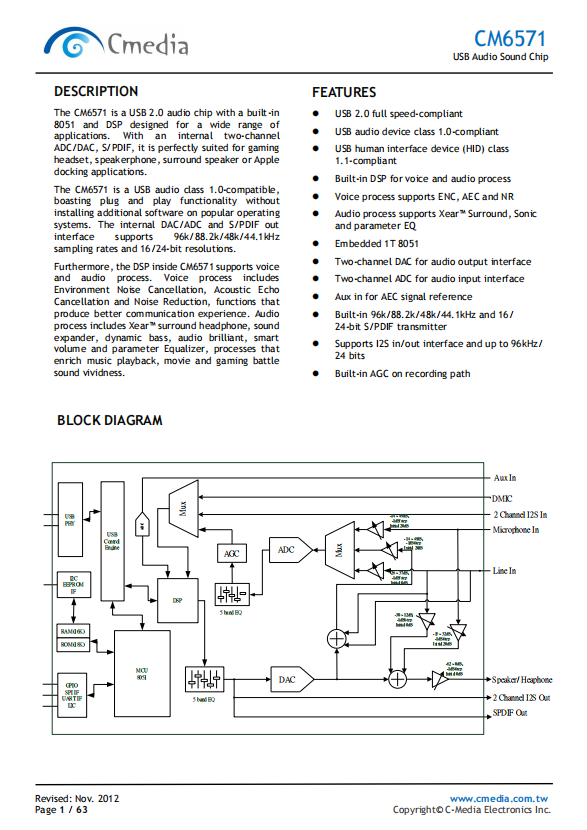

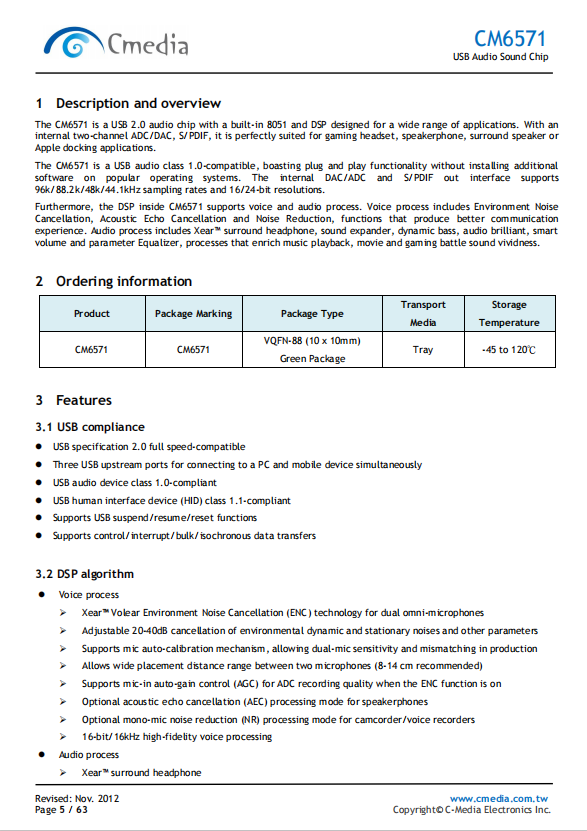

Product Descriptions

The CM6571 is a USB 2.0 audio chip with a built-in 8051 and DSP for a wide range of applications. With an internal 2-channel ADC/DAC, S/PDIF, it is perfectly suited to gaming headset, speaker phone, surround speaker or apple docking applications.
The CM6571 is USB audio class 1.0-compatible, boasting plug and play functionality without additional software on popular operating systems. The internal DAC/ADC and S/PDIF out interface supports 96K/88.2K/48K/44.1KHz sampling rates and 16/24-bit resolutions.
Furthermore, the DSP inside CM6571 support voice and audio process. Voice process includes Environment Noise Cancellation, Acoustic Echo Cancellation and Noise Reduction. Those are the functions to make better communication experience. Audio process includes Xear? surround headphone, sound expander, dynamic bass, audio brilliant, smart volume and parameter Equalizer.

Product Features

USB Compliance

• USB specification 2.0 full speed-compatible

• USB audio device class 1.0-compliant

• USB human interface device (HID) class 1.1-compliant

• Supports USB suspend/resume/reset functions

• Supports control/interrupt/bulk/isochronous data transfers

DSP Algorithm

• Voice process
  -Xear? Volear Environment Noise Cancellation (ENC) technology for dual omni-microphones
  -Adjustable 20-40dB cancellation of environmental dynamic and stationary noises and other parameters
  -Supports a mic auto-calibration mechanism, allowing dual-mic sensitivity and mismatching in production
  -Allows a wide placement distance range between two microphones (8-14 cm recommended)
  -Supports mic-in auto-gain control (AGC) for ADC recording quality when the ENC function is on
  -Optional Acoustic Echo Cancellation (AEC) processing mode for speakerphones
  -Optional mono-mic Noise Reduction (NR) processing mode for camcorder/voice recorders
  -16-bit/16KHz high-fidelity voice processing

• Audio process
  -Xear? surround headphone
  -Xear? sound expander
  -Xear? Sonic
  *Dynamic bass
  *Audio brilliant
  *Smart volume
  *Parameter Equalizer

Audio Engine

• Playback streams:
  -Stereo DAC
  *ample rates: 8K/11.025K/16K/22.05K/32K/44.1K/48K/88.2K/96K
  *Supported bit lengths: 16 and 24-bit
  *Gain Range is -62dB ~ 0dB, 1dB/step -I2S out interface
  *sample rates: 8K/11.025K/16K/22.05K/32K/44.1K/48K/88.2K/96K
  *Supported bit lengths: 16 and 24-bit
  *Gain Range is -62dB ~ 0dB, 1dB/step -SPDIF out
  *Sample rates: 44.1K/48K/88.2K/96K
  *Supported bit lengths: 16 and 24-bit

• Capture Streams:
  -Stereo ADC
  *Default sample rates: 8K/11.025K/16K/22.05K/32K/44.1K/48K/88.2K/96K
  *Supported bit lengths: 16 and 24-bit -I2S data input
  *Sample rates: 8K/11.025K/16K/22.05K/32K/44.1K/48K/88.2K/96K
  *Supported bit lengths: 16 and 24-bit
  *Gain Range is -62dB ~ 0dB, 1dB/step

Audio I/O

• One I2S or left-justified serial audio output interface

• One I2S or left-justified serial audio input interface

• Two-channel microphone in

• Two-channel digital microphone in

• Two-channel line in

• Two-channel line out

• S/PDIF transmitter

• Aux in

Integrated 8051 Microprocessor

• Embedded 8051 microprocessor to handle comment/protocol transactions

• Connects to an external EEPROM memory for firmware codes

• HID interrupts can be implemented via firmware codes

• Provides maximum HW configuration flexibility with firmware code upgrade

• VID/PID/product strings can be customized via firmware code programming

Control Interface

• Master I2C control interface for external audio devices or EEPROM access

• Max. of 15 GPIO pins can be configured via firmware programming

• GPIOs set to HID key, LED indicator and IR receiver configurations

General

• HW EQ for both playback and record paths

• Single 12MHz crystal input is required only (embedded PLL function)

• Single 5V power supply (embedded 5V to 1.8V regulator for digital core, 5V to 3.3V regulator for digital IO, 5V to 3.5V regulator for analog codec)

• 3.3V digital I/O pads with 5V tolerance

• Industry-standard VQFN-88 package (10x 10mm)

  Specifications

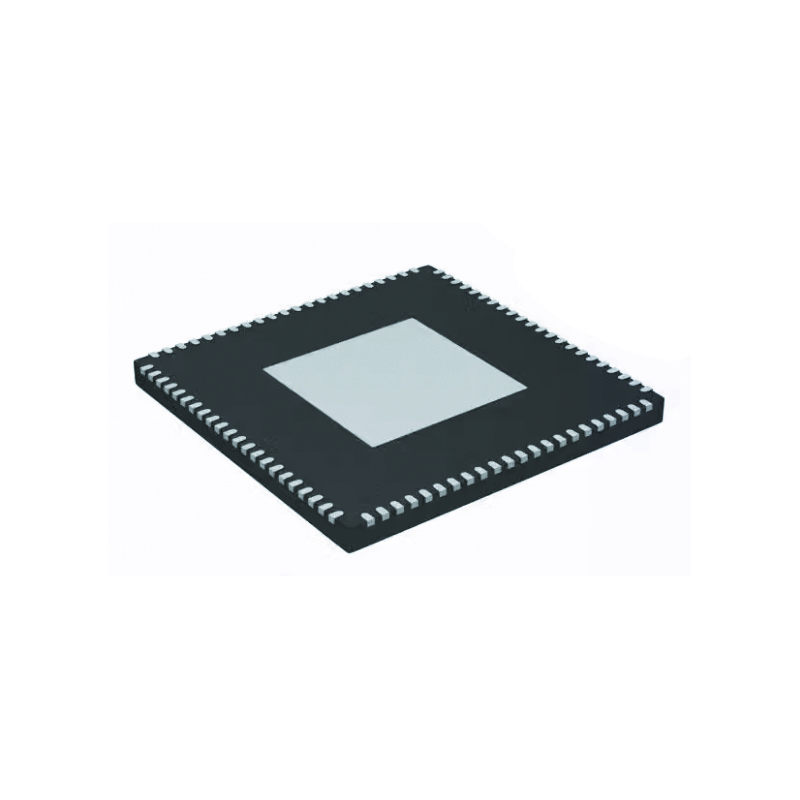

Actual product photos

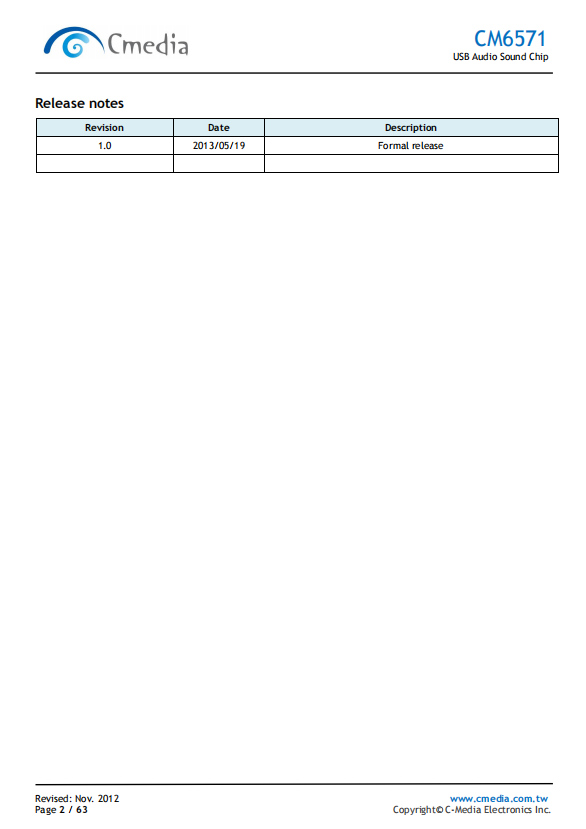

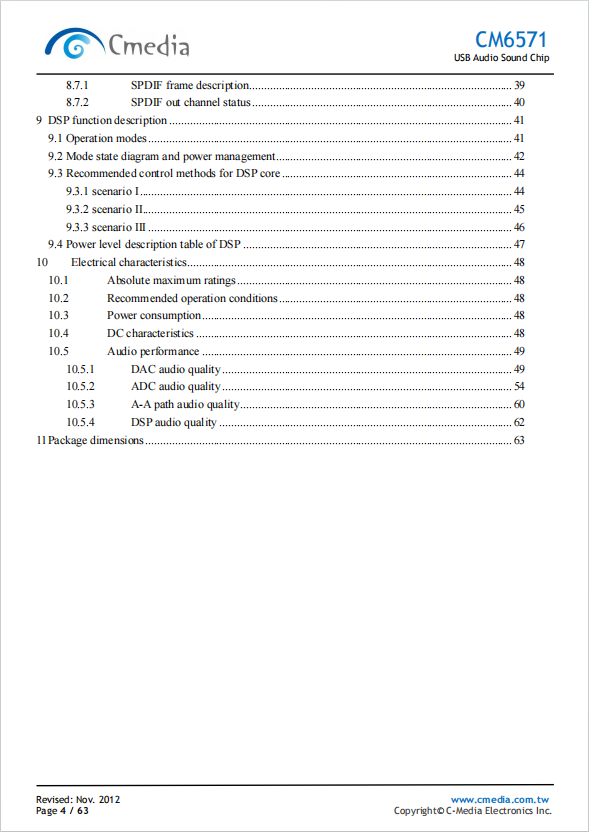

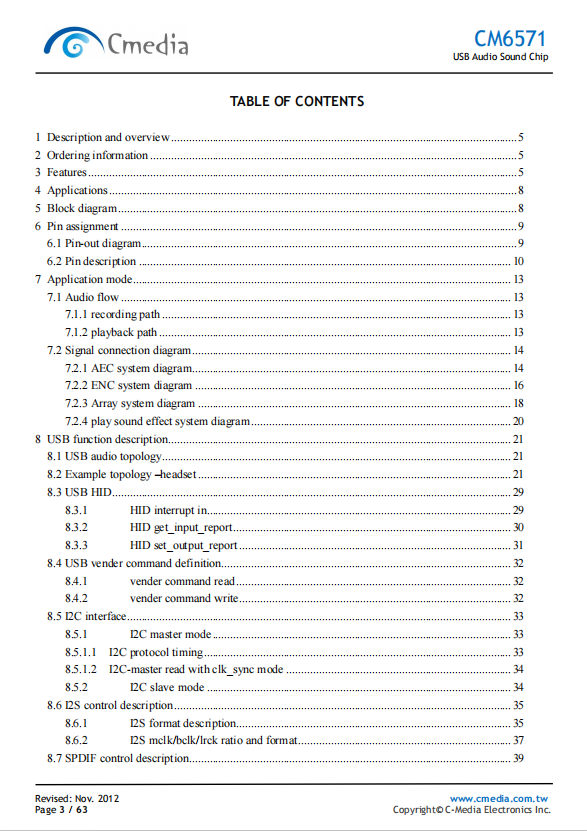

Product Data Book：

For more product information, please download the PDF
