Product Descriptions

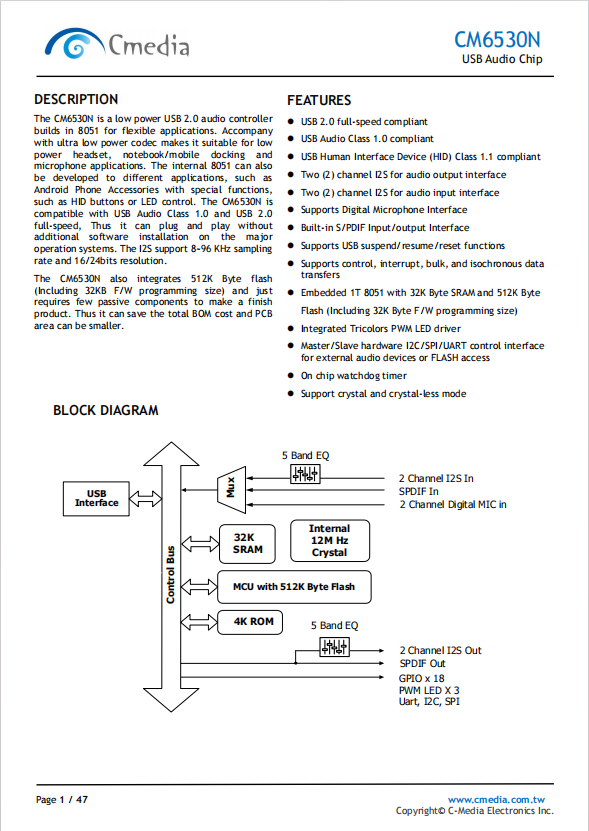

The CM6530N is a low power USB 2.0 audio controller builds in 8051 for flexible applications. Accompany with ultra low power codec makes it suitable for low power headset, notebook/mobile docking and microphone applications. The internal 8051 can also be developed to different applications, such as Android Phone Accessories with special functions, such as HID buttons or LED control. The CM6530N is compatible with USB Audio Class 1.0 and USB 2.0 full-speed, Thus it can plug and play without additional software installation on the major operation systems. The I2S support 8~96 KHz sampling rate and 16/24bits resolution. The CM6530N also integrates 512K Byte flash (Including 32KB F/W programming size) and justrequires few passive components to make a finish product. Thus it can save the total BOM cost and PCB area can be smaller.

Product Features

? USB 2.0 full-speed compliant

? USB Audio Class 1.0 compliant

? USB Human Interface Device (HID) Class 1.1 compliant

? Two (2) channel I2S for audio output interface

? Two (2) channel I2S for audio input interface

? Supports Digital Microphone Interface

? Built-in S/PDIF Input/output Interface

? Supports USB suspend/resume/reset functions

? Supports control, interrupt, bulk, and isochronous data transfers

? Embedded 1T 8051 with 32K Byte SRAM and 512K Byte Flash (Including 32K Byte F/W programming size)

? Integrated Tricolors PWM LED driver

? Master/Slave hardware I2C/SPI/UART control interface for external audio devices or FLASH access

? On chip watchdog timer

? Support crystal and crystal-less mode

  Specifications

Actual product photos

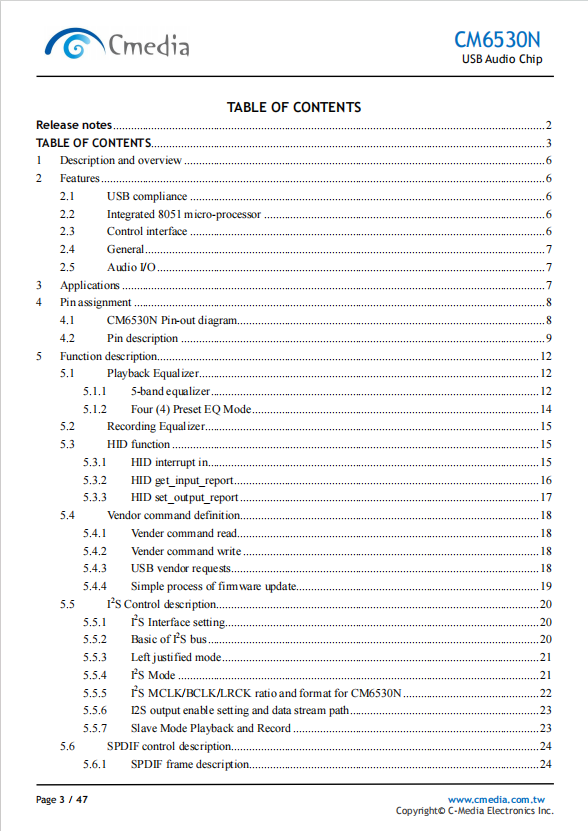

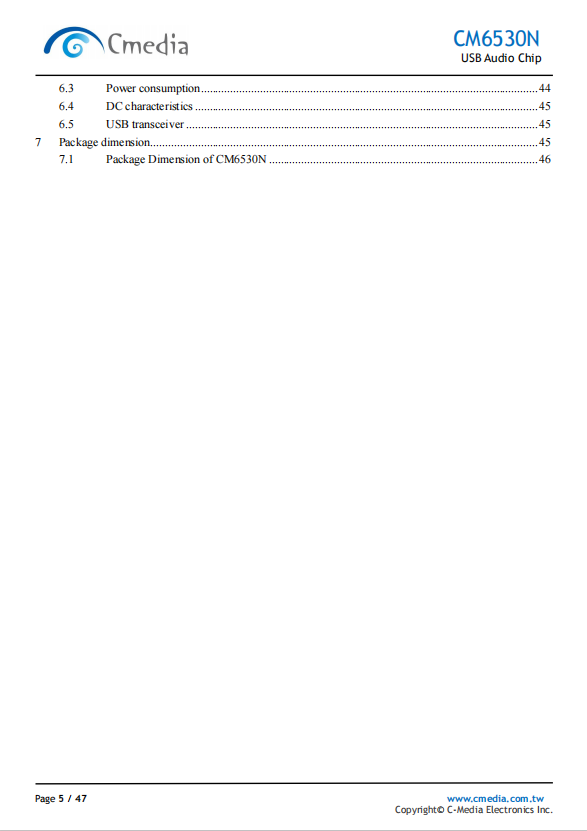

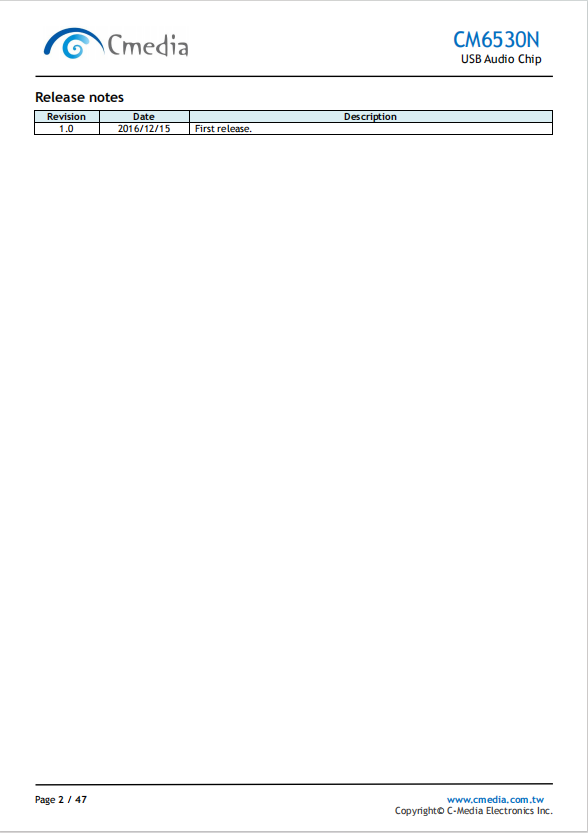

Product Data Book：

For more product information, please download the PDF
