Product Descriptions

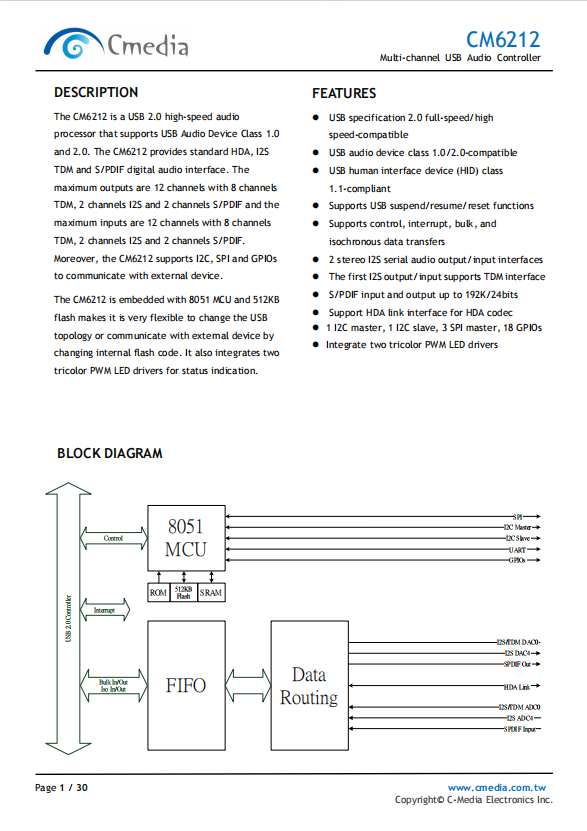

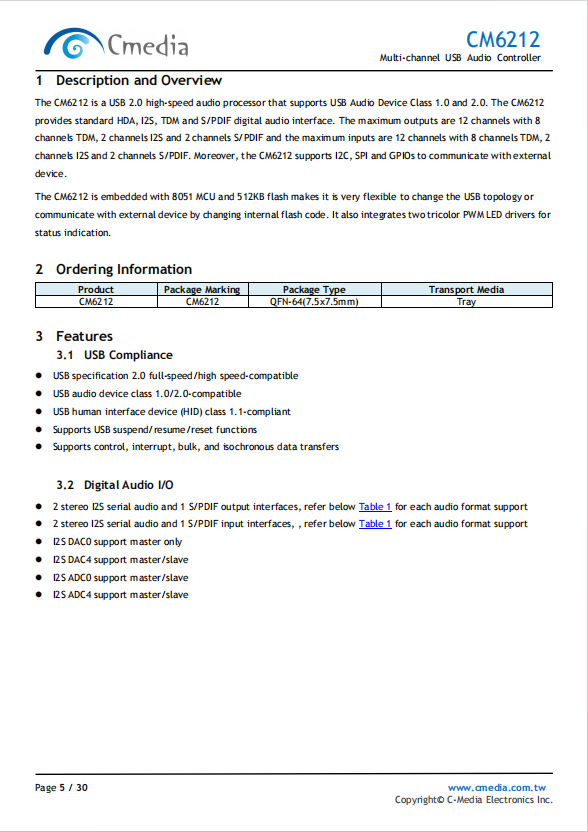

The CM6212 is a USB 2.0 high-speed audio processor that supports USB Audio Device Class 1.0 and 2.0. The CM6212 provides standard HDA, I2S, TDM and S/PDIF digital audio interface. The maximum outputs are 12 channels with 8 channels TDM, 2 channels I2S and 2 channels S/PDIF and the maximum inputs are 12 channels with 8 channels TDM, 2 channels I2S and 2 channels S/PDIF. Moreover, the CM6212 supports I2C, SPI and GPIOs to communicate with external device.
The CM6212 is embedded with 8051 MCU and 512KB flash makes it is very flexible to change the USB topology or communicate with external device by changing internal flash code. It also integrates two tricolor PWM LED drivers for status indication.

Product Features

USB Compliance

• USB specification 2.0 full-speed/high speed-compatible

• USB audio device class 1.0/2.0-compatible

• USB human interface device (HID) class 1.1-compliant

• Supports USB suspend/resume/reset functions

• Supports control, interrupt, bulk, and isochronous data transfers

Integrated 8051 Micro Processor

• Embedded 8051 micro-processor handles the USB transfers(control, isochronous, interrupt, and bulk)

• Communicate with external peripheral devices(I2C, SPI, GPIO, etc.)

• The MCU speed is programmable from 3.072 ~65.536 MHz

• HID interrupts can be implemented via firmware codes

• Provides maximum HW configuration flexibility with a firmware code upgrade

• VID/PID/product string can be customized via firmware code programming

Control Interface

• 1 Master I2C control interface to communicate with external devices or EEPROM, the master I2C speed supports standard mode(100KHz) and fast mode(400KHz)

• 1 Slave I2C control interface for external MCU communication, the slave I2C speed supports standard mode(100KHz) and fast mode(400KHz)

• 3 SPI master, supports speed from 32.768M ~ 0.3695Mb/s

• 1 UART

• 18 GPIOs(programmable multi functions I/O), 6 XDs(can be GPIO or other functions)

• 6 PWM LED drivers output

General

• Embedded USB 2.0 transceiver and power-on reset circuit.

• Bus-power and self-power options

• Single 12MHz crystal input is required (embedded PLL function)

• 12 MHz clock output for external devices.

• Single 5V power supply with embedded 5V to 3.3V regulator.

• Auto detection for high-speed/full-speed

• 3.3V digital I/O pads with 5V tolerance

• Compliant with USB IF certification requirements.

• QFN-64 package (7.5 x 7.5 mm)




  Specifications

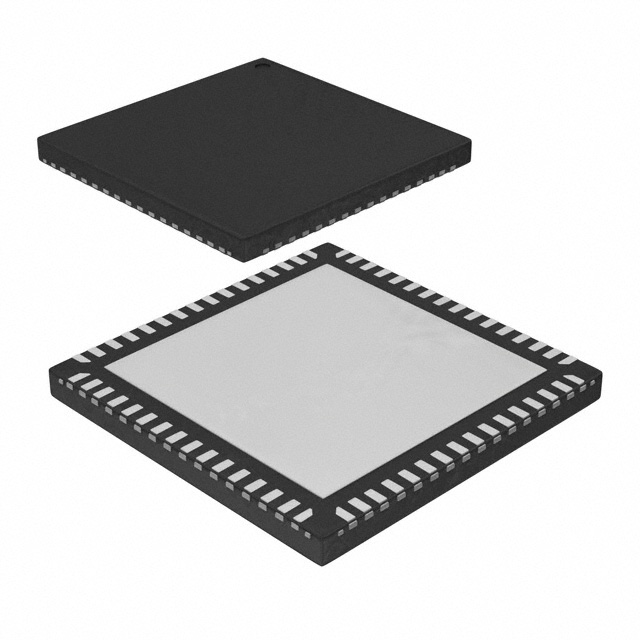

Actual product photos

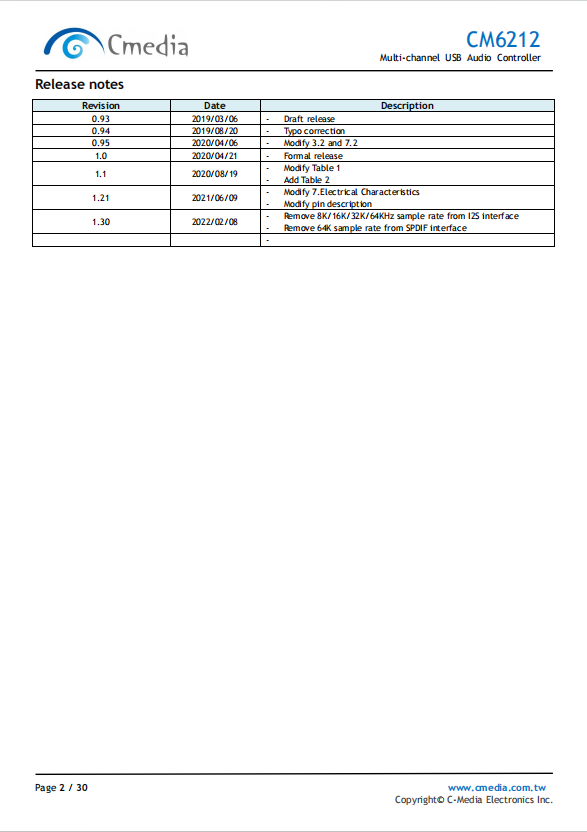

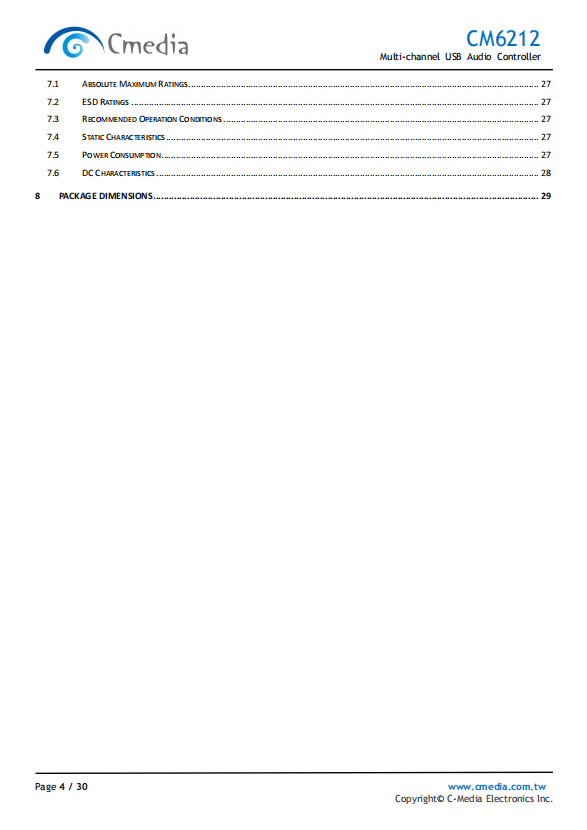

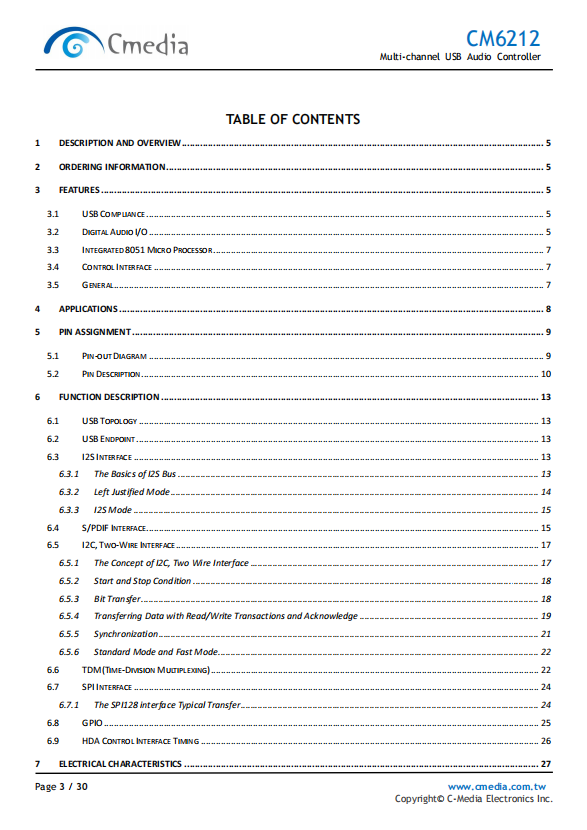

Product Data Book：

For more product information, please download the PDF
