Product Descriptions

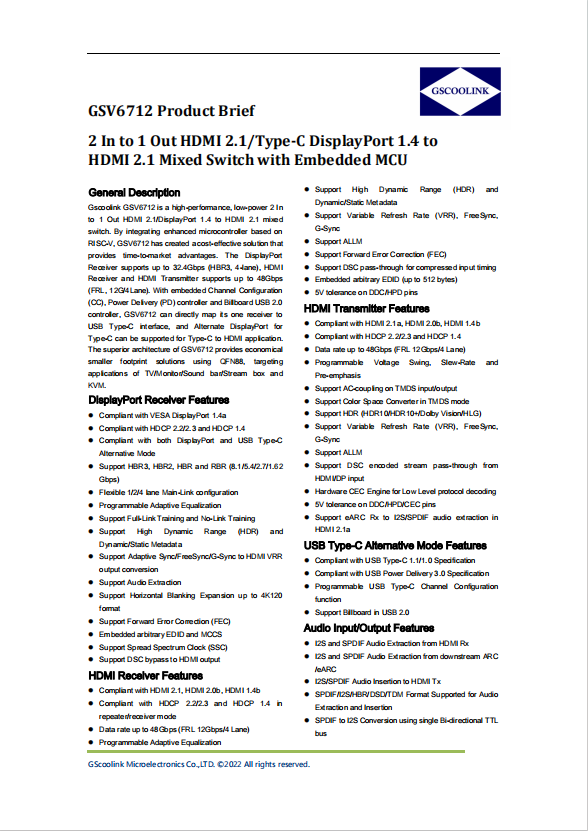

Gscoolink GSV6712 is a high-performance, low-power 2 In to 1 Out HDMI 2.1/DisplayPort 1.4 to HDMI 2.1 mixed switch. By integrating enhanced microcontroller based on RISC-V, GSV6712 has created a cost-effective solution that provides time-to-market advantages. The DisplayPort Receiver supports up to 32.4Gbps (HBR3, 4-lane), HDMI Receiver and HDMI Transmitter supports up to 48Gbps (FRL, 12G/4Lane). With embedded Channel Configuration (CC), Power Delivery (PD) controller and Billboard USB 2.0 controller, GSV6712 can directly map its one receiver to USB Type-C interface, and Alternate DisplayPort for Type-C can be supported for Type-C to HDMI application. The superior architecture of GSV6712 provides economical smaller footprint solutions using QFN88, targeting applications of TV/Monitor/Sound bar/Stream box and KVM.

Product Features

DisplayPort Receiver Features

? Compliant with VESA DisplayPort 1.4a

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Compliant with both DisplayPort and USB Type-C Alternative Mode

? Support HBR3, HBR2, HBR and RBR (8.1/5.4/2.7/1.62 Gbps)

? Flexible 1/2/4 lane Main-Link configuration

? Programmable Adaptive Equalization

? Support Full-Link Training and No-Link Training

? Support High Dynamic Range (HDR) and Dynamic/Static Metadata

? Support Adaptive Sync/FreeSync/G-Sync to HDMI VRR output conversion

? Support Audio Extraction

? Support Horizontal Blanking Expansion up to 4K120 format

? Support Forward Error Correction (FEC)

? Embedded arbitrary EDID and MCCS

? Support Spread Spectrum Clock (SSC)

? Support DSC bypass to HDMI output

HDMI Receiver Features

? Compliant with HDMI 2.1, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4 in repeater/receiver mode

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Adaptive Equalization

? Support High Dynamic Range (HDR) and Dynamic/Static Metadata

? Support Variable Refresh Rate (VRR), FreeSync, G-Sync

? Support ALLM

? Support Forward Error Correction (FEC)

? Support DSC pass-through for compressed input timing

? Embedded arbitrary EDID (up to 512 bytes)

? 5V tolerance on DDC/HPD pins

HDMI Transmitter Features

? Compliant with HDMI 2.1a, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Voltage Swing, Slew-Rate and Pre-emphasis

? Support AC-coupling on TMDS input/output

? Support Color Space Converter in TMDS mode

? Support HDR (HDR10/HDR10+/Dolby Vision/HLG)

? Support Variable Refresh Rate (VRR), FreeSync, G-Sync

? Support ALLM

? Support DSC encoded stream pass-through from HDMI/DP input

? Hardware CEC Engine for Low Level protocol decoding

? 5V tolerance on DDC/HPD/CEC pins

? Support eARC Rx to I2S/SPDIF audio extraction in HDMI 2.1a

USB Type-C Alternative Mode Features

? Compliant with USB Type-C 1.1/1.0 Specification

? Compliant with USB Power Delivery 3.0 Specification

? Programmable USB Type-C Channel Configuration function

? Support Billboard in USB 2.0

Audio Input/Output Features

? I2S and SPDIF Audio Extraction from HDMI Rx

? I2S and SPDIF Audio Extraction from downstream ARC /eARC

? I2S/SPDIF Audio Insertion to HDMI Tx

? SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion

? SPDIF to I2S Conversion using single Bi-directional TTL bus

Specifications
