Product Descriptions

Gscoolink GSV6702 is a high-performance, low-power 2 In to 1 Out HDMI 2.1 repeater. By integrating enhanced microcontroller based on RISC-V, GSV6702 has created a cost-effective solution that provides time-to-market

advantages. HDMI Receiver and HDMI Transmitter support up to 48Gbps (FRL, 12G/4Lane). The superior architecture of GSV6702 provides economical smaller footprint solutions using QFN88, targeting applications of Consumer Switch and KVM.

Product Features

HDMI Receiver Features

? Compliant with HDMI 2.1, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4 in repeater/receiver mode

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Adaptive Equalization

? Support High Dynamic Range (HDR) and Dynamic/Static Metadata

? Support Variable Refresh Rate (VRR), FreeSync,G-Sync

? Support ALLM

? Support Forward Error Correction (FEC)

? Support DSC pass-through for compressed input timing

? Embedded arbitrary EDID (up to 512 bytes)

? 5V tolerance on DDC/HPD pins

HDMI Transmitter Features

? Compliant with HDMI 2.1a, HDMI 2.0b, HDMI 1.4b

? Compliant with HDCP 2.2/2.3 and HDCP 1.4

? Data rate up to 48Gbps (FRL 12Gbps/4 Lane)

? Programmable Voltage Swing, Slew-Rate and Pre-emphasis

? Support AC-coupling on TMDS input/output

? Support Color Space Converter in TMDS mode

? Support HDR (HDR10/HDR10+/Dolby Vision/HLG)

? Support Variable Refresh Rate (VRR), FreeSync, G-Sync

? Support ALLM

? Support DSC encoded stream pass-through from

HDMI/DP input

? Hardware CEC Engine for Low Level protocol decoding

? 5V tolerance on DDC/HPD/CEC pins

? Support eARC Rx to I2S/SPDIF audio extraction in HDMI 2.1a

Audio Input/Output Features

? I2S and SPDIF Audio Extraction from HDMI Rx

? I2S and SPDIF Audio Extraction from downstream ARC /eARC

? I2S/SPDIF Audio Insertion to HDMI Tx

? SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion

? SPDIF to I2S Conversion using single Bi-directional TTL bus

System Features

? Optional External MCU (via I2C)/ Internal MCU mode

? Embedded MCU and External Flash

? External pins of Flash QSPI interface

? External 25MHz Crystal required

? Available Pins for UART/Timer/GPIO control from embedded MCU

? Mailbox feature for external MCU access on chip function status

? Temperature Sensor Monitoring Circuit

Specifications

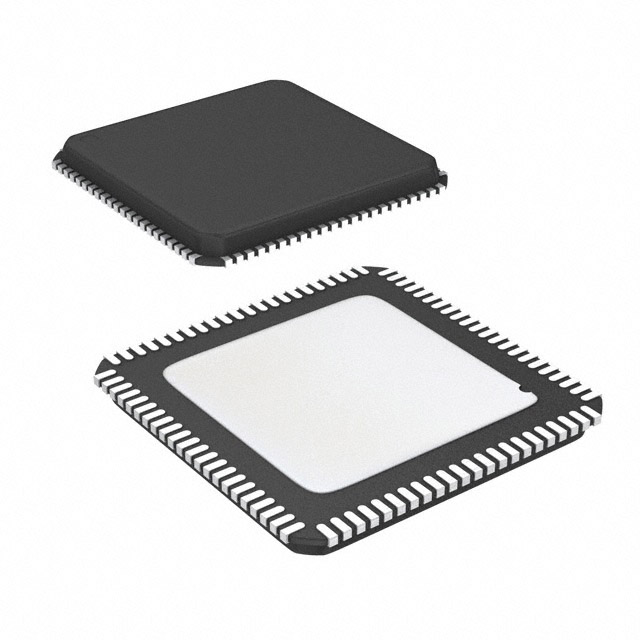

Actual product photos

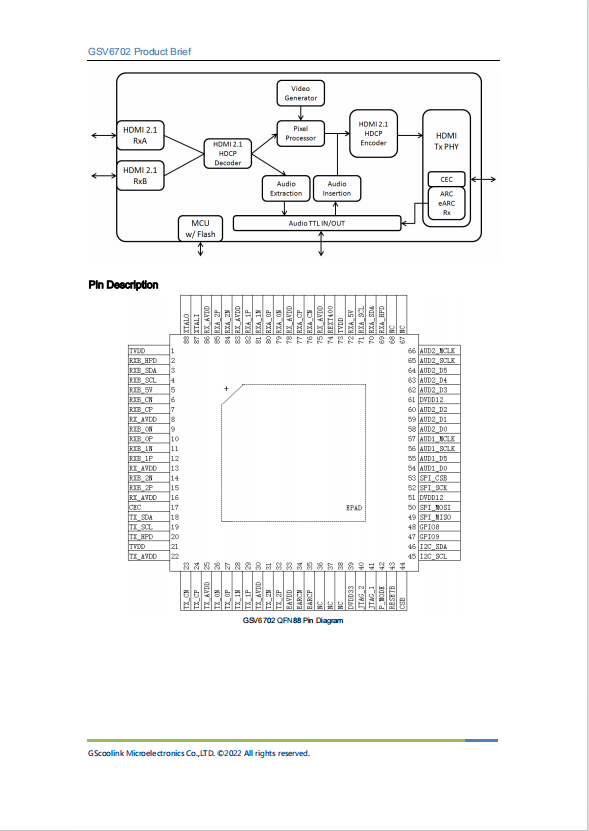

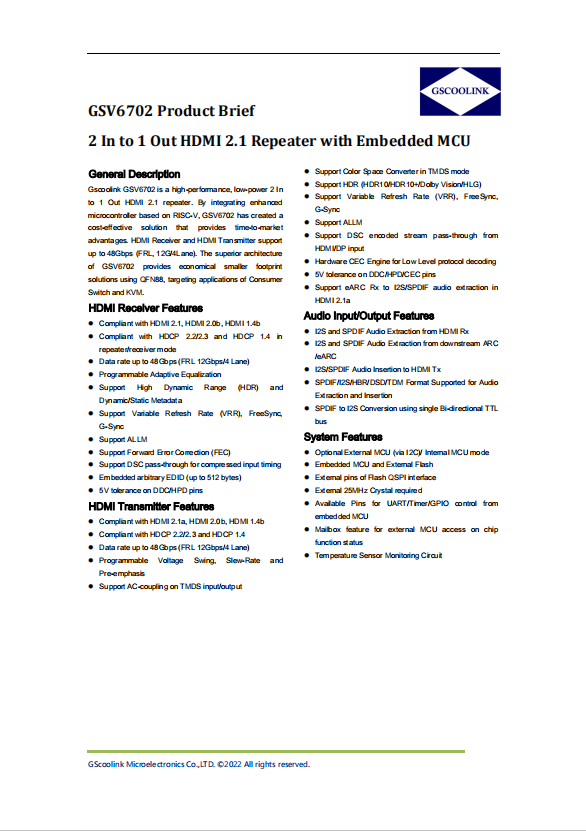

Product Data Book：
