Product Descriptions

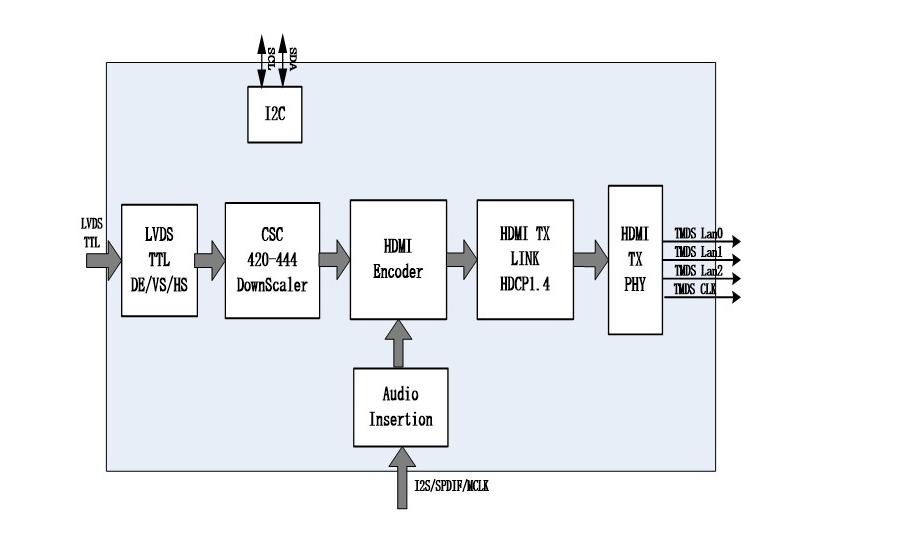

·GSV1016 is a TX transmitter compatible with HDMI1.4/2.0, with an LVDS/TTL data bus.
·Supports HDCP1.4.
·For audio input and output, GSV1016 supports 8-channel I2S/2-Channels/PDIF/TDM.
·The maximum processing pixel clock frequency for HDMI input is 600MHz.
·Video resolution support 4kx2k@60hz 4: 4:4 8-bit.
·The maximum processing audio sampling frequency is 8 channels of 192KHz.
Product Applications
? Matrix
? Video Matrix
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-GSV1016 |
| Type: | HDMI bridging chip |
| Manufactor | GSCoolink |
| DC | Standard |
| Describe | NEW |

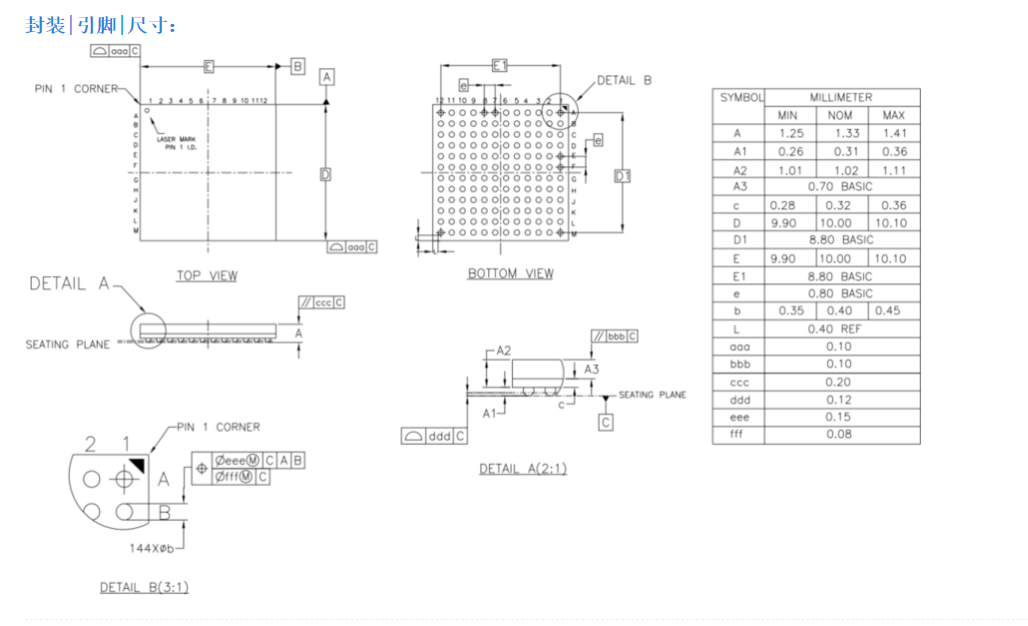

| Supplier Device Packaging | BGA144 |
| Package | TRAY |
| HDMI resolution | 4K@30Hz |
| Characteristic | TTL/LVDS input |
| Product application | HDMI bridging |
